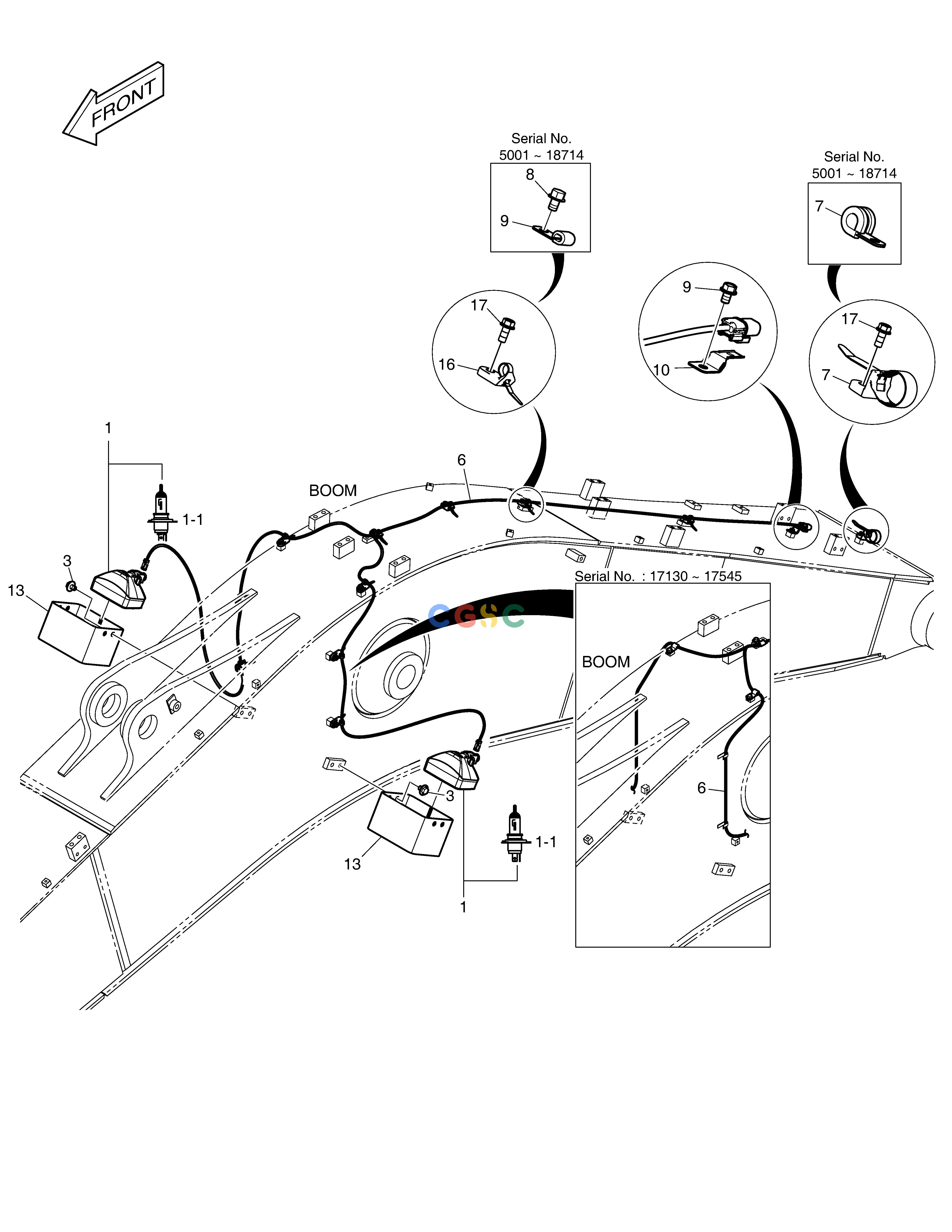

斗山零件查询ELECTRIC PARTS - WORKING LAMP DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1016 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044917
|
[-] |
ELECTRIC PARTS;WORKING LAMP
|
|
| -. |
301005-01586
|
[-] |
|
|
| 1. |
301005-00132
|
[2] |
|
|
| 1-1. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 10. |
2197-1660
|
[1] |
BRACKET
|
|
| 13. |
110921-00091
|
[2] |
|
|
| 16. |
120402-00440
|
[10] |
CLIP
|
|
| 17. |
120106-00596
|
[11] |
BOLT
|
|
| 3. |
DS0025019
|
[4] |
BOLT
|
|
| 6. |
310207-00539
|
[1] |
|
|
| 7. |
124-00208D2
|
[1] |
CLAMP
|
|
| 7. |
120402-00439
|
[1] |
CLIP
|
|
| 8. |
2124-1509D1
|
[6] |
CLIP
|
|
| 8. |
2124-1509D1
|
[9] |
CLIP
|
|
| 9. |
K1001029
|
[1] |
BOLT
|
|
| 9. |
K1001029
|
[7] |
BOLT
|
|
| 9. |
K1001029
|
[11] |
BOLT
|
|
