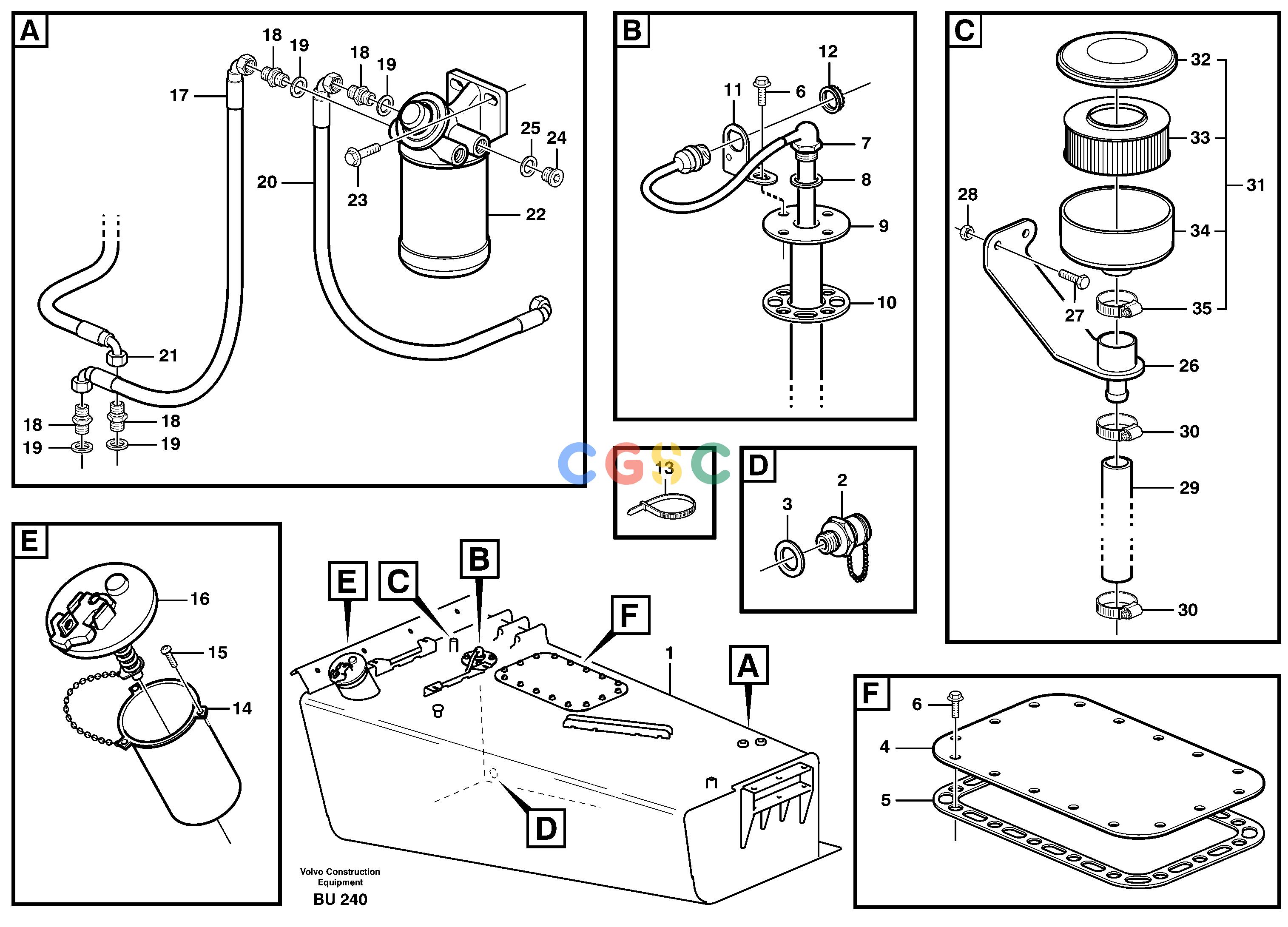

沃尔沃零件查询A25D Fuel tank, fuel pipesS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11121161
|
[1] |
Fuel tank
|
|
| 2. |
VOE11054692
|
[1] |
Valve
|
|
| 3. |
VOE949329
|
[1] |
Gasket
|
|
| 4. |
VOE11113840
|
[1] |
Hatch
|
|
| 5. |
VOE11196531
|
[1] |
Gasket
|
|
| 6. |
VOE13946173
|
[20] |
Screw
|
|
| 7. |
VOE11113316
|
[1] |
Hexagon screw
|
SE2303
|
| 8. |
VOE948885
|
[1] |
Plane gasket
|
|
| 9. |
VOE11118191
|
[1] |
Anchorage
|
|
| 10. |
VOE11113379
|
[1] |
Gasket
|
|
| 11. |
VOE3988328
|
[1] |
Bracket
|
|
| 12. |
VOE3963413
|
[1] |
Ring
|
|
| 13. |
VOE14016673
|
[2] |
Strip clamp
|
|
| 14. |
VOE11118550
|
[1] |
Strainer
|
|
| 15. |
VOE972264
|
[3] |
Six point socket screw
|
|
| 16. |
VOE11118857
|
[1] |
Filler cap
|
|
| |
VOE11988188
|
[1] |
Gasket
|
|
| 17. |
VOE11117525
|
[1] |
Fuel hose
|
|
| 18. |
VOE14213266
|
[4] |
Fitting
|
|
| 19. |
VOE948883
|
[4] |
Gasket
|
|
| 20. |
VOE11117529
|
[1] |
Fuel hose
|
|
| 21. |
VOE11120305
|
[1] |
Fuel pipe
|
|
| 22. |
VOE11110348
|
[1] |
Water separator
|
|
| |
VOE11708581
|
[1] |
Sensor
|
|
| 23. |
VOE60113094
|
[2] |
Flange screw
|
|
| 24. |
VOE13966143
|
[2] |
Plug
|
|
| 25. |
VOE948883
|
[2] |
Gasket
|
|
| 26. |
VOE11119375
|
[1] |
Bracket
|
|
| 27. |
VOE13945444
|
[2] |
Screw
|
|
| 28. |
VOE948645
|
[2] |
Flange lock nut
|
|
| 29. |
VOE983136
|
[REQ] |
Hose
|
L=750
|
| 30. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 31. |
VOE16878138
|
[1] |
Air filter
|
|
| 32. |
|
[1] |
Cover
|
|
| 33. |
VOE11707077
|
[1] |
Filter insert
|
|
| 34. |
|
[1] |
Housing
|
|
| 35. |
VOE943477
|
[1] |
Hose clamp
|
|
