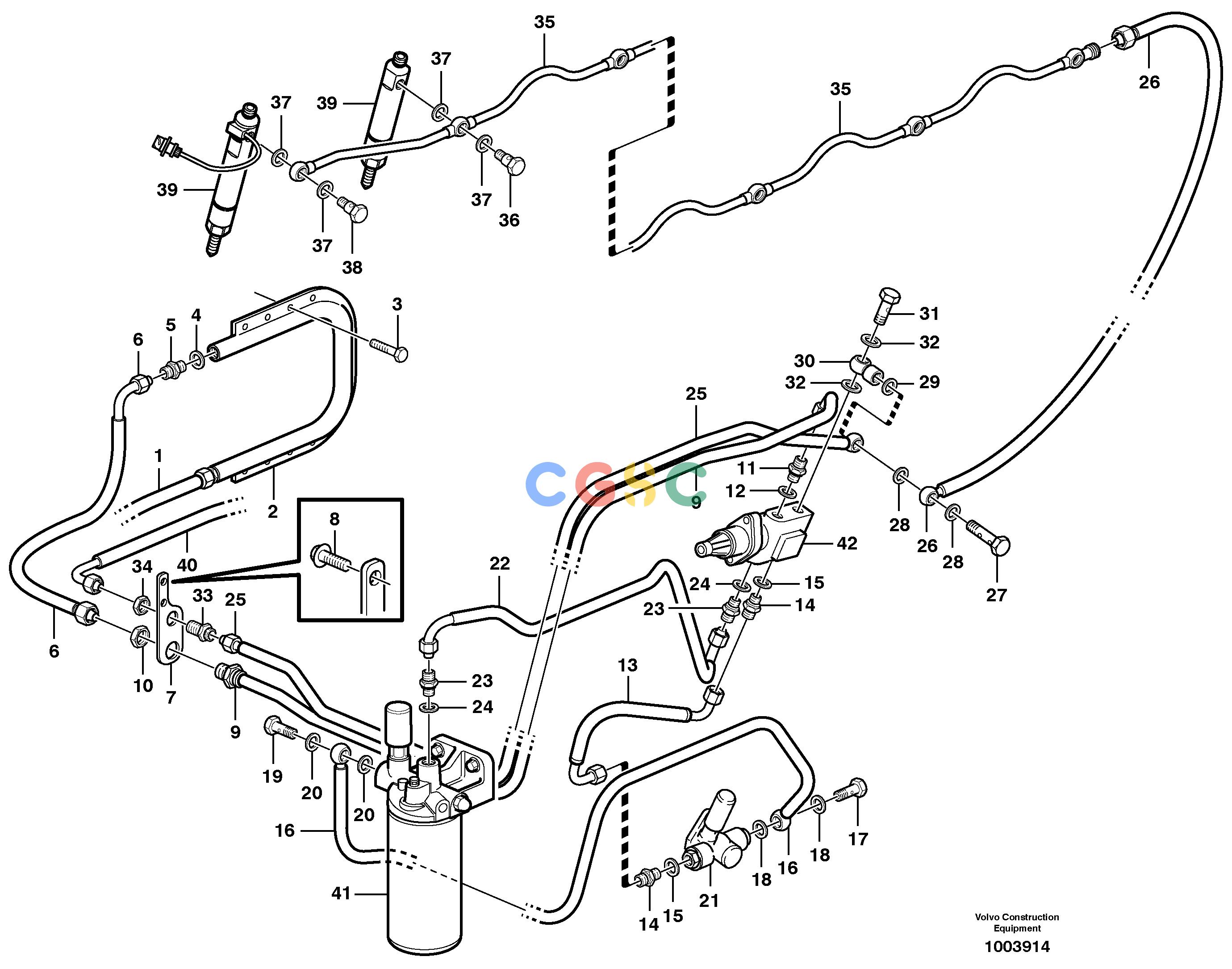

沃尔沃零件查询A25D Fuel pipes, radiator - injection pumpS/N -12999, - 61118 USA8188151, 8188152-37090VOE8188151NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
Fuel pipe
|
|
| 2. |
VOE8170282
|
[1] |
Radiator
|
|
| 3. |
VOE13955272
|
[8] |
Screw
|
|
| 4. |
VOE13945653
|
|
Plane gasket
|
|
| 5. |
VOE13946602
|
|
Nipple
|
|
| 6. |
VOE11117531
|
|
Fuel hose
|
|
| 7. |
VOE11031480
|
[1] |
Anchorage
|
|
| 8. |
|
[2] |
Flange screw
|
|
| 9. |
VOE11031464
|
[1] |
Fuel pipe
|
|
| 10. |
VOE957020
|
[1] |
Hexagon nut
|
|
| 11. |
VOE13946602
|
[1] |
Nipple
|
|
| 12. |
VOE976929
|
[1] |
Gasket
|
|
| 13. |
VOE11031407
|
[1] |
Fuel pipe
|
|
| 14. |
VOE13946602
|
[2] |
Nipple
|
|
| 15. |
VOE976929
|
[2] |
Gasket
|
|
| 16. |
VOE11162651
|
[1] |
Fuel hose
|
|
| 17. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 18. |
VOE976929
|
[2] |
Gasket
|
|
| 19. |
VOE941686
|
[1] |
Hollow screw
|
|
| 20. |
VOE976930
|
[2] |
Gasket
|
|
| 21. |
|
[1] |
Feed pump
|
|
| 22. |
VOE11162515
|
[1] |
Fuel hose
|
|
| 23. |
VOE13946602
|
[2] |
Nipple
|
|
| 24. |
VOE976929
|
[2] |
Gasket
|
|
| 25. |
VOE11162585
|
[1] |
Fuel hose
|
|
| 26. |
VOE11129087
|
[1] |
Fuel pipe
|
L = 1100 MM
|
| 27. |
VOE7074033
|
[1] |
Hollow screw
|
|
| 28. |
VOE947620
|
[2] |
Gasket
|
|
| 29. |
VOE976929
|
[1] |
Gasket
|
|
| 30. |
VOE190390
|
[1] |
Nipple
|
|
| 31. |
VOE3094570
|
[1] |
Overflow valve
|
|
| 32. |
VOE976929
|
[2] |
Gasket
|
|
| 33. |
VOE957083
|
[1] |
Nipple
|
|
| 34. |
VOE957019
|
[1] |
Hexagon nut
|
|
| 35. |
VOE11162523
|
[1] |
Leak-off line
|
|
| 36. |
VOE7074033
|
[5] |
Hollow screw
|
|
| 37. |
VOE947620
|
[12] |
Gasket
|
|
| 38. |
VOE3978714
|
[1] |
Hollow screw
|
|
| 39. |
|
[6] |
Injector
|
|
| 40. |
|
|
Fuel pipe
|
|
| 41. |
|
[1] |
Fuel filter
|
|
| 42. |
VOE3095395
|
[1] |
Stop control kit
|
|
