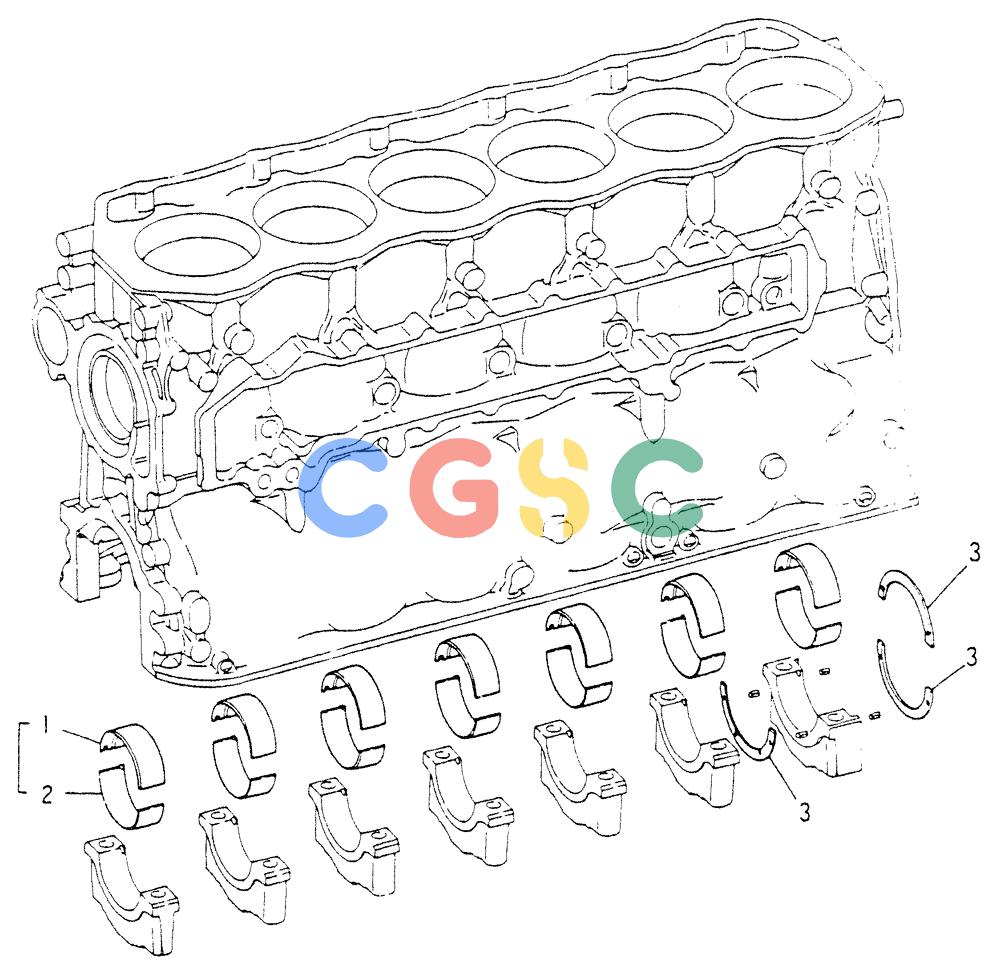

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE FOR K904C, K907B, K907C & YS750-2 (1/77-12/06) (01-002) - CRANKSHAFT BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
588 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME999199 | [1] | SET OF STD MAIN BRGS | KOBMAIN BEARING SET STD Superseded by part number: VAME996502 |
| 1-3. | VAME999200 | [1] | SET OF STD MAIN BRGS | KOBMAIN BEARING SET US 0.25 |
| 1-4. | VAME999201 | [1] | SET OF STD MAIN BRGS | KOBMAIN BEARING SET US 0.50 |
| 1-5. | VAME999202 | [1] | SHEET METAL | KOBMAIN BEARING SET US 0.75 |
| 1-6. | VAME999203 | [1] | SET | KOBMAIN BEARING SET US 1.00 |
| 1. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING MAIN UPPER STD (ME030903) |
| 2. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING MAIN LOWER STD (ME030903) |
| 3. | VAME031059 | [3] | PLATE | KOBPLATE,THRUST STD |
| 3. | VAME031157 | [1] | PLATE | KOBPLATE,THRUST OS 0.15 |
| 3. | VAME031158 | [1] | PLATE PLATE,THRUST OS 0.35 | PLATE PLATE,THRUST OS 0.35 |
| 3. | VAME031159 | [1] | PLATE PLATE,THRUST OS 0.45 | PLATE PLATE,THRUST OS 0.45 |
