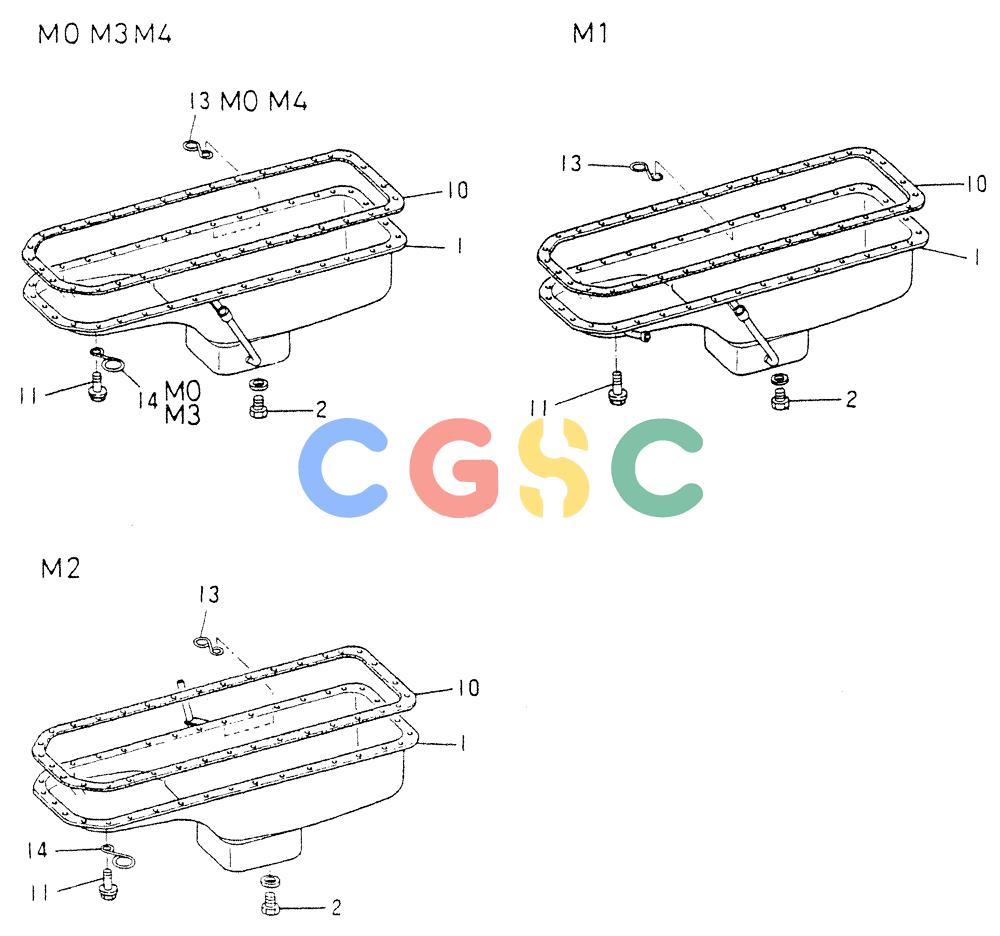

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE FOR K904C, K907B, K907C & YS750-2 (1/77-12/06) (01-003) - OIL PAN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
147 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3181392100 | [1] | ENGINE OIL PAN | KOBPAN, OIL (FOR M0, M3 & M4 ONLY) |
| 1. | VAME039415 | [1] | PAN, OIL (FOR M1 ONLY) | |
| 1. | VA3181390201 | [1] | PAN, OIL (FOR M2 ONLY) | |
| 2. | VAMH037126 | [1] | PLUG,18mm OD x 1.5 Thd Pitch | KOBPLUG |
| . . | VAMH035018 | [1] | GASKET | KOBGASKET |
| 10. | VA3181394100 | [1] | GASKET | KOBGASKET, OIL PAN Superseded by part number: VAME034652 |
| 11. | VAMF140225 | [35] | BOLT | KOBBOLT, FLANGE 8x20, Start Year: 01-DEC-82 |
| 11. | VAMF241253 | [35] | SCREW | KOBBOLT, W/WSR 8x20 (M0,M1&M2), Years: -01-NOV-82 |
| 13. | VAMH021013 | [1] | CLAMP CLAMP, FOR M0,M1,M2&M4 | CLAMP CLAMP, FOR M0,M1,M2&M4 |
| 14. | VA3184391100 | [1] | CLAMP CLAMP, FOR M0,M2,&M3 | CLAMP CLAMP, FOR M0,M2,&M3 |
