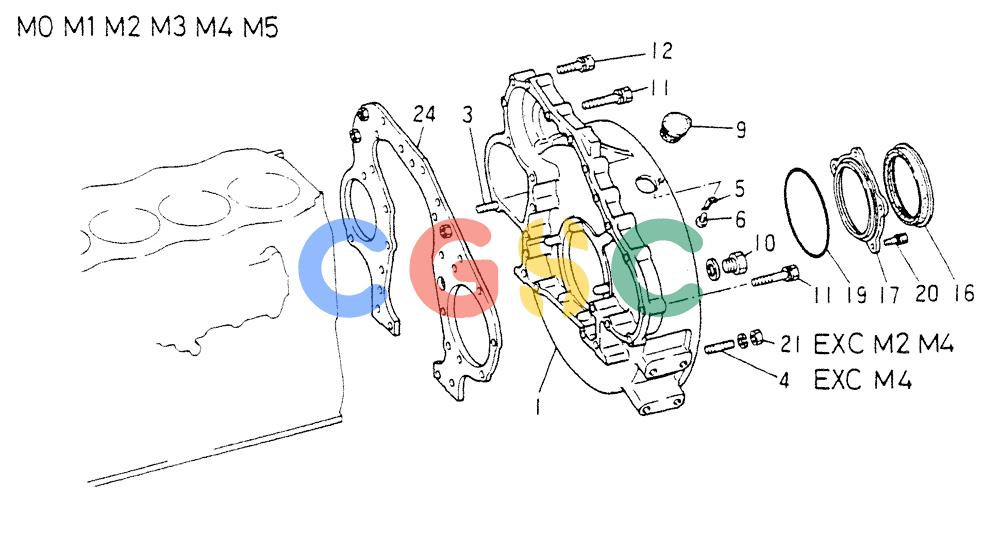

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE FOR K904C, K907B, K907C & YS750-2 (1/77-12/06) (01-004) - FLYWHEEL HOUSING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
761 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME031977 | [1] | HOUSING FLYWHEEL HOUSING ASSY (FOR M0,M2,M3 ONLY) | HOUSING FLYWHEEL HOUSING ASSY (FOR M0,M2,M3 ONLY) |
| 1-6. | VAME039127 | [1] | FLYWHEEL HOUSING ASSY (FOR M1 ONLY) | |
| 1-6. | VAME039126 | [1] | FLYWHEEL HOUSING ASSY (FOR M4 ONLY) | |
| 1-6. | VAME031979 | [1] | FLYWHEEL HOUSING ASSY (FOR M5 ONLY) | |
| 1. | VAME031980 | [1] | HOUSING, FLYWHEEL, FOR M0,M2,M3,M4,M5 | |
| 1. | VAME039257 | [1] | HOUSING, FLYWHEEL (FOR M1 ONLY) | |
| 3. | VAMF404578 | [1] | STUD | KOBFOR STARTER 12x45 |
| 4. | VAMF404548 | [12] | STUD | KOBSTUD 10x30, FOR M0,M1,M2,M3 |
| 4. | VAMF404554 | [12] | 10x50, FOR M5 ONLY | |
| 5. | VAME031062 | [1] | POINTER | KOB |
| 6. | VAMF350047 | [1] | SCREW | KOBW/WSR 5x10 |
| 9. | VAME020359 | [1] | PLUG | KOBDUST Superseded by part number: VAME609555 |
| 10. | VAME031089 | [1] | PLUG | KOB |
| . . | VAMF660069 | [1] | PACKING | KOBGASKET 22 Superseded by part number: VAF420222000 |
| 11. | VAMF303376 | [9] | BOLT W/WSR 10x75 | BOLT W/WSR 10x75 |
| 12. | VAMF303373 | [7] | BOLT W/WSR 10x60 (FOR M0,M1 & M4 ONLY) | BOLT W/WSR 10x60 (FOR M0,M1 & M4 ONLY) |
| 16. | VAME031548 | [1] | SEAL | KOBOIL |
| 17. | VAME031898 | [1] | RETAINER | KOB |
| 19. | VA3110702401 | [1] | O-RING | KOBPACKING, RUBBER Superseded by part number: 3110702401 |
| 20. | VAMF243651 | [5] | BOLT | KOBW/WSR 8x20 |
| 21. | VAMF430006 | [12] | NUT | KOB10 (FOR M0,M1,M3 & M5) Superseded by part number: VAF230510000 |
| . . | VAMF150406 | [12] | WASHER, SPG 10 (FOR M0,M1,M3 & M5) | |
| 24. | VAME031480 | [1] | FRONT PLATE | KOBRE Superseded by part number: VAME071270 |
