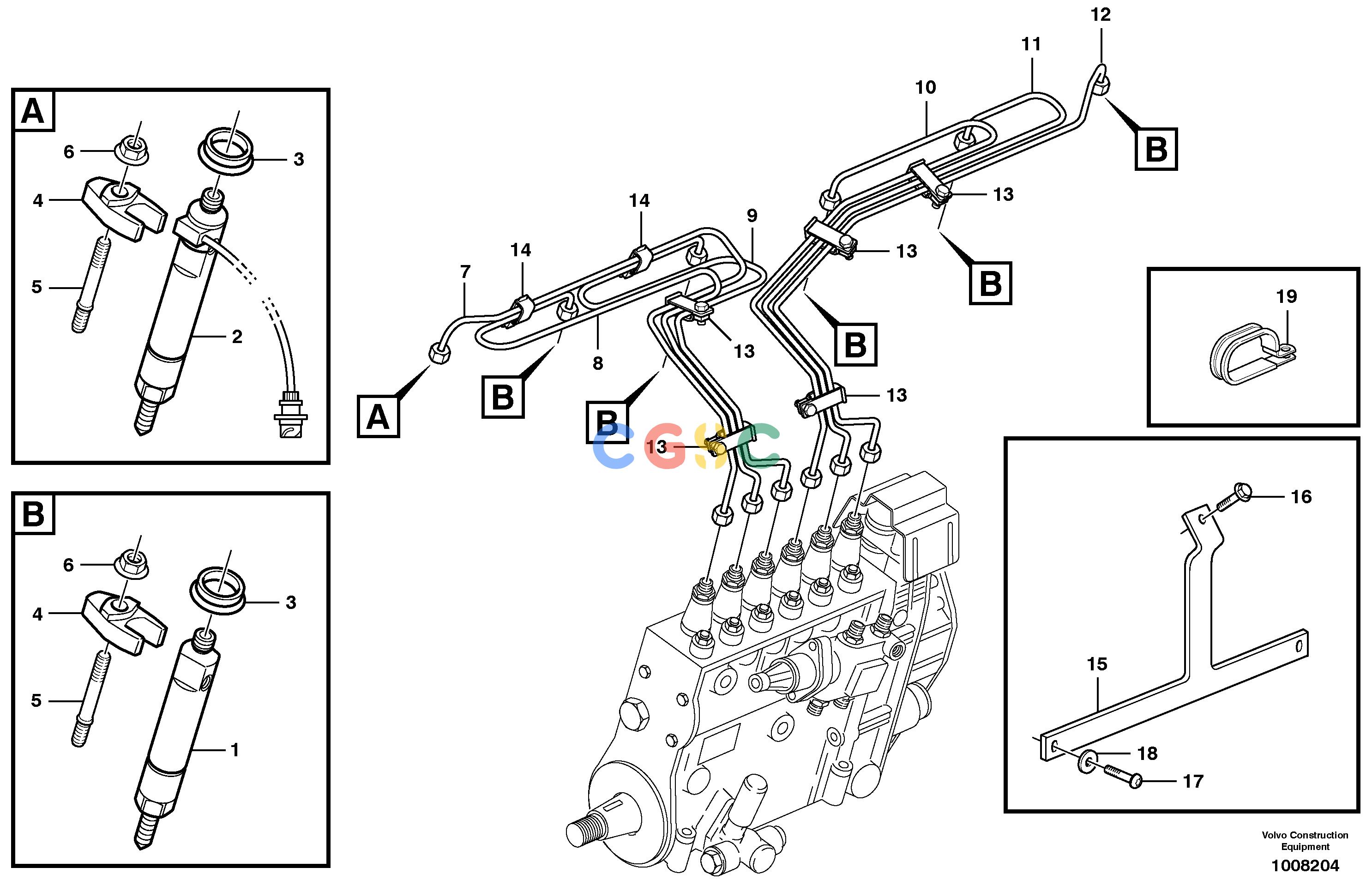

沃尔沃零件查询A25D Fuel lines, injectorsS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
766 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE8194094
|
[5] |
Injector
|
|
| 2. |
VOE11162407
|
[1] |
Injector
|
|
| 3. |
VOE469455
|
[6] |
Sealing ring
|
|
| 4. |
VOE469797
|
[6] |
Nozzle retainer
|
|
| 5. |
VOE11987549
|
[6] |
Stud
|
|
| 6. |
VOE13971095
|
[6] |
Flange nut
|
|
| |
VOE11129000
|
[1] |
Fuel pipe
|
|
| 7. |
VOE11129055
|
[1] |
Fuel pipe
|
|
| 8. |
VOE11129056
|
[1] |
Fuel pipe
|
|
| 9. |
VOE11129057
|
[1] |
Fuel pipe
|
|
| 10. |
VOE11129058
|
[1] |
Fuel pipe
|
|
| 11. |
VOE11129059
|
[1] |
Fuel pipe
|
|
| 12. |
VOE11129060
|
[1] |
Fuel pipe
|
|
| 13. |
VOE8194328
|
[5] |
Clamp
|
|
| 14. |
VOE8194327
|
[2] |
Clamp
|
|
| 15. |
VOE11129144
|
[1] |
Stay
|
|
| 16. |
VOE946934
|
[1] |
Flange screw
|
|
| 17. |
VOE940100
|
[2] |
Hexagon screw
|
|
| 18. |
VOE955893
|
[2] |
Plain washer
|
|
| 19. |
VOE8194352
|
[1] |
Clamp
|
|
