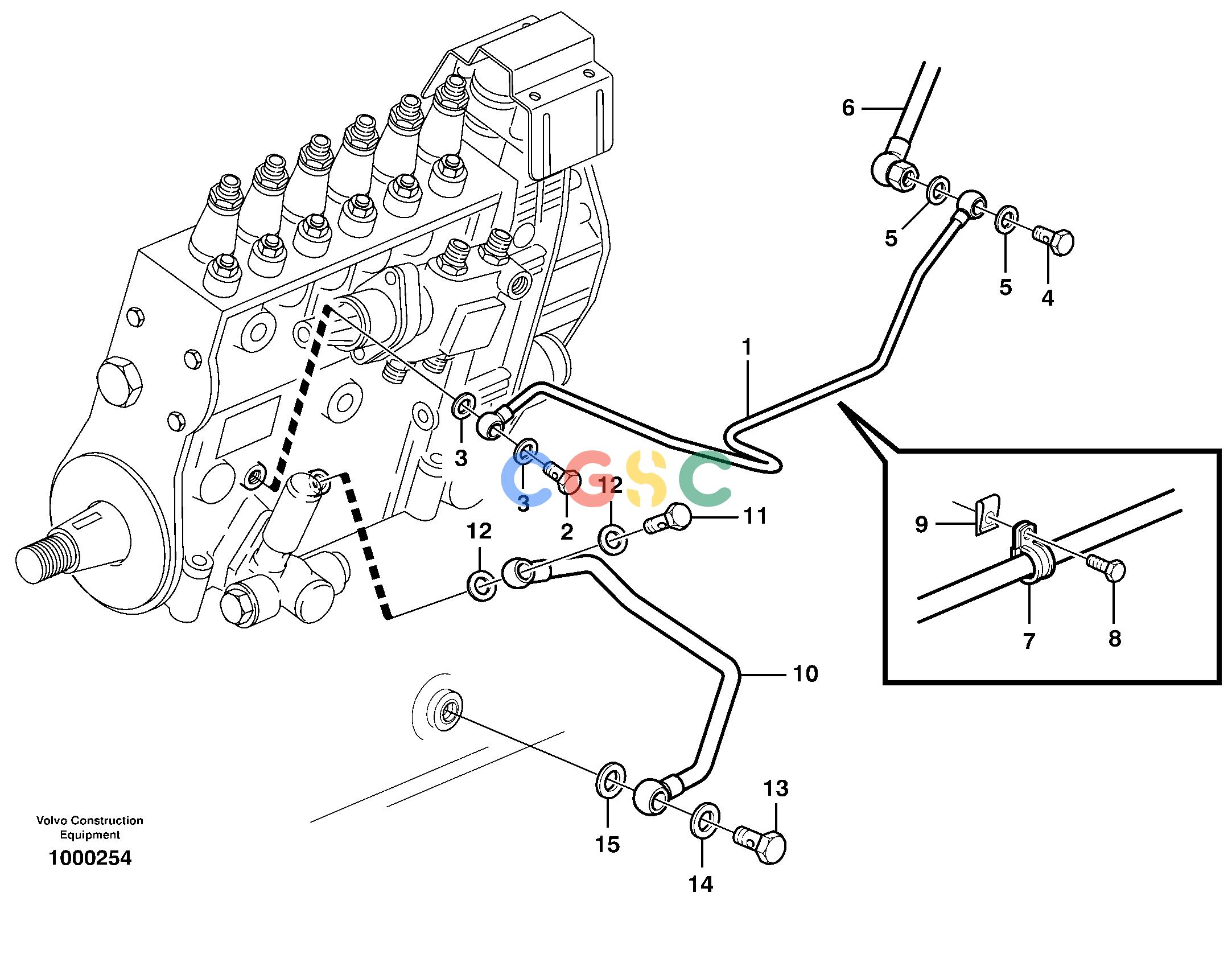

沃尔沃零件查询A25D Fuel system, oil pipeS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
189 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11162436
|
[1] |
Oil feed pipe
|
|
| 2. |
VOE7048634
|
[1] |
Hollow screw
|
|
| 3. |
VOE13947281
|
[2] |
Gasket
|
|
| 4. |
VOE968178
|
[1] |
Hollow screw
|
|
| 5. |
VOE13947282
|
[2] |
Gasket
|
|
| 6. |
|
[1] |
Oil pipe
|
|
| 7. |
VOE952623
|
[1] |
Clamp
|
|
| 8. |
VOE13946544
|
[1] |
Screw
|
|
| 9. |
VOE949921
|
[1] |
Spring nut
|
|
| 10. |
VOE11031492
|
[1] |
Oil pipe
|
|
| 11. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 12. |
VOE976929
|
[2] |
Gasket
|
|
| 13. |
VOE942007
|
[1] |
Hollow screw
|
|
| 14. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 15. |
VOE942703
|
[1] |
Gasket
|
|
