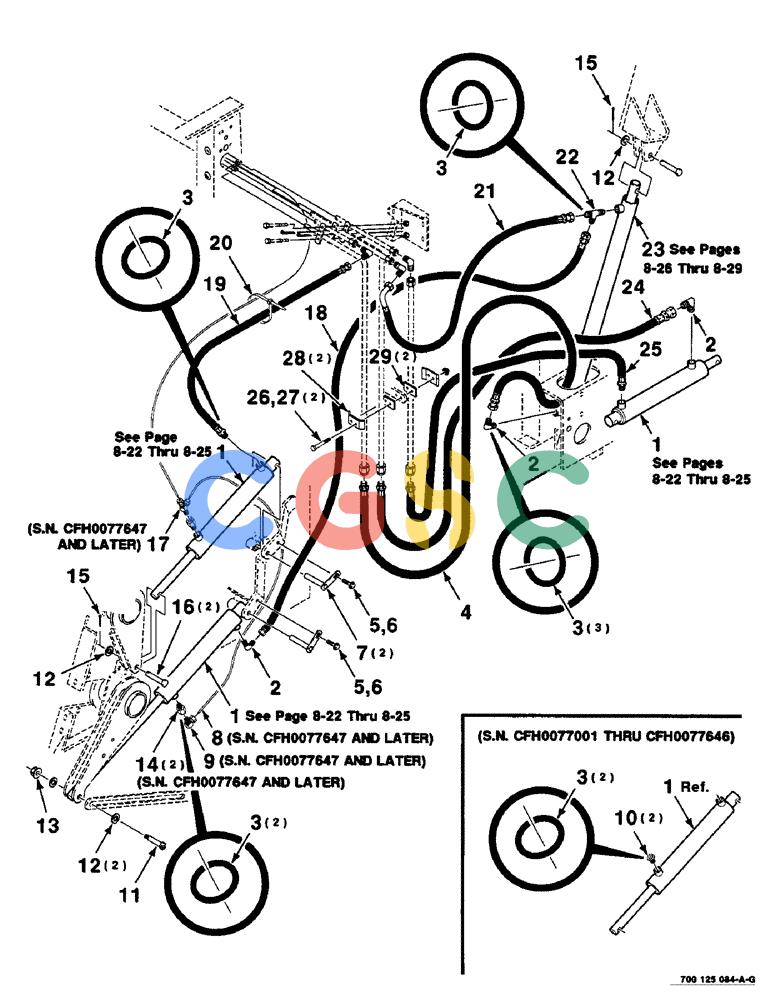

| 1. |
700707262
|
[3] |
CYLINDER
|
CAS
- hydraulic (S.N. CFH0077001 thru CFH0077005) Superseded by part number: 700712161
|
| . . |
700712161
|
[3] |
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke
|
IH
CYLINDER - hydraulic (S.N. CFH0077006 and later)
|
| 2. |
218-5105
|
[3] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
- 90° (Includes item 3) Superseded by part number: 76344, 72186128
|
| 3. |
738468
|
[9] |
O-RING
|
IH
|
| 4. |
7795487
|
[1] |
HOSE
|
HFI
- hydraulic
|
| 5. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 6. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 7. |
700118823
|
[2] |
PIN
|
IH
WA
|
| 8. |
700113862
|
[1] |
HOSE,50.00'
|
CAS
Line, , Lube 50 Foot Bulk 50.00'
|
| 9. |
746529
|
[1] |
ELBOW
|
CAS
- 90°
|
| 10. |
700709959
|
[2] |
BREATHER
|
CAS
(Includes item 3) (S.N. CFH0077001 thru CFH0077646)
|
| 11. |
700708797
|
[1] |
HEX SOC SCREW
|
CAS
SCREW - shoulder
|
| 12. |
396-21066
|
[4] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 13. |
231-5348
|
[1] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 14. |
218-5090
|
[2] |
ADAPTER
|
CAS
(Includes item 3)
|
| 15. |
432-1020
|
[2] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
|
| 16. |
700708068
|
[2] |
CLEVIS PIN,15.77mm OD x 68.66mm L
|
IH
|
| 17. |
700713394
|
[1] |
TEE
|
CAS
- male run
|
| 18. |
7796287
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 19. |
700707276
|
[1] |
HOSE
|
CAS
- hydraulic (Includes item 3)
|
| 20. |
L18337
|
[1] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 21. |
700707391
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 22. |
218-5243
|
[1] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
(Includes item 3) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 23. |
700710626
|
[1] |
CYLINDER
|
CAS
- hydraulic (S.N. CFH0077001 thru CFH0077005)
|
| . . |
700712159
|
[1] |
CYLINDER ASSY.
|
IH
CYLINDER - hydraulic (S.N. CFH0077006 and later)
|
| 24. |
7796204
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 25. |
700707399
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 26. |
413-536
|
[2] |
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
|
CAS
Hex, 5/16-18 X 2-1/4 C Superseded by part number: 86505972
|
| 27. |
231-5145
|
[2] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT - hex serrated flange, 5/16 inch NC Superseded by part number: 72187067, 145458
|
| 28. |
700116034
|
[2] |
CLAMP
|
HFI
|
| 29. |
700116114
|
[2] |
SHIM
|
HFI
|
