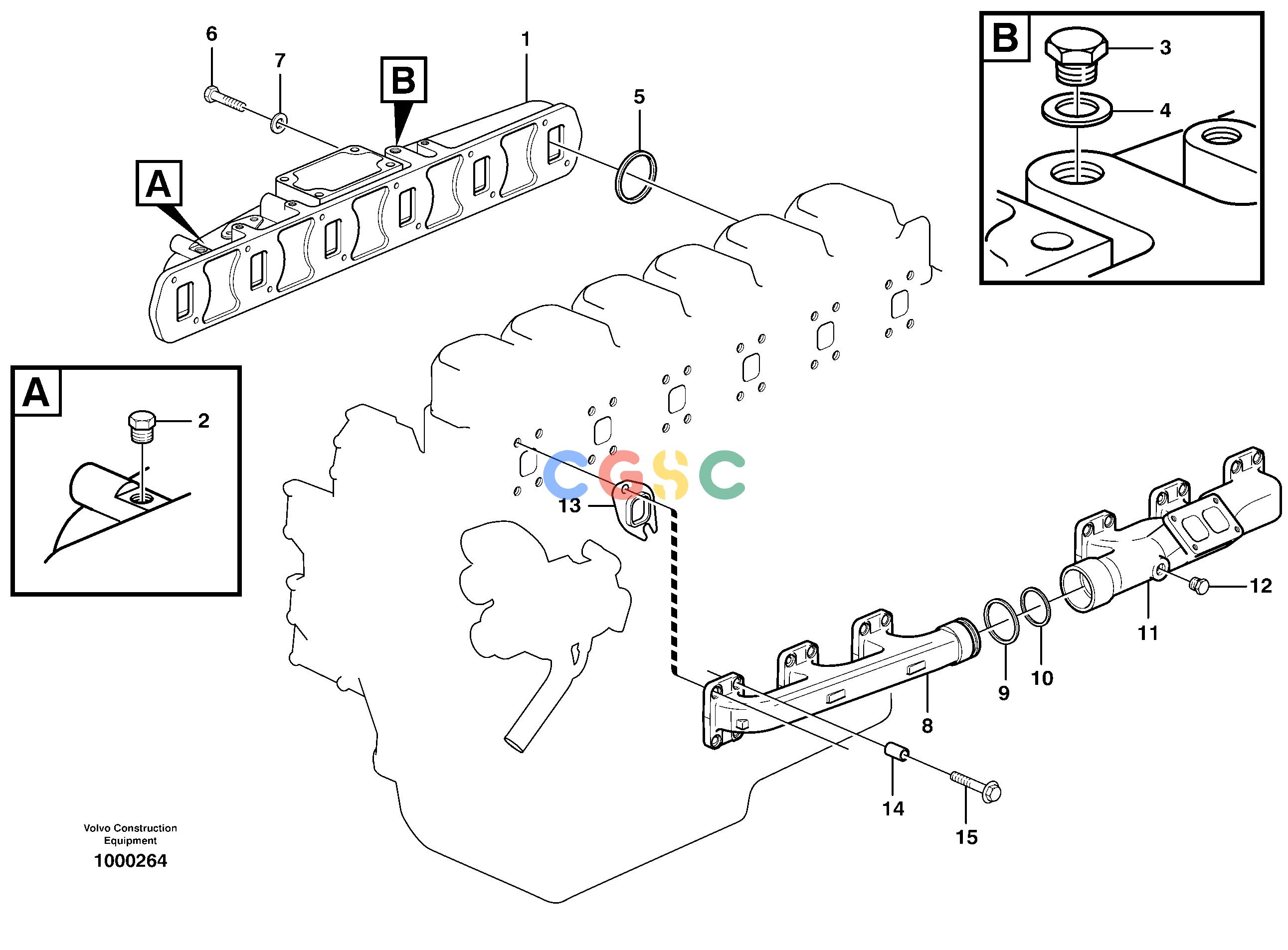

沃尔沃零件查询A25D Inlet manifold and exhaust manifoldS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
210 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031449
|
[1] |
Inlet pipe
|
|
| 2. |
VOE479979
|
[1] |
Plug
|
|
| 3. |
VOE960631
|
[1] |
Plug
|
|
| 4. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 5. |
VOE469829
|
[6] |
Sealing ring
|
|
| 6. |
VOE955526
|
[8] |
Hexagon screw
|
L = 51 MM
|
| |
VOE955533
|
[2] |
Hexagon screw
|
L = 102 MM
|
| |
VOE959794
|
[2] |
Hexagon screw
|
|
| 7. |
VOE192288
|
[12] |
Washer
|
|
| |
VOE8194518
|
[1] |
Exh Manifold
|
|
| 8. |
VOE8194525
|
[1] |
Exhaust manifold
|
|
| 9. |
VOE1545109
|
[2] |
Sealing ring
|
|
| 10. |
VOE471219
|
[1] |
Sealing ring
|
|
| 11. |
VOE8194522
|
[1] |
Exhaust pipe
|
|
| 12. |
VOE13947814
|
[1] |
Plug
|
|
| 13. |
VOE479107
|
[6] |
Gasket
|
|
| 14. |
VOE8194514
|
[24] |
Spacer
|
L=9MM
|
| 15. |
VOE8194513
|
[24] |
Flange screw
|
|
