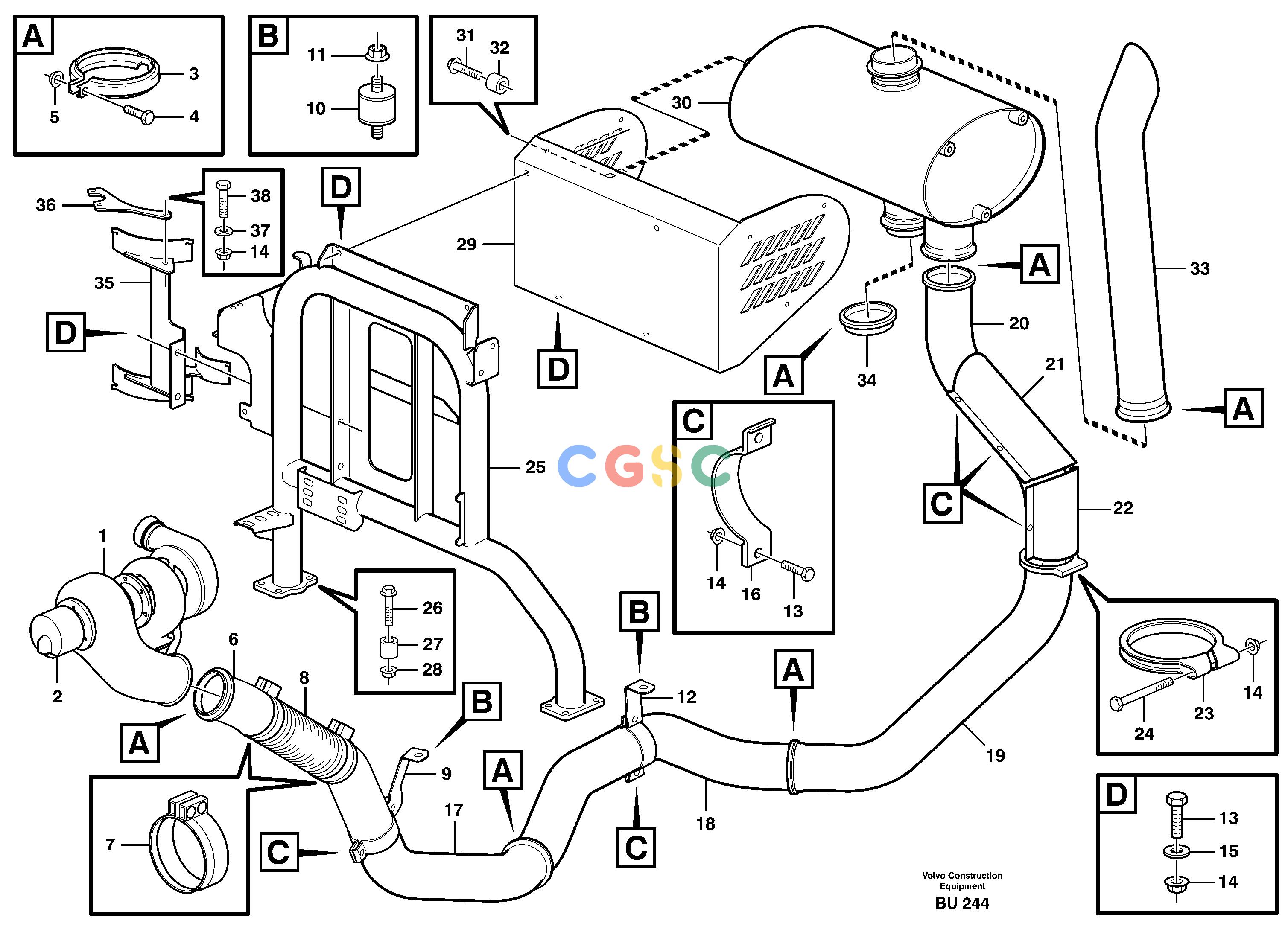

沃尔沃零件查询A25D Exhaust system, silencerS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
Turbocharger
|
|
| 2. |
|
|
Exhaust brake
|
|
| 3. |
VOE1624612
|
[6] |
Clamp
|
|
| 4. |
VOE11121312
|
[6] |
Screw
|
|
| 5. |
VOE948645
|
[6] |
Flange lock nut
|
|
| 6. |
VOE11113956
|
[1] |
Exhaust pipe
|
|
| 7. |
VOE3943850
|
[1] |
Clamp
|
|
| 8. |
VOE1609345
|
[1] |
Hose
|
|
| 9. |
VOE11121471
|
[1] |
Anchorage
|
|
| 10. |
VOE11110276
|
[2] |
Rubber cushion
|
|
| 11. |
VOE971096
|
[2] |
Flange nut
|
|
| 12. |
VOE11121474
|
[1] |
Anchorage
|
|
| 13. |
VOE13965185
|
[12] |
Screw
|
|
| |
VOE60113094
|
[2] |
Flange screw
|
|
| 14. |
VOE13971098
|
[16] |
Flange nut
|
|
| 15. |
VOE11055613
|
[12] |
Plain washer
|
|
| 16. |
VOE967706
|
[6] |
Clamp
|
|
| 17. |
VOE11119564
|
[1] |
Exhaust pipe
|
|
| 18. |
VOE11121652
|
[1] |
Exhaust pipe
|
|
| 19. |
VOE11119545
|
[1] |
Exhaust pipe
|
|
| 20. |
VOE11119546
|
[1] |
Exhaust pipe
|
|
| 21. |
VOE11120895
|
[1] |
Protecting plate
|
|
| 22. |
VOE11120896
|
[1] |
Protecting plate
|
|
| 23. |
VOE1589141
|
[1] |
Clamp
|
|
| 24. |
VOE13965189
|
[1] |
Screw
|
|
| 25. |
VOE11190057
|
[1] |
Bow
|
|
| 26. |
VOE965195
|
[8] |
Flange screw
|
|
| 27. |
VOE60113600
|
[8] |
Spacer sleeve
|
|
| 28. |
VOE971099
|
[8] |
Flange lock nut
|
|
| |
|
|
None
|
|
| |
VOE11119094
|
[1] |
Silencer
|
|
| 29. |
VOE11120974
|
[1] |
Bracket
|
|
| 30. |
VOE11120975
|
[1] |
Silencer
|
|
| 31. |
VOE13965192
|
[6] |
Screw
|
|
| 32. |
VOE11121256
|
[6] |
Spacer sleeve
|
|
| 33. |
VOE11059317
|
[1] |
Tube
|
|
| 34. |
VOE11060999
|
[1] |
Cover
|
|
| 35. |
VOE11117804
|
[1] |
Bracket
|
|
| 36. |
VOE11120133
|
[1] |
Support plate
|
|
| 37. |
VOE930842
|
[1] |
Plain washer
|
|
| 38. |
VOE13965185
|
[1] |
Screw
|
|
