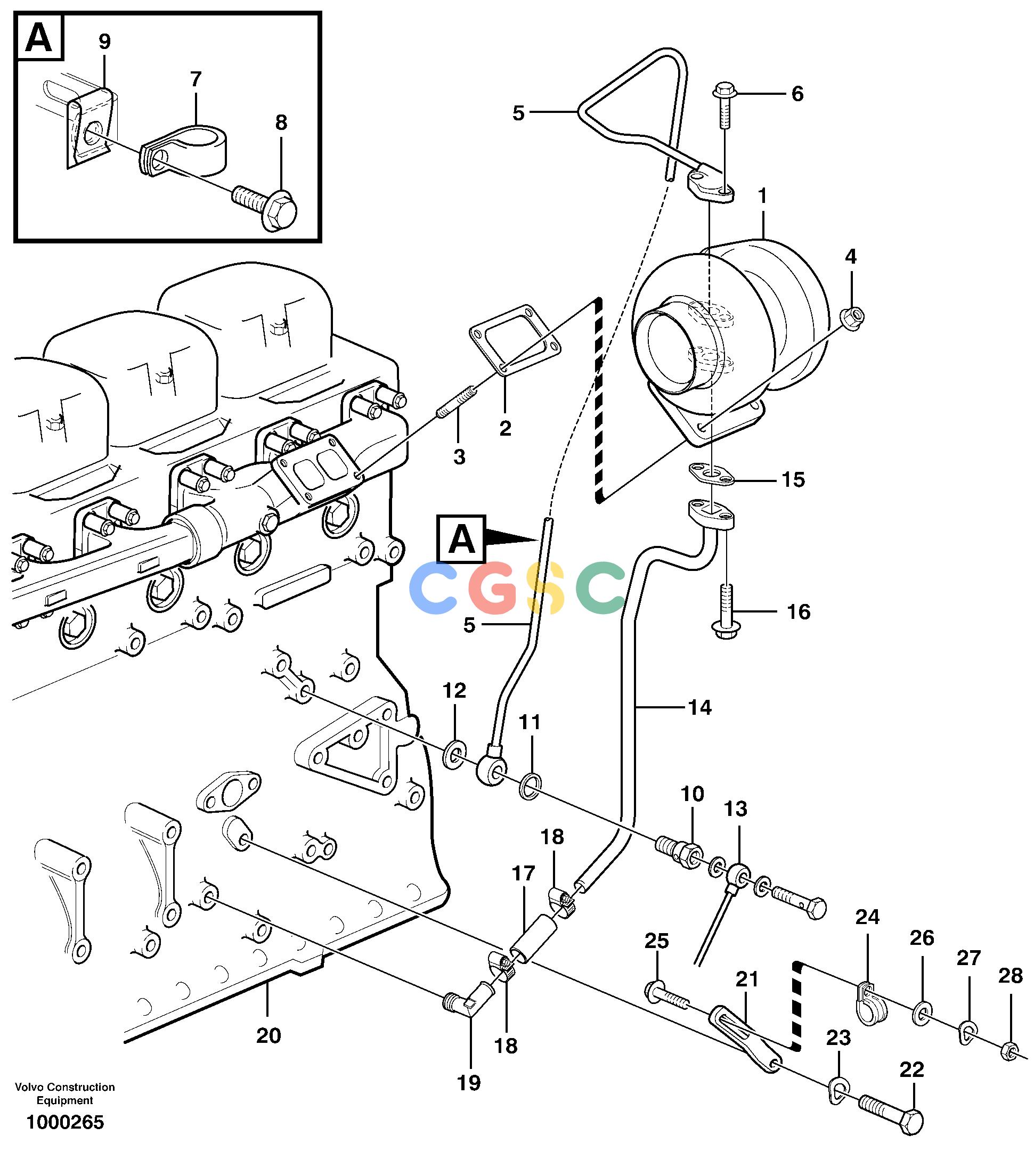

沃尔沃零件查询A25D Turbocharger with fitting partsS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
663 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031468
|
[1] |
Turbocharger
|
|
| 2. |
VOE8194365
|
[1] |
Gasket
|
|
| 3. |
VOE8194545
|
[4] |
Stud
|
|
| 4. |
VOE8194568
|
[4] |
Nut
|
|
| 5. |
VOE11031379
|
[1] |
Tube
|
|
| |
VOE420641
|
[1] |
Gasket
|
|
| 6. |
VOE13965215
|
[1] |
Flange screw
|
L = 22 MM
|
| |
VOE13945444
|
[1] |
Screw
|
L = 25 MM
|
| 7. |
VOE190635
|
[1] |
Clamp
|
|
| 8. |
VOE13946544
|
[1] |
Screw
|
|
| 9. |
VOE949921
|
[1] |
Spring nut
|
|
| 10. |
VOE479464
|
[1] |
Hollow screw
|
|
| 11. |
VOE942703
|
[1] |
Gasket
|
|
| 12. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 13. |
|
[1] |
Oil pipe
|
|
| 14. |
VOE422896
|
[1] |
Return pipe
|
|
| 15. |
VOE420643
|
[1] |
Gasket
|
|
| 16. |
VOE13965215
|
[2] |
Flange screw
|
|
| 17. |
VOE466328
|
[1] |
Hose
|
|
| 18. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 19. |
VOE479959
|
[1] |
Nipple
|
|
| 20. |
|
[1] |
Cylinder block
|
|
| 21. |
VOE414692
|
[1] |
Bracket
|
|
| 22. |
VOE955534
|
[1] |
Hexagon screw
|
|
| 23. |
VOE13942336
|
[1] |
Spring washer
|
|
| 24. |
VOE952632
|
[1] |
Clamp
|
|
| 25. |
VOE950046
|
[1] |
Cross recessed screw
|
|
| 26. |
VOE955893
|
[1] |
Plain washer
|
|
| 27. |
VOE13941906
|
[1] |
Washer
|
|
| 28. |
VOE955825
|
[1] |
Hexagon nut
|
|
