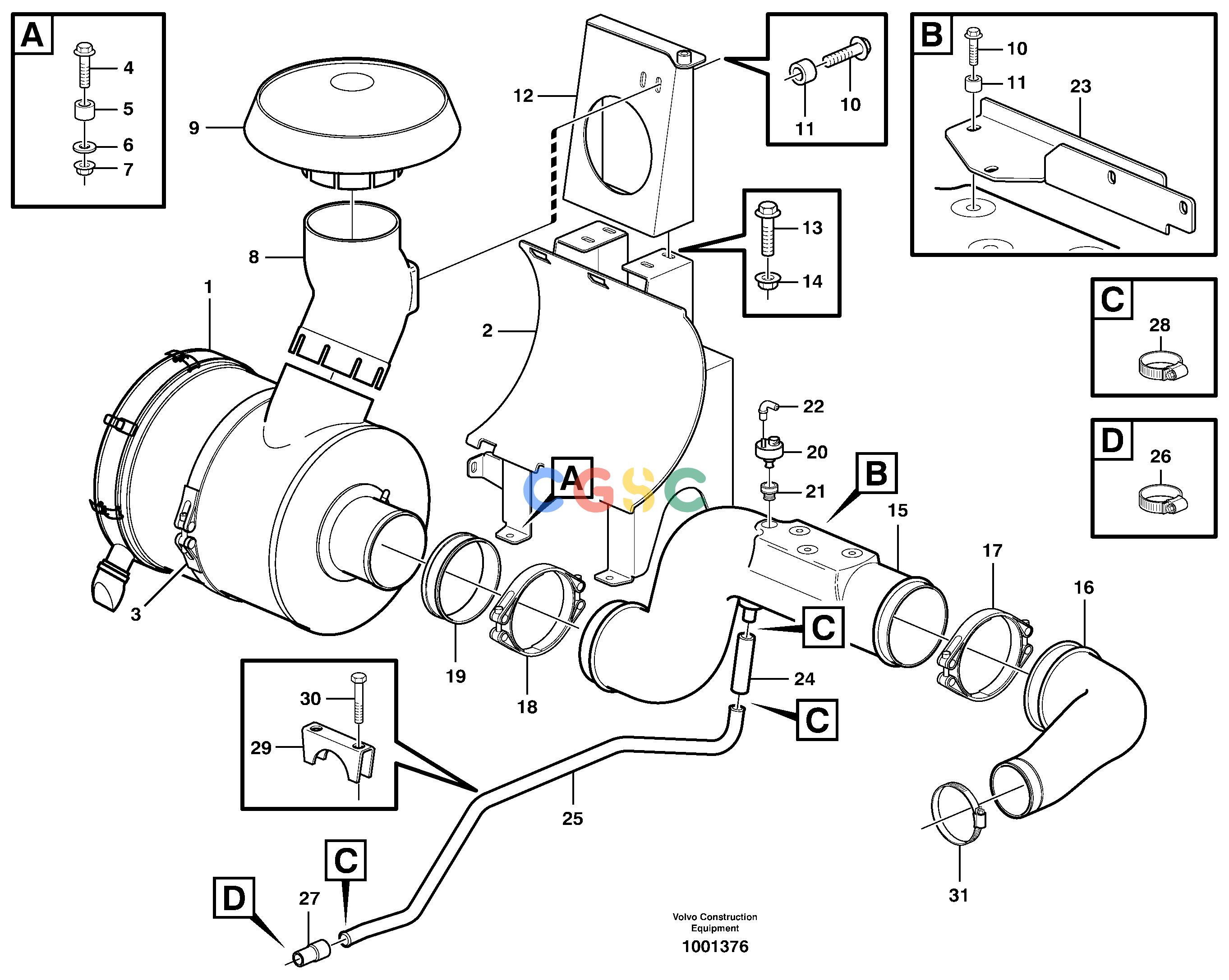

沃尔沃零件查询A25D Air filter with fitting partsS/N -12999, - 61118 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
305 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Air Cleaner
|
|
| 2. |
VOE11190133
|
[1] |
Bracket
|
|
| 3. |
VOE11117509
|
[2] |
Clamp
|
|
| 4. |
VOE13947760
|
[4] |
Screw
|
|
| 5. |
VOE4973473
|
[4] |
Spacer sleeve
|
|
| 6. |
VOE11055612
|
[4] |
Plain washer
|
|
| 7. |
VOE13945408
|
[4] |
Nut
|
|
| 8. |
VOE11119072
|
[1] |
Duct
|
|
| 9. |
VOE11110259
|
[1] |
Cover
|
|
| 10. |
VOE60113082
|
[5] |
Flange screw
|
|
| 11. |
VOE11053913
|
[5] |
Spacer sleeve
|
|
| 12. |
VOE11190138
|
[1] |
Bracket
|
|
| 13. |
VOE13946173
|
[4] |
Screw
|
|
| 14. |
VOE948645
|
[4] |
Flange lock nut
|
|
| 15. |
VOE11117113
|
[1] |
Inlet manifold
|
SER NO - 11079
|
| |
VOE11121663
|
[1] |
Inlet manifold
|
SER NO 11080 - 11952
|
| |
VOE11191261
|
[1] |
Inlet manifold
|
SER NO 11953 -
|
| 16. |
VOE11120299
|
[1] |
Hose
|
SER NO - 11952
|
| |
VOE11191265
|
[1] |
Hose
|
SER NO 11953 -
|
| 17. |
VOE11191150
|
[1] |
Hose clamp
|
SER NO - 11952
|
| |
VOE11191150
|
[1] |
Hose clamp
|
SER NO 11953 -
|
| 18. |
VOE11191151
|
[1] |
Hose clamp
|
SER NO 11080 - 11952
|
| |
VOE16826603
|
[1] |
Hose clamp
|
SER NO 11953 -
|
| 19. |
VOE11121646
|
[1] |
Sleeve
|
SER NO - 11079
|
| |
VOE11121647
|
[1] |
Reduction
|
SER NO 11080 - 11952
|
| |
VOE11191266
|
[1] |
Reduction
|
SER NO 11953 -
|
| 20. |
VOE22996281
|
[1] |
Vacuum switch
|
|
| |
VOE22996282
|
[1] |
Vacuum switch
|
|
| 21. |
VOE3979616
|
[1] |
Bushing
|
|
| 22. |
VOE11121659
|
[1] |
Nipple
|
|
| 23. |
VOE11118784
|
[1] |
Bracket
|
|
| 24. |
VOE969149
|
[REQ] |
Hose
|
L=160
|
| 25. |
VOE11117108
|
[1] |
Pipe
|
|
| 26. |
VOE13943474
|
[1] |
Hose clamp
|
|
| 27. |
VOE3986759
|
[1] |
Hose
|
|
| 28. |
VOE11059294
|
[3] |
Hose clamp
|
|
| 29. |
VOE11117142
|
[2] |
Clamp
|
|
| 30. |
VOE13947760
|
[4] |
Screw
|
|
| 31. |
VOE11191147
|
[1] |
Hose clamp
|
|
