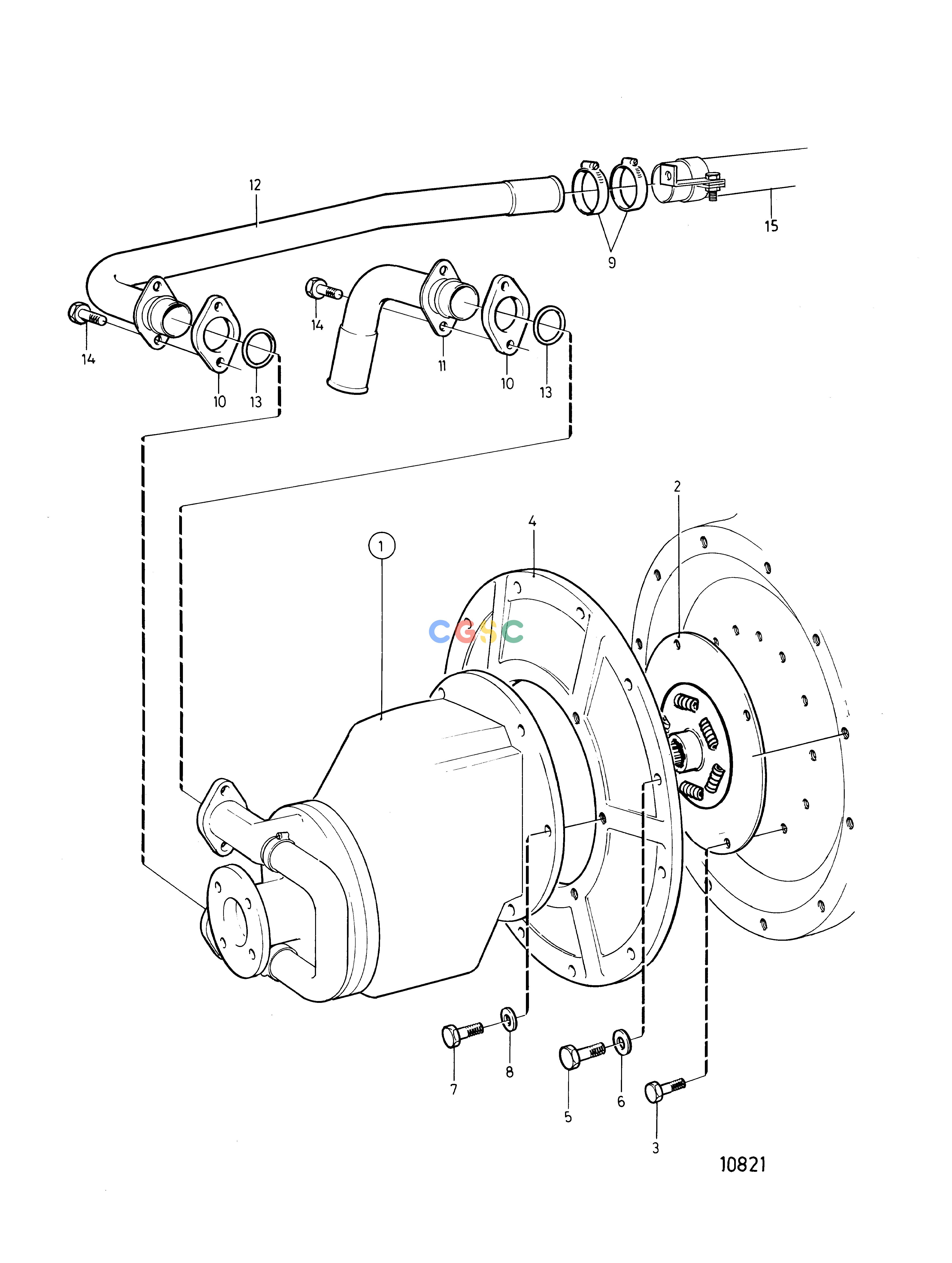

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DTransmissionsConnecting Components for MS4BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
855389
|
[1] |
Absorber
|
|
| 3. |
946173
|
[6] |
Flange screw
|
|
| 4. |
829489
|
[1] |
Cap
|
|
| 5. |
946752
|
[11] |
Flange screw
|
|
| 6. |
941908
|
[11] |
Spring washer
|
Early type
|
| 7. |
946752
|
[6] |
Flange screw
|
|
| 8. |
941908
|
[6] |
Spring washer
|
Early type
|
| 9. |
961669
|
[2] |
Hose clamp
|
|
| 10. |
854184
|
[2] |
Flange
|
|
| 11. |
854758
|
[1] |
Coolant pipe
|
|
| 12. |
854759
|
[1] |
Coolant pipe
|
|
| 13. |
925062
|
[2] |
O-ring
|
|
| 14. |
942001
|
[4] |
Hex. socket screw
|
|
| 15. |
860639
|
[1] |
Hose
|
Reverse gear-Sea water pump.
|
