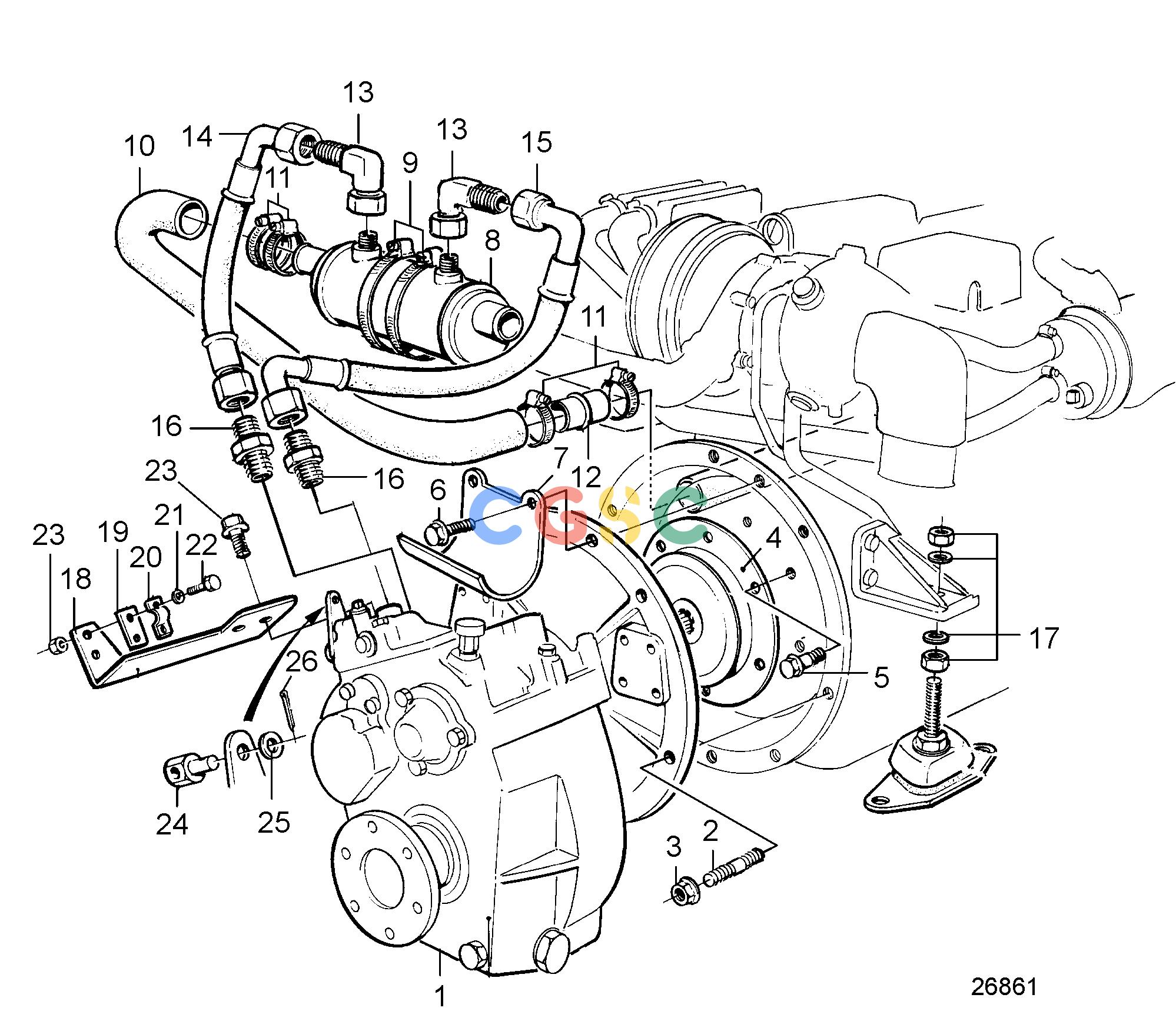

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DTransmissionsConnecting Components for PRM 402EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
953067
|
[4] |
Stud
|
|
| 3. |
971095
|
[4] |
Flange nut
|
|
| 4. |
872987
|
[1] |
Clutch
|
|
| 5. |
946173
|
[6] |
Flange screw
|
|
| 6. |
859592
|
[1] |
Bracket
|
|
| 7. |
946752
|
[5] |
Flange screw
|
|
| 8. |
872626
|
[1] |
Oil cooler
|
|
| 9. |
961674
|
[2] |
Hose clamp
|
|
| 10. |
861089
|
[1] |
Hose
|
|
| 11. |
961669
|
[4] |
Hose clamp
|
|
| 12. |
861090
|
[1] |
Tube
|
|
| 13. |
946369
|
[2] |
Elbow nipple
|
|
| 14. |
872637
|
[1] |
Hose
|
|
| 15. |
872638
|
[1] |
Hose
|
|
| 16. |
856793
|
[2] |
Nipple
|
|
| 17. |
|
|
|
See group 21
|
| 18. |
858366
|
[1] |
Bracket
|
|
| 19. |
819068
|
[1] |
Washer
|
|
| 20. |
21471054
|
[1] |
Bracket
|
|
| 21. |
940090
|
[2] |
Washer
|
|
| 22. |
955246
|
[2] |
Hexagon screw
|
|
| 23. |
946577
|
[2] |
Lock nut
|
|
| 24. |
3841580
|
[1] |
Cube
|
|
| 25. |
955893
|
[1] |
Washer
|
|
| 26. |
17276
|
[1] |
Split pin
|
|
