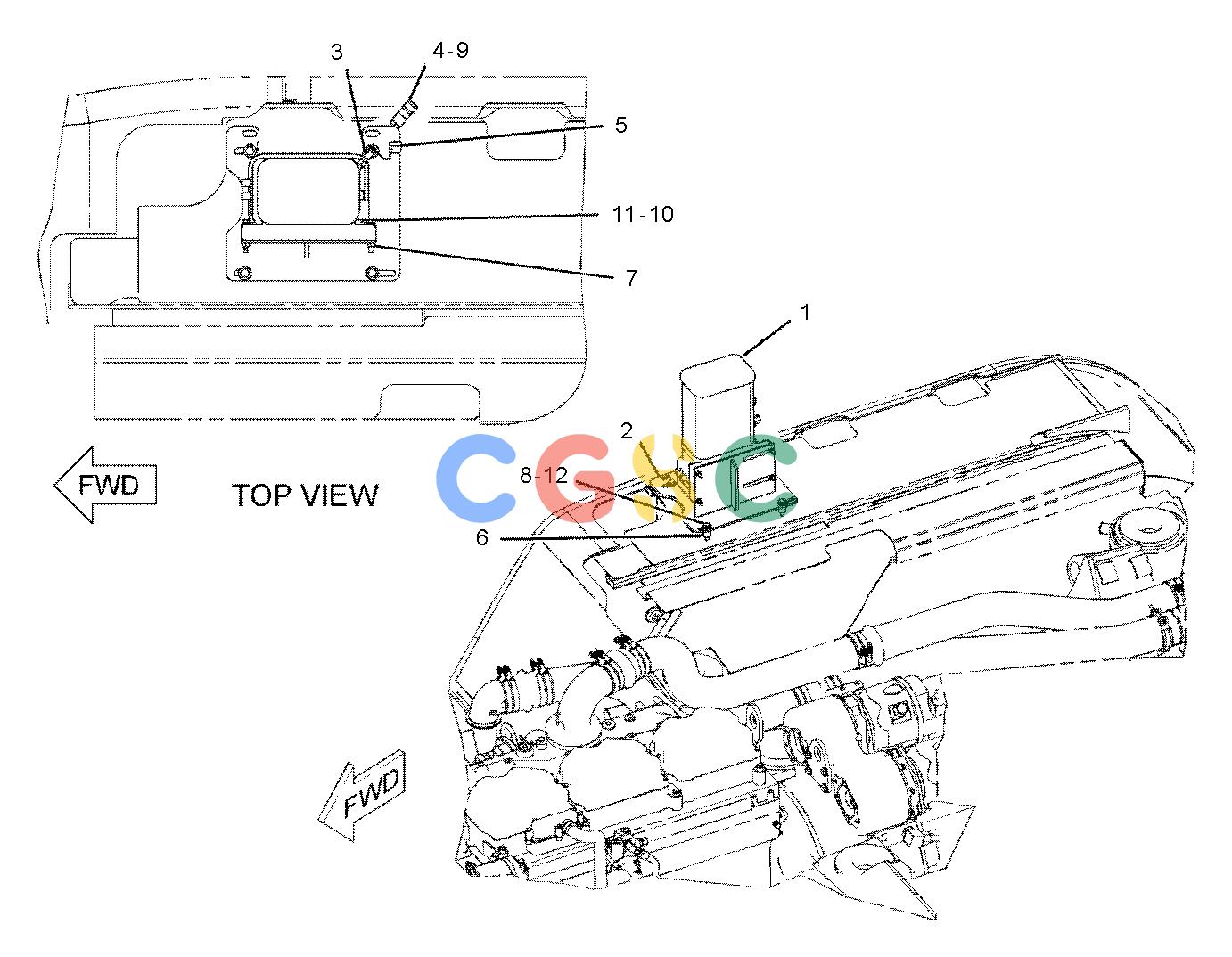

卡特零件查询（725） 220-7494: PUMP & MTG GP-LUBRICATION
广数供应链运营团队, 14 02月, 2025，浏览：
484 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 184-0704Y | [1] | PUMP GP-LUBRICATION(AUTOMATIC LUBRICATION CONTROL) | |
| 2. | 315-8133 | [1] | BRACKET | |
| 3. | 221-1577 | [1] | COUPLER AS-QUICK CONNECT(MALE) | |
| 4. | 221-1578 | [1] | COUPLER AS-QUICK CONNECT(FEMALE) | |
| 5. | 221-1579 | [1] | CAP-DUST | |
| 6. | 211-6246 | [4] | SPACER(13.3X21.3X25-MM THK) | |
| 7. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 8. | 8T-4185M | [4] | BOLT(M10X1.5X50-MM) | |
| 9. | 258-5153 | [1] | COUPLING | |
| 10. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 8T-6869M | [4] | BOLT(M8X1.25X60-MM) | |
| 12. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
