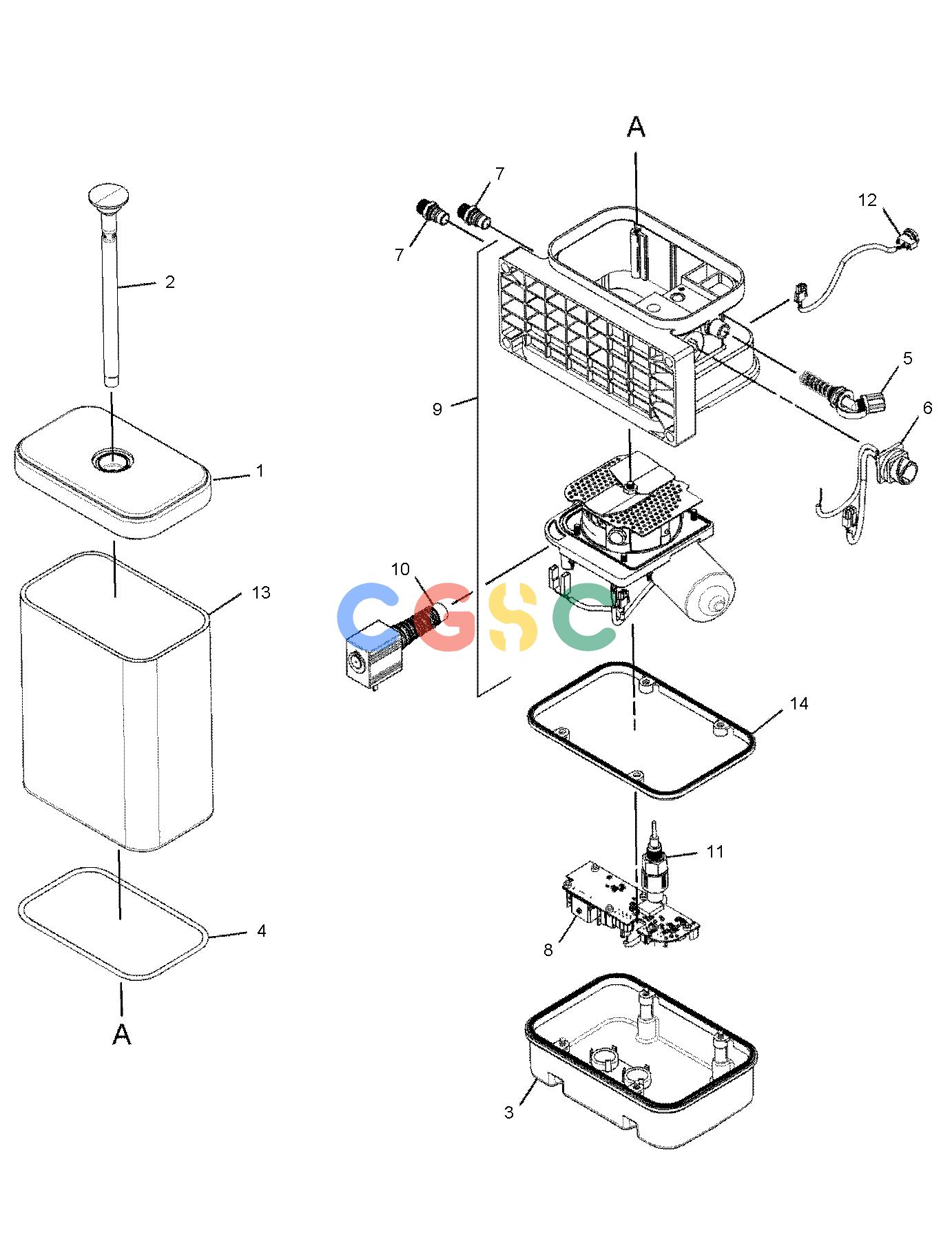

卡特零件查询（725） 184-0704: PUMP GP-LUBRICATION
广数供应链运营团队, 14 02月, 2025，浏览：
350 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 196-1047 | [1] | COVER GP(TANK) | |
| | 196-1053 | [1] | COVER GP(PROTECTIVE) | |
| | 196-1046 | [1] | LOCK GP | |
| | 254-8501 | [1] | MOTOR GP-ELECTRIC(AUTOLUBE, 24-VOLT) | |
| | 196-1068 | [1] | PLUG GP | |
| | | | |
| | 196-1074 | [1] | BOARD AS-CIRCUIT | |
| | 196-1077 | [1] | COIL AS | |
| | 196-1062 | [1] | FILTER AS-GREASE | |
| | 196-1066 | [1] | HARNESS AS-CONTROL(AUTOMATIC LUBRICATION) | |
| | 196-1079 | [1] | HARNESS AS-PUMP(AUTOMATIC LUBRICATION) | |
| | 196-1069 | [1] | HARNESS AS-SWITCH(LEVEL) | |
| | 196-1051 | [1] | PLATE AS | |
| | 196-1065 | [1] | SWITCH AS(AUTOMATIC LUBRICATION TEST) | |
| | 196-1067 | [1] | SWITCH AS-LEVEL(GREASE) | |
| | 196-1050 | [1] | TANK AS-LUBRICATION | |
| | 196-1076 | [1] | VALVE AS(AUTOMATIC LUBRICATION PUMP) | |
| | | | |
| | 196-1055 | [1] | BRACKET | |
| | 196-1060 | [1] | CAP | |
| | 196-1075 | [4] | CLIP | |
| | 196-1070 | [2] | CONNECTOR | |
| | 196-1061 | [1] | COUPLING | |
| | 196-1063 | [1] | COUPLING | |
| | 251-3564 | [1] | COUPLING | |
| | 196-1064 | [1] | COVER | |
| | | [1] | FITTING-GREASE |
| | | [1] | FITTING-GREASE |
| | 196-1052 | [1] | GASKET GP | |
| | 196-1049 | [1] | GUIDE-ROD | |
| | 196-1078 | [1] | RING | |
| | 196-1054 | [1] | SEAL | |
| | 196-1048 | [1] | SEAL-O-RING | |
| | 196-1056 | [1] | SEAL-O-RING | |
| | 196-1071 | [2] | SEAL-O-RING | |
| | 196-1072 | [2] | SEAL-O-RING | |
| | 196-1073 | [2] | SEAL-O-RING | |
