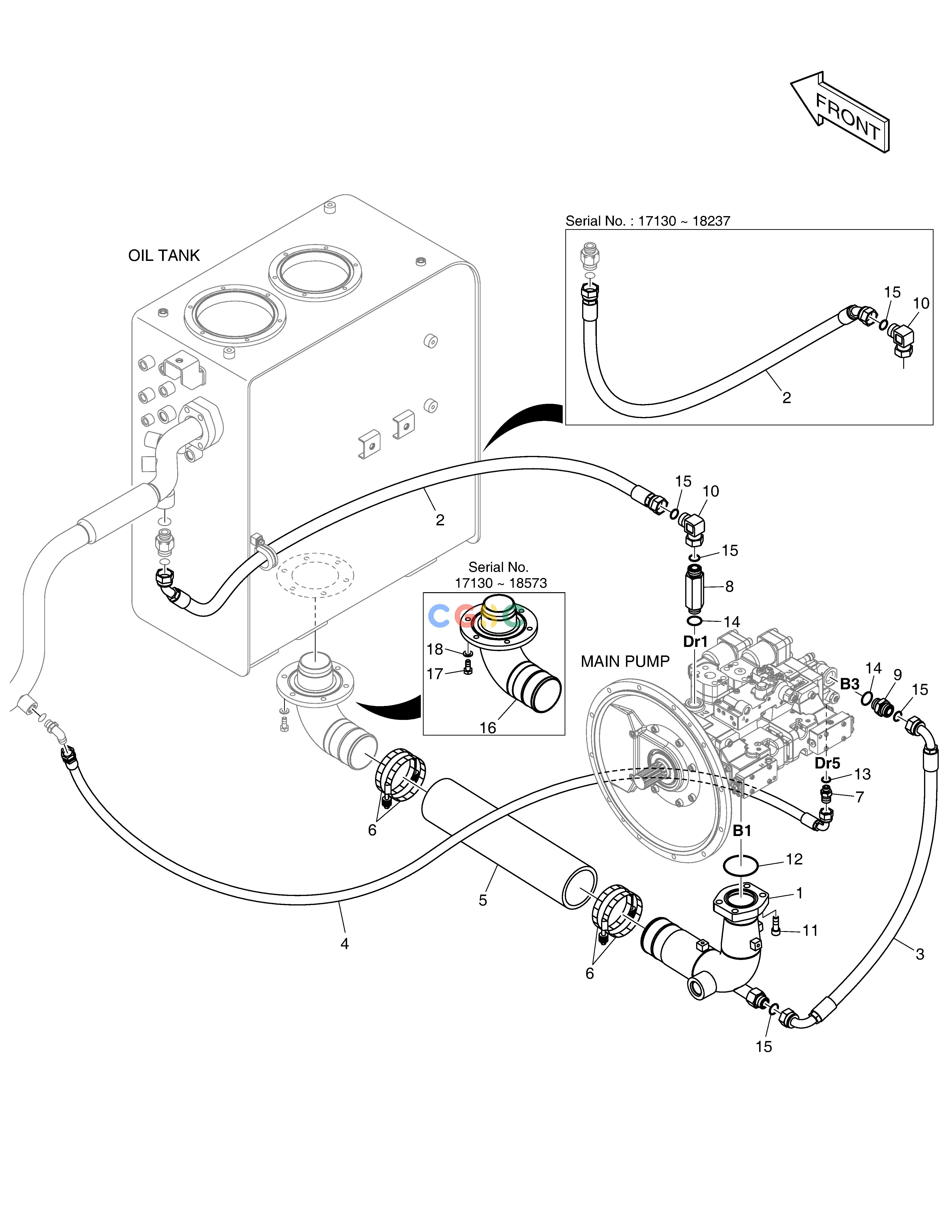

斗山零件查询OIL COOLER PIPING(1) DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1014 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13917
|
[-] |
|
|
| 1. |
420218-00410B
|
[1] |
|
|
| 1. |
420218-00410A
|
[1] |
|
420218-00410B
|
| 10. |
DS2291020
|
[1] |
|
|
| 11. |
S2215366
|
[4] |
BOLT
|
|
| 12. |
2180-1026D31
|
[1] |
O-RING
|
|
| 13. |
S8000141
|
[1] |
O-RING
|
|
| 14. |
S8000241
|
[2] |
O-RING
|
|
| 15. |
S8030121
|
[4] |
O-RING
|
|
| 16. |
420218-00411
|
[1] |
|
|
| 17. |
S0512066
|
[6] |
. BOLT
|
|
| 18. |
120804-00076
|
[6] |
WASHER
|
|
| 2. |
DS2012070
|
[1] |
HOSE
|
|
| 2. |
DS2012646
|
[1] |
|
|
| 3. |
DS2023528
|
[1] |
|
|
| 4. |
DS2055318
|
[1] |
HOSE
|
|
| 5. |
2185-1737D8
|
[1] |
HOSE
|
|
| 6. |
S8500118
|
[4] |
COLLIER
|
|
| 7. |
2181-1126D115
|
[1] |
ADAPTER
|
|
| 8. |
DS2232029
|
[1] |
|
|
| 9. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
