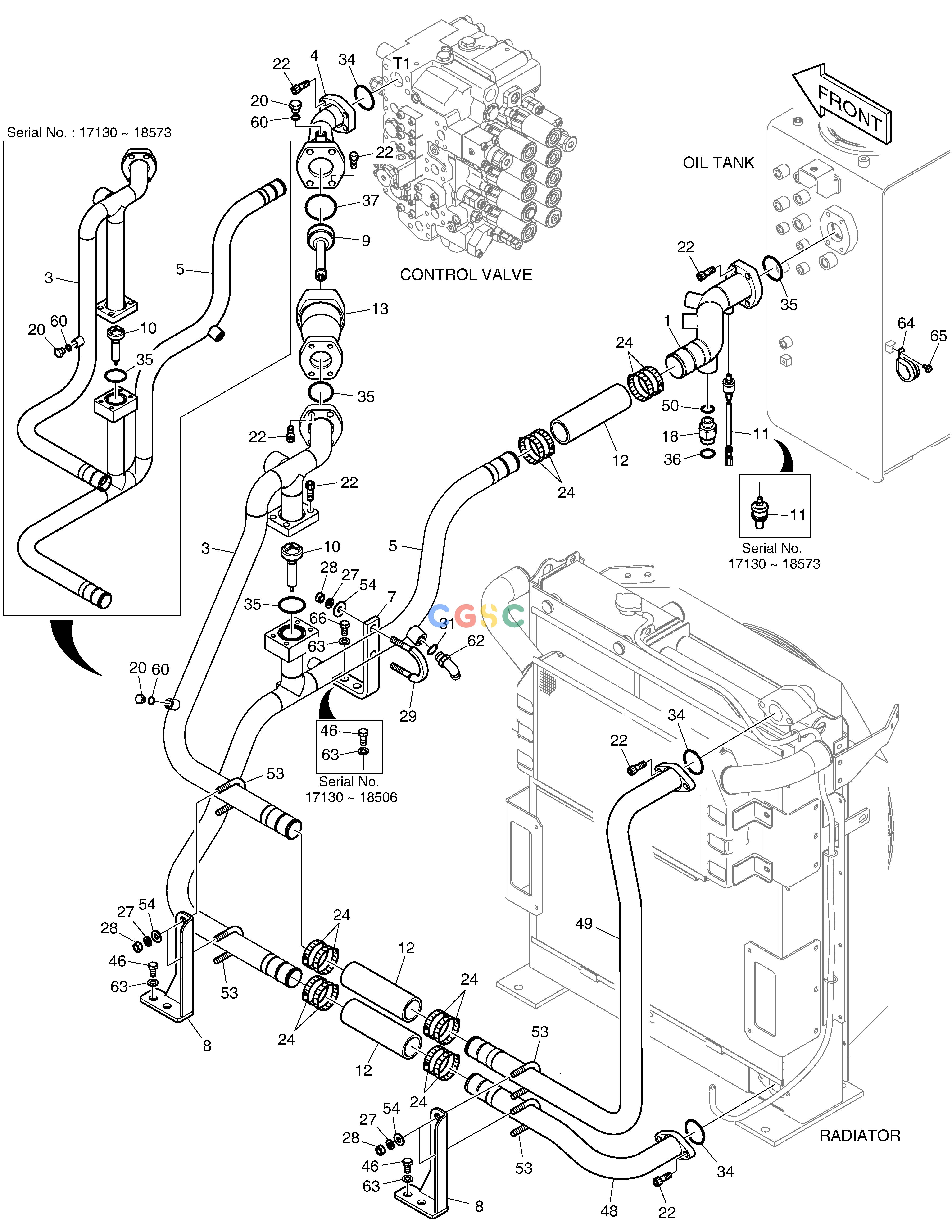

斗山零件查询OIL COOLER PIPING(2) DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
803 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13915
|
[-] |
|
|
| 1. |
420202-00015
|
[1] |
|
|
| 10. |
410128-00035
|
[1] |
|
|
| 11. |
549-00095
|
[1] |
SWITCH;PRESSURE
|
|
| 12. |
2185-1776D2
|
[3] |
HOSE 200L
|
|
| 13. |
K1000644B
|
[1] |
PIPE
|
|
| 18. |
2181-2627D5
|
[1] |
ADAPTER
|
|
| 20. |
2181-1950D1
|
[2] |
PLUG
|
|
| 22. |
S2215366
|
[24] |
BOLT
|
|
| 24. |
S8500079
|
[12] |
CLAMP
|
|
| 27. |
S5102703
|
[10] |
WASHER
|
|
| 28. |
S4012733
|
[10] |
NUT
|
|
| 29. |
120-00317
|
[1] |
BOLT
|
|
| 3. |
K1036303B
|
[1] |
PIPE
|
|
| 3. |
420207-04190
|
[1] |
|
|
| 31. |
S8000181
|
[1] |
O-RING
|
|
| 34. |
2180-1026D24
|
[3] |
O-RING
|
|
| 35. |
2180-1026D27
|
[3] |
O-RING
|
|
| 36. |
S8030121
|
[1] |
O-RING
|
|
| 37. |
2180-1026D31
|
[1] |
O-RING
|
|
| 4. |
140-01604C
|
[1] |
PIPE
|
|
| 4. |
420207-04118
|
[1] |
|
|
| 46. |
S0515266
|
[6] |
BOLT
|
|
| 46. |
S0515266
|
[4] |
BOLT
|
|
| 48. |
K1036143A
|
[1] |
PIPE
|
|
| 49. |
K1036299A
|
[1] |
PIPE
|
|
| 5. |
K1036302B
|
[1] |
PIPE
|
|
| 5. |
420207-04191
|
[1] |
|
|
| 50. |
S8000231
|
[1] |
O-RING
|
|
| 53. |
2120-1413D12
|
[4] |
U-BOLT
|
|
| 54. |
2114-1058D72
|
[10] |
WASHER
|
|
| 60. |
S8000111
|
[2] |
O-RING
|
|
| 62. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 63. |
120804-00077
|
[6] |
WASHER
|
|
| 64. |
124-00208D6
|
[1] |
CLIP
|
|
| 65. |
K1001029
|
[1] |
BOLT
|
|
| 66. |
S0515066
|
[2] |
BOLT
|
|
| 7. |
K1044617
|
[1] |
PLATE
|
|
| 7. |
250107-00599
|
[1] |
|
|
| 8. |
110406-00039
|
[2] |
|
|
| 9. |
410128-00039
|
[1] |
|
|
