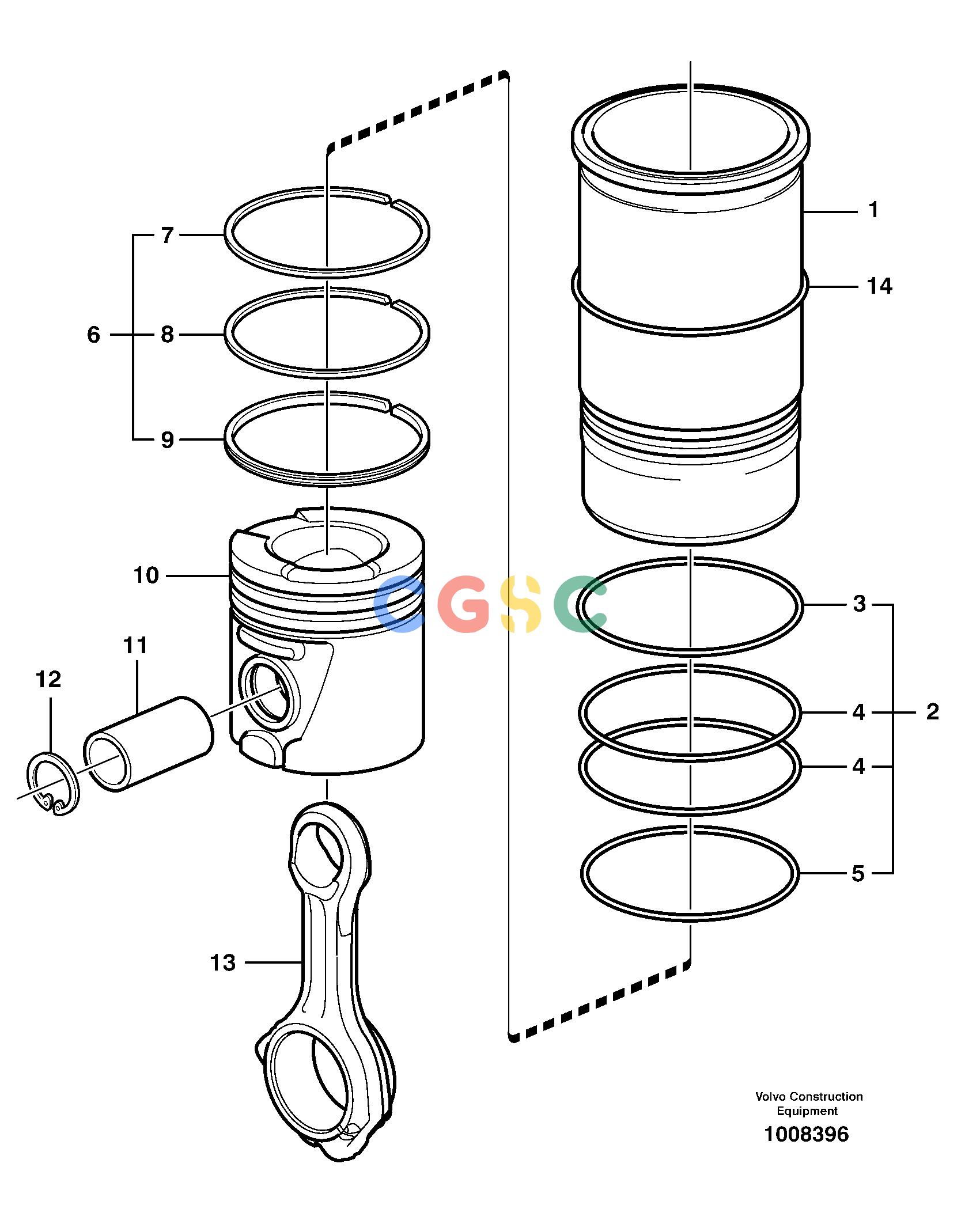

沃尔沃零件查询A25E Cylinder liner and pistonS/N 13001 - 13939 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE20801975
|
[6] |
Cylinder liner kit
|
|
| 1. |
|
[6] |
Cylinder Liner
|
|
| 2. |
VOE85103699
|
[6] |
Sealing kit
|
|
| 3. |
VOE422713
|
[6] |
Sealing ring
|
|
| 4. |
VOE8148066
|
[0 6] |
Sealing ring
|
UPPER
|
| 5. |
VOE8148067
|
[6] |
Sealing ring
|
CENT
|
| 6. |
VOE20842165
|
[6] |
Piston ring kit
|
|
| 7. |
VOE20711405
|
[6] |
Ring
|
UPPER
|
| 8. |
VOE20570145
|
[6] |
Ring
|
LOW
|
| 9. |
VOE20568144
|
[6] |
Ring
|
|
| 10. |
VOE20711393
|
[6] |
Piston
|
|
| 11. |
VOE3161285
|
[6] |
Gudgeon pin
|
|
| 12. |
VOE21723152
|
[12] |
Snap ring
|
|
| 13. |
|
[6] |
Connecting rod
|
|
| 14. |
VOE20463853
|
[REQ] |
Shim
|
THICK = 0,2 MM
|
| |
VOE20463854
|
[REQ] |
Shim
|
THICK = 0,3 MM
|
| |
VOE20463855
|
[REQ] |
Shim
|
THICK = 0,5 MM
|
