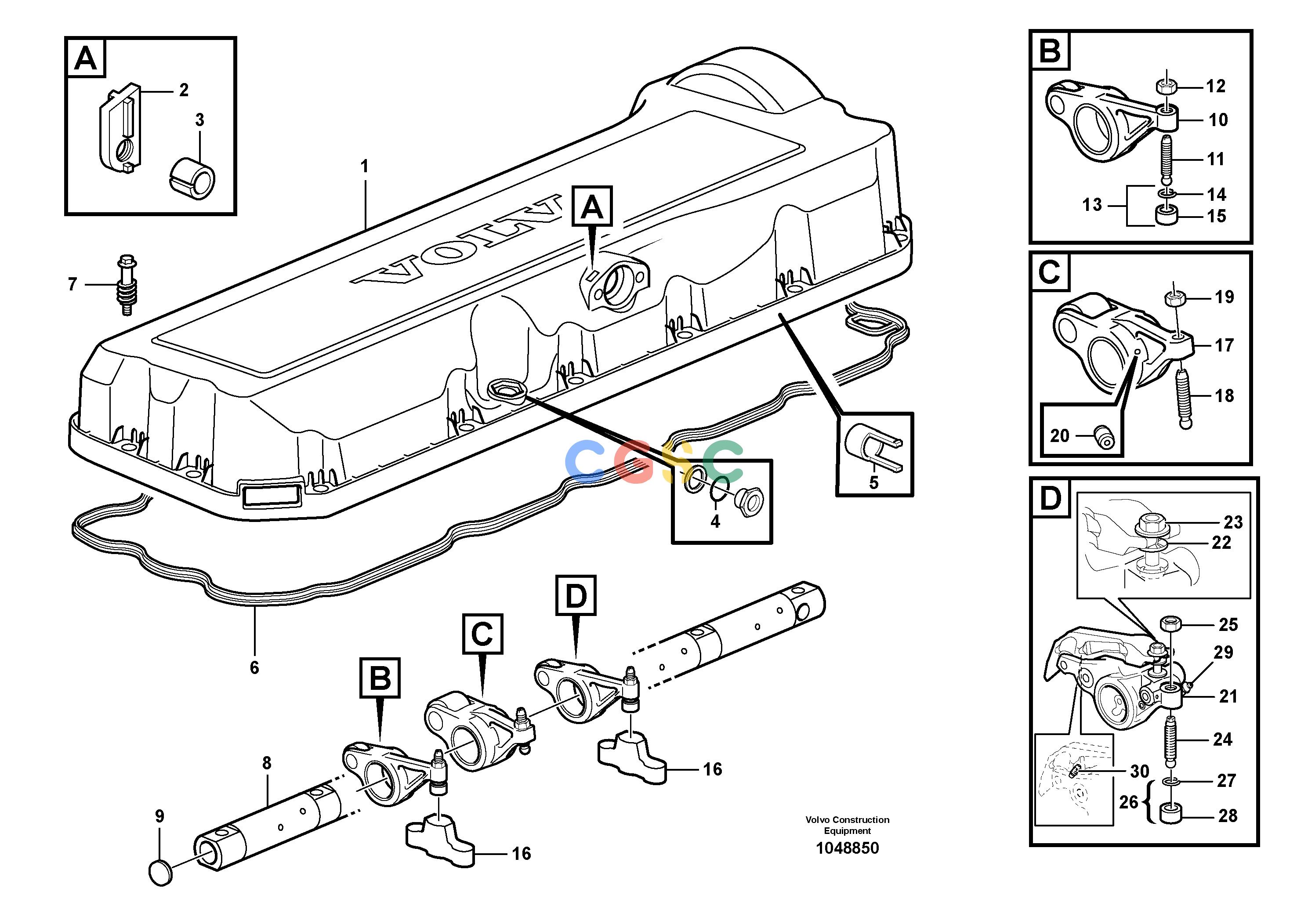

沃尔沃零件查询A25E Valve mechanismS/N 13001 - 13939ENG - 155632-ENG 155633 - 171894NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
346 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20567886
|
[1] |
Valve cover
|
|
| 1. |
VOE20996688
|
|
Valve cover
|
|
| 2. |
VOE24427518
|
[2] |
Nut washer
|
|
| 3. |
VOE20450320
|
[2] |
Spacer sleeve
|
|
| 4. |
VOE13949657
|
[1] |
O-ring
|
|
| 5. |
VOE8131751
|
[3] |
Draining bowl
|
|
| 6. |
VOE20804638
|
[1] |
Sealing strip
|
|
| 7. |
VOE22859766
|
[16] |
Flange screw
|
|
| 8. |
VOE21539423
|
[1] |
Rocker arm shaft
|
|
| 9. |
VOE980176
|
[2] |
Expansion plug
|
|
| 10. |
VOE21271538
|
[6] |
Rocker arm
|
|
| 11. |
VOE1546458
|
[6] |
Ball stud
|
|
| 12. |
VOE13946911
|
[6] |
Nut
|
|
| 13. |
VOE21054149
|
[6] |
Ball socket
|
|
| 14. |
VOE944364
|
[6] |
O-ring
|
|
| 15. |
VOE21054152
|
[6] |
Ball socket
|
|
| 16. |
VOE20751464
|
[12] |
Valve caliper
|
INLET, EXHAUST
|
| 17. |
VOE21089229
|
[6] |
Rocker arm
|
|
| 18. |
VOE1546775
|
[6] |
Ball stud
|
|
| 19. |
VOE1677396
|
[6] |
Hexagon nut
|
|
| 20. |
VOE3964817
|
[6] |
Jet
|
|
| |
VOE1546685
|
[6] |
Bushing
|
|
| |
VOE3155127
|
[6] |
Bushing
|
|
| 21. |
VOE21138998
|
[6] |
Rocker arm
|
|
| 21. |
VOE21138998
|
|
Rocker arm
|
|
| 22. |
VOE20524954
|
[6] |
Sleeve
|
|
| 23. |
VOE20524958
|
[6] |
Nut
|
|
| 24. |
VOE1546458
|
[6] |
Ball stud
|
|
| 25. |
VOE13946911
|
[6] |
Nut
|
|
| 26. |
VOE20441753
|
[6] |
Ball socket
|
|
| 26. |
VOE21054149
|
|
Ball socket
|
|
| 27. |
VOE944364
|
[6] |
O-ring
|
|
| 28. |
VOE20441755
|
[6] |
Ball socket
|
|
| 28. |
VOE21054152
|
|
Ball socket
|
|
| 29. |
VOE20916960
|
[6] |
Nipple
|
|
| 30. |
VOE3964817
|
[6] |
Jet
|
|
