神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE FOR K904C, K907B, K907C & YS750-2 (1/77-12/06) (01-025) - AIR COMPRESSOR (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
841 次

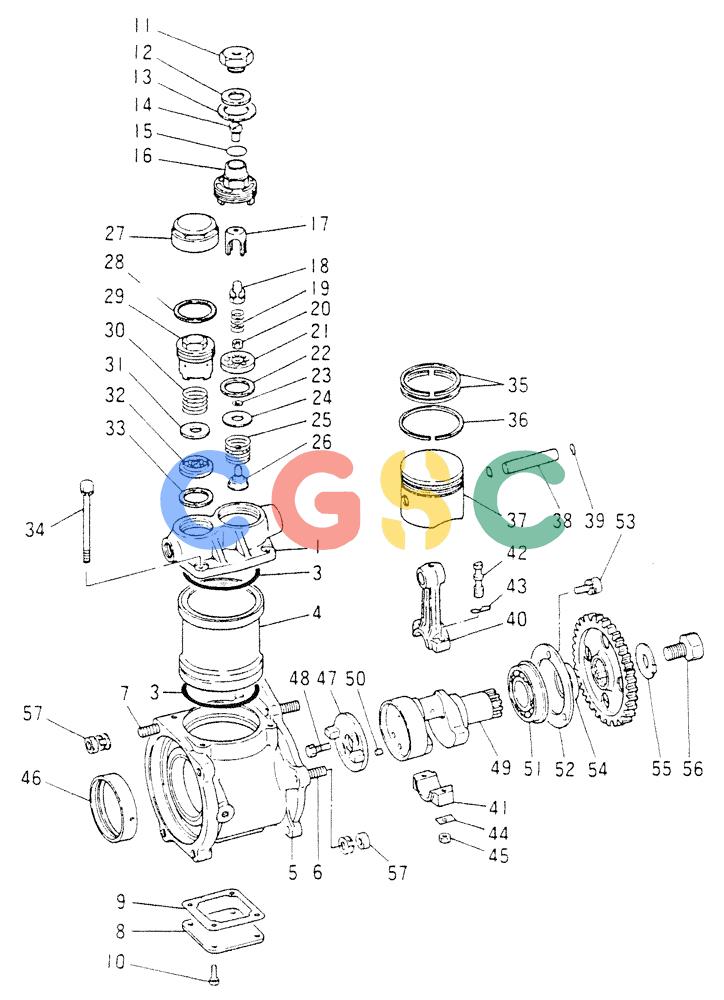

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-57. | VAME038665 | [1] | COMPRESSOR AIR COMPRESSOR ASSY 186.2CC, FOR M0 ONLY | COMPRESSOR AIR COMPRESSOR ASSY 186.2CC, FOR M0 ONLY |
| . . | VAME038666 | [1] | AIR COMPRESSOR ASSY 186.2CC, FOR M1 ONLY | |
| 1. | VAME038006 | [1] | HEAD,CYL | |
| 3. | VAHF520593 | [2] | O-RING | |
| 4. | VAME038014 | [1] | LINER, ENGINE CYLIND | KOBLINER |
| 5. | VAME038256 | [1] | CRANKCASE FOR M0 ONLY | |
| 5. | VAME038468 | [1] | CRANKCASE FOR M1 ONLY | |
| 6. | VAMF406296 | [2] | BOLT | KOBSTUD 10X55 |
| 7. | VAMF406292 | [4] | STUD 10X40 | |
| 8. | VAME038057 | [1] | COVER,UNDER | |
| 9. | VAME068005 | [1] | GASKET | KOBGASKET,OIL PAN |
| 10. | VAMF240026 | [4] | BOLT BOLT, W/WSR 6 X 18 | BOLT BOLT, W/WSR 6 X 18 |
| 11. | VAME038007 | [1] | CONNECTOR | |
| 12. | VAMH035105 | [1] | GASKET | KOBGASKET |
| 13. | VAMH035104 | [1] | GASKET | |
| 14. | VAME040203 | [1] | VALVE,UNLOADER | |
| 15. | VAMF520015 | [1] | O-RING 22 | |
| 16. | VAME038029 | [1] | SCREW,FIXING INLET | |
| 17. | VAME067993 | [1] | RETAINER,SPG | |
| 18. | VAMF240022 | [1] | BOLT | KOBBOLT,W/WSR 6X10 |
| 19. | VAME040204 | [1] | SPRING,UNLOADER/V | |
| 20-26. | VAME048004 | [1] | INLET VALVE ASSY | |
| 20. | VAMH004059 | [1] | NUT 8 | |
| 21. | VAME048006 | [1] | SEAT,VALVE INLET | |
| 22. | VAMH035102 | [1] | GASKET 46 | |
| 23. | VAMH035101 | [1] | GASKET 8 | |
| 24. | VAME048005 | [1] | VALVE,PLATE | |
| 25. | VAME048007 | [1] | SPRING | KOBSPRING,VALVE |
| 26. | VAME067029 | [1] | RETAINER,SPRING | |
| 27. | VAME067854 | [1] | CAP,FIXING SCREW | |
| 28. | VAMH035100 | [1] | GASKET 46 | |
| 29. | VAME048002 | [1] | SCREW,FIXING EXH | |
| 30-33. | VAME048010 | [1] | VALVE | KOBEXHAUST VALVE ASSY |
| 30. | VAHE048007 | [1] | SPRING,VALVE | |
| 31. | VAME048005 | [1] | VALVE,PLATE | |
| 32. | VAME048012 | [1] | SEAT,VALVE | |
| 33. | VAMH035103 | [1] | GASKET 35 | |
| 34. | VAMF240072 | [4] | BOLT,W/WSR 8X100 | |
| 35. | VAME048014 | [1] | PISTON RING SET | KOBRING, COMPR NO.1 STD |
| 35. | VA3007615391 | [1] | RING, COMPR NO.1 OS 0.50 | |
| 35. | VA3007615392 | [1] | RING, COMPR NO.1 OS 1.00 | |
| 35. | VA3007615400 | [1] | PISTON RING SET | KOBRING, COMPR NO.2 STD (AVAILABLE IN SET WITH REF 35,36) |
| 35. | VA3007615491 | [1] | RING.COMPR NO.2 OS 0.50 (AVAILABLE IN SET WITH REF 35,36) | |
| 35. | VA3007615492 | [1] | RING.COMPR NO.2 OS 1.00 (AVAILABLE IN SET WITH REF 35,36) | |
| 36. | VAME048015 | [1] | PISTON RING SET | KOBRING,OIL STD |
| 36. | VA3007615691 | [1] | RING,OIL OS 0.50 | |
| 36. | VA3007615692 | [1] | RING,OIL OS 1.00 | |
| 37. | VAME038009 | [1] | PISTON | KOBPISTON STD |
| 37. | VAME038277 | [1] | PISTON OS 0.50 | |
| 37. | VAME038278 | [1] | PISTON OS 1.00 | |
| 38. | VAME048016 | [1] | PIN PIN,PISTON | PIN PIN,PISTON |
| 39. | VAME048017 | [2] | SNAP RING | KOBRING,SNAP |
| 40-45. | VAME038387 | [1] | CONNECTING ROD ASSY | |
| 40. | NSS | [1] | NOT SOLD SEPARAT | CONROD, CONNECTING |
| 41. | NSS | [1] | NOT SOLD SEPARAT | CONCAP, CONN-ROD |
| 42. | VAME048011 | [2] | BOLT,REAMER | |
| 43. | VAME068006 | [2] | WASHER | |
| 44. | VAME005035 | [2] | WASHER | |
| 45. | VAMH004059 | [2] | NUT 8 | |
| 46. | VAME038031 | [1] | BEARING | |
| 47. | VAME038588 | [1] | COUPLING | |
| 48. | VAMH000629 | [2] | BOLT 8X14 | |
| 49. | VAME038587 | [1] | CRANKSHAFT | |
| 50. | VAMH007013 | [1] | PIN,DOWEL | |
| 51. | VAMS556097 | [1] | BEARING | |
| 52. | VAME068000 | [1] | PLATE | |
| 53. | VAMF240049 | [3] | B0LT,W/WSR 8X12 | |
| 54. | VAME920003 | [1] | SPACER | |
| 55. | VAME038137 | [1] | WASHER,CLAW | |
| 56. | VAME038034 | [1] | BOLT | |
| 57. | VAMF430006 | [6] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [6] | WASHER | KOBWASHER,SPG 10 |
| . . | VAMF450006 | [2] | NUT | KOBWASHER,PLAIN 10 Superseded by part number: 133247A1 |
