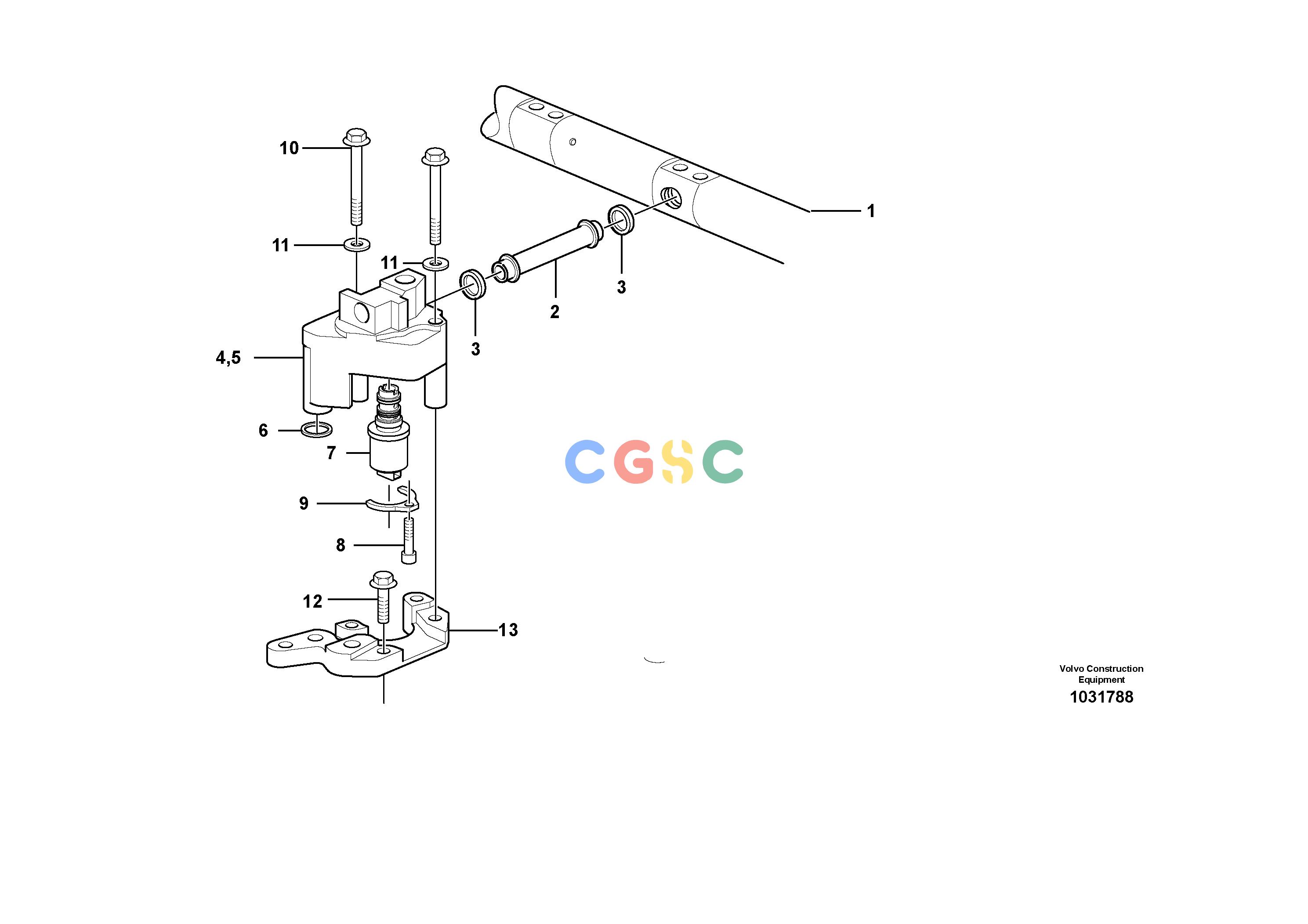

沃尔沃零件查询A25E Valve mechanismS/N 13001 - 139398188710-8188711VOE8188710NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Rkr Arm Shaft
|
|
| 2. |
VOE20786034
|
[1] |
Connection pipe
|
|
| |
VOE20951326
|
|
Connection pipe
|
|
| 3. |
VOE1677370
|
[2] |
Sealing ring
|
|
| 4. |
VOE20574700
|
[1] |
Control valve
|
|
| |
VOE20892735
|
|
Control valve
|
|
| 5. |
VOE20713422
|
[1] |
Housing
|
|
| 6. |
VOE20526428
|
[1] |
Sealing ring
|
|
| 7. |
VOE21596626
|
[1] |
Control valve
|
|
| |
VOE20894131
|
|
Control valve
|
|
| 8. |
VOE20574688
|
[1] |
Hex. socket screw
|
|
| 9. |
VOE20574694
|
[1] |
Clip
|
|
| 10. |
VOE969225
|
[2] |
Flange screw
|
|
| 11. |
VOE192288
|
[2] |
Washer
|
|
| 12. |
VOE13946173
|
[3] |
Screw
|
|
| 13. |
VOE20862692
|
[1] |
Adapter
|
|
