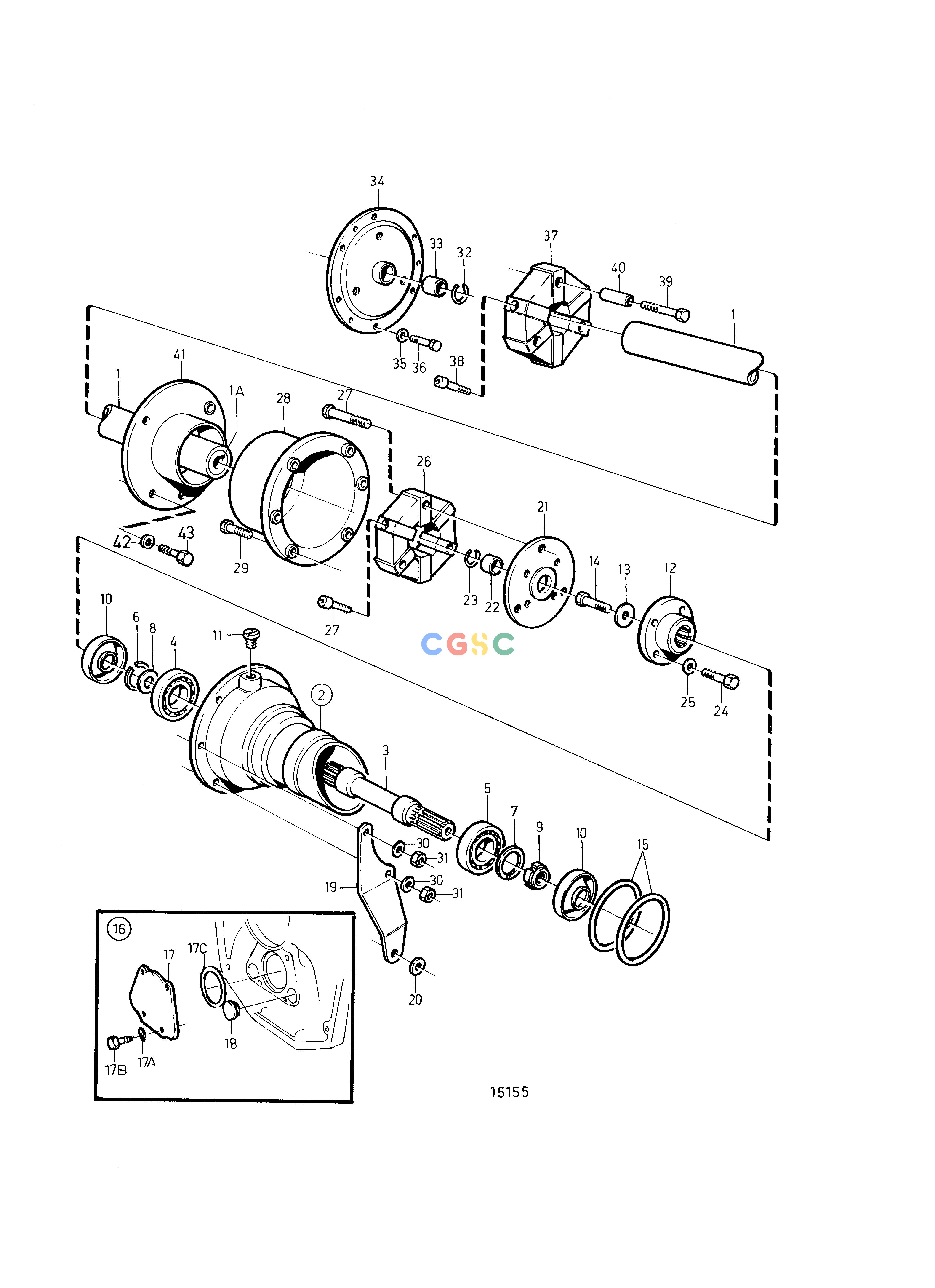

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DTransmissionsJack Shaft KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
483 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
853944
|
[1] |
Axle shaft
|
L=1,1m
|
| 1. |
853850
|
[1] |
Axle shaft
|
L=1,65m
|
| 1A. |
853830
|
[2] |
Insert
|
|
| 2. |
839482
|
[1] |
Intermediate housing
|
|
| 3. |
853841
|
[1] |
Spindle
|
|
| 4. |
183647
|
[1] |
Roller bearing
|
|
| 5. |
11041
|
[1] |
Roller bearing
|
|
| 6. |
914465
|
[1] |
Snap ring
|
|
| 7. |
914533
|
[1] |
Snap ring
|
|
| 8. |
968950
|
[1] |
Support washer
|
|
| 9. |
969072
|
[1] |
Round nut
|
|
| 10. |
958860
|
[2] |
Sealing ring
|
|
| 11. |
804262
|
[1] |
Plug
|
|
| 12. |
838422
|
[1] |
Clutch flange
|
|
| 13. |
947541
|
[1] |
Washer
|
|
| 14. |
973083
|
[1] |
Flange screw
|
|
| 15. |
858464
|
[2] |
Rubber ring
|
|
| 16. |
872238
|
[1] |
Seal flange kit
|
|
| 17. |
|
|
|
|
| 17A. |
941908
|
[4] |
Spring washer
|
|
| 17B. |
970945
|
[4] |
Hexagon screw
|
|
| 17C. |
925256
|
[1] |
O-ring
|
|
| 18. |
814473
|
[2] |
Closure
|
|
| 19. |
838935
|
[1] |
Bracket
|
P
|
| 19. |
838936
|
[1] |
Bracket
|
S.B
|
| 20. |
955897
|
[22] |
Washer
|
|
| 21. |
853878
|
[1] |
Attaching plate
|
|
| 22. |
853829
|
[1] |
Bushing
|
|
| 23. |
914470
|
[1] |
Snap ring
|
|
| 24. |
945996
|
[4] |
Hexagon screw
|
|
| 25. |
941909
|
[4] |
Spring washer
|
|
| 26. |
853978
|
[1] |
Clutch
|
|
| 27. |
853951
|
[6] |
Screw
|
|
| 28. |
853838
|
[1] |
Protecting screen
|
|
| 29. |
940160
|
[6] |
Hexagon screw
|
|
| 30. |
941909
|
[6] |
Spring washer
|
|
| 31. |
940157
|
[6] |
Hexagon nut
|
|
| 32. |
914470
|
[1] |
Snap ring
|
|
| 33. |
853829
|
[1] |
Bushing
|
|
| 34. |
853876
|
[1] |
Attaching plate
|
|
| 35. |
941907
|
[6] |
Spring washer
|
Early type
|
| 36. |
955297
|
[6] |
Hexagon screw
|
Early type
|
| 36. |
945444
|
[6] |
Flange screw
|
Later prod
|
| 37. |
853977
|
[1] |
Clutch
|
(853831)
|
| 38. |
853951
|
[3] |
Screw
|
|
| 39. |
853952
|
[3] |
Screw
|
|
| 40. |
853834
|
[1] |
Spacer sleeve
|
|
| 41. |
853874
|
[1] |
Protecting screen
|
|
| 42. |
941908
|
[4] |
Spring washer
|
Early type
|
| 43. |
970947
|
[4] |
Hexagon screw
|
Early type
|
| 43. |
973083
|
[4] |
Flange screw
|
Later prod
|
