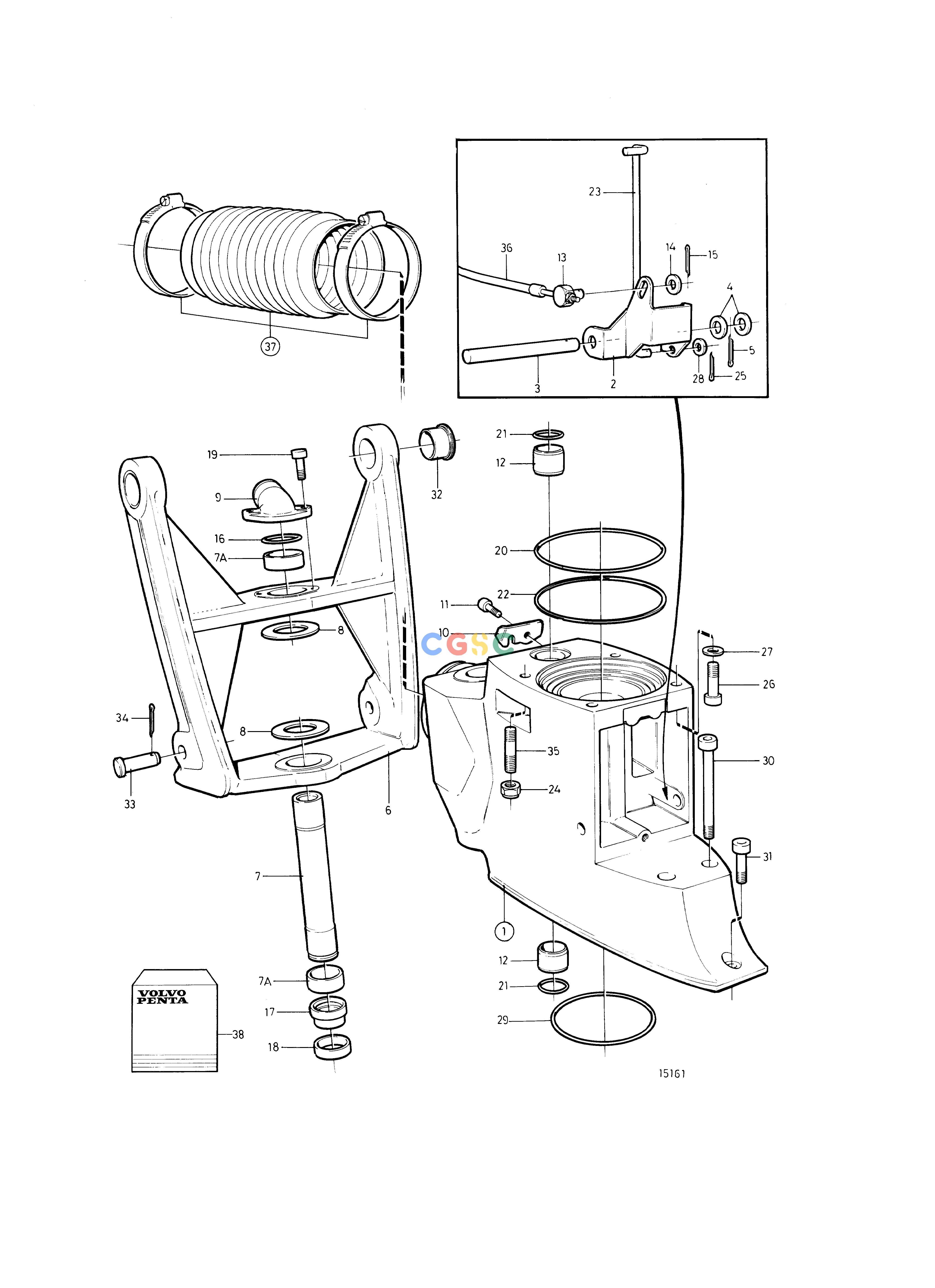

沃尔沃零件查询AD31D; AD31D-A; AD31XD; TAMD31D; TMD31DTransmissionsIntermediate HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025,浏览:
213 次


| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872850
|
[1] |
Intermediate housing
|
|
| 2. |
872977
|
[1] |
Yoke
|
|
| 3. |
897447
|
[1] |
Shaft
|
|
| 4. |
941670
|
[2] |
Washer
|
|
| 5. |
17253
|
[1] |
Split pin
|
Included in gasket kit.
|
| 6. |
872853
|
[1] |
Fork
|
|
| 7. |
872753
|
[1] |
Steering knuckle
|
|
| 7A. |
872756
|
[2] |
Bearing bushing
|
|
| 8. |
3860808
|
[1] |
Shim kit
|
|
| 9. |
872752
|
[1] |
Hose connection
|
|
| 10. |
872940
|
[1] |
Cable attachment
|
|
| 11. |
940168
|
[1] |
Hexagon screw
|
|
| 12. |
872986
|
[2] |
Sleeve
|
|
| 13. |
3852329
|
[1] |
Cube
|
|
| 14. |
940191
|
[1] |
Washer
|
|
| 15. |
17276
|
[1] |
Split pin
|
Included in gasket kit.
|
| 16. |
979254
|
[1] |
O-ring
|
|
| 17. |
873534
|
[1] |
Retainer
|
|
| 18. |
872755
|
[1] |
Sealing ring
|
Included in gasket kit.
|
| 19. |
940169
|
[2] |
Hexagon screw
|
|
| 20. |
925259
|
[1] |
O-ring
|
Included in gasket kit.
|
| 21. |
125017
|
[2] |
O-ring
|
Included in gasket kit.
|
| 22. |
941826
|
[1] |
Shim
|
TH=0,05mm
|
| 22. |
941827
|
[1] |
Shim
|
TH=0,20mm
|
| 22. |
948230
|
[1] |
Shim
|
TH=0,35mm
|
| 23. |
872822
|
[1] |
Control rod
|
|
| 24. |
941885
|
[2] |
Lock nut
|
|
| 25. |
17253
|
[1] |
Split pin
|
Included in gasket kit.
|
| 26. |
959456
|
[2] |
Hex. socket screw
|
|
| 27. |
853095
|
[2] |
Washer
|
|
| 28. |
940191
|
[1] |
Washer
|
|
| 29. |
925256
|
[1] |
O-ring
|
Included in gasket kit.
|
| 30. |
941808
|
[2] |
Hex. socket screw
|
|
| 31. |
941809
|
[1] |
Hex. socket screw
|
|
| 32. |
876507
|
[1] |
Bushing kit
|
Included in gasket kit.
|
| 33. |
872126
|
[2] |
Clevis pin
|
|
| 34. |
967707
|
[2] |
Split pin
|
|
| 35. |
977241
|
[2] |
Stud
|
|
| 36. |
7746610_064
|
|
Control cable
|
|
| 37. |
|
|
|
|
| 38. |
876266
|
[1] |
Gasket kit, upper gear
|
See group 99
|
| 38. |
876267
|
[1] |
Gasket kit, Lower gear
|
See group 99
|
