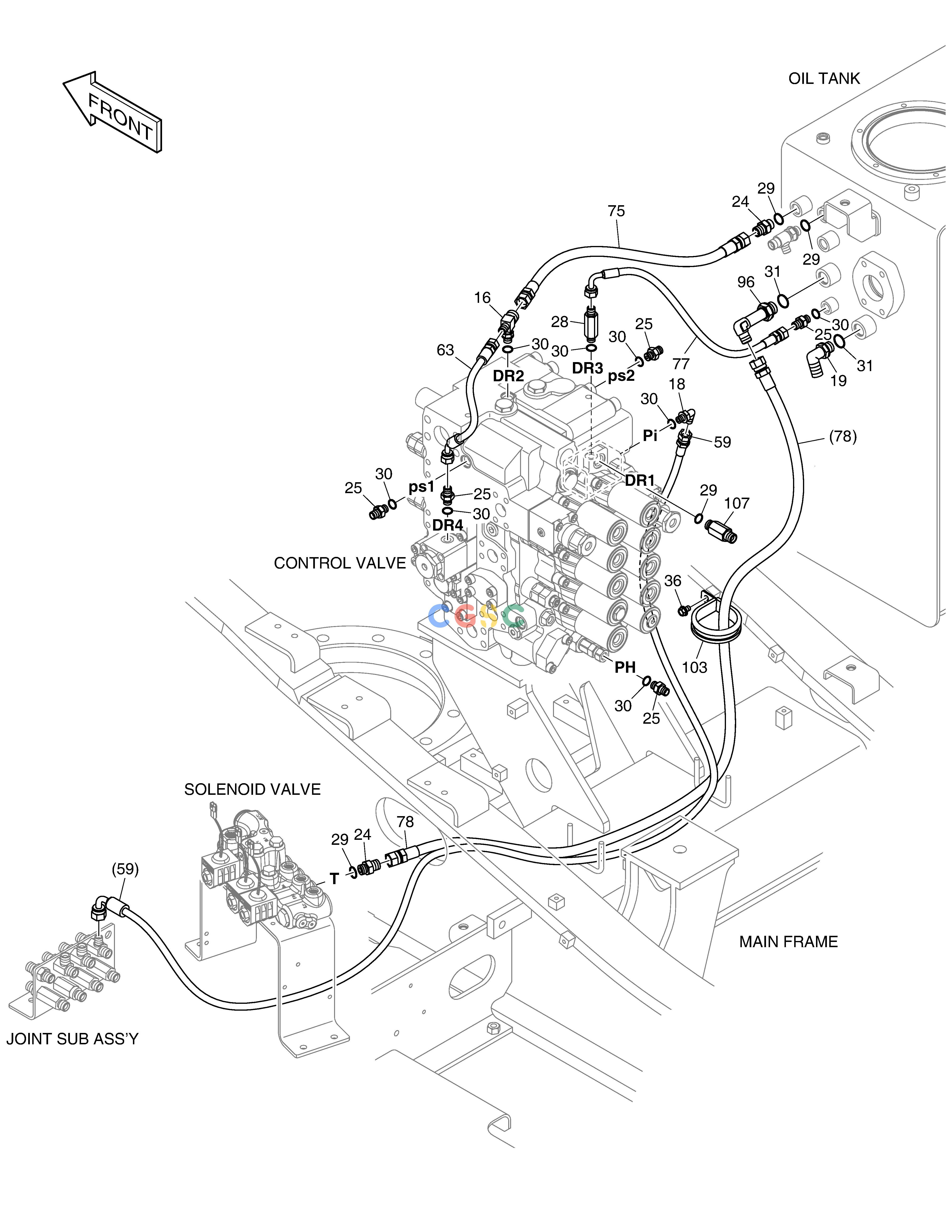

斗山零件查询PILOT PIPING(7) - OTHERS DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
446 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-13885
|
[-] |
|
|
| 103. |
124-00208D8
|
[1] |
CLIP
|
|
| 107. |
2181-1126D27
|
[1] |
ADAPTER
|
|
| 16. |
2181-2281D21
|
[1] |
TEE
|
|
| 18. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 19. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 24. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 25. |
2181-1126D14
|
[5] |
ADAPTER
|
|
| 28. |
2181-1126D103
|
[1] |
ADAPTER
|
|
| 29. |
S8000141
|
[4] |
O-RING
|
|
| 30. |
S8000111
|
[8] |
O-RING
|
|
| 31. |
S8000181
|
[2] |
O-RING
|
|
| 36. |
K1001029
|
[1] |
BOLT
|
|
| 59. |
DS2093999
|
[1] |
|
|
| 59. |
DS2093092
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 63. |
DS2092024
|
[1] |
HOSE
|
|
| 75. |
DS2094559
|
[1] |
|
|
| 77. |
DS2093203
|
[1] |
HOSE
|
|
| 78. |
DS2094014
|
[1] |
HOSE
|
|
| 96. |
2181-1702D43
|
[1] |
ELBOW PF3/8, 1/2
|
|
