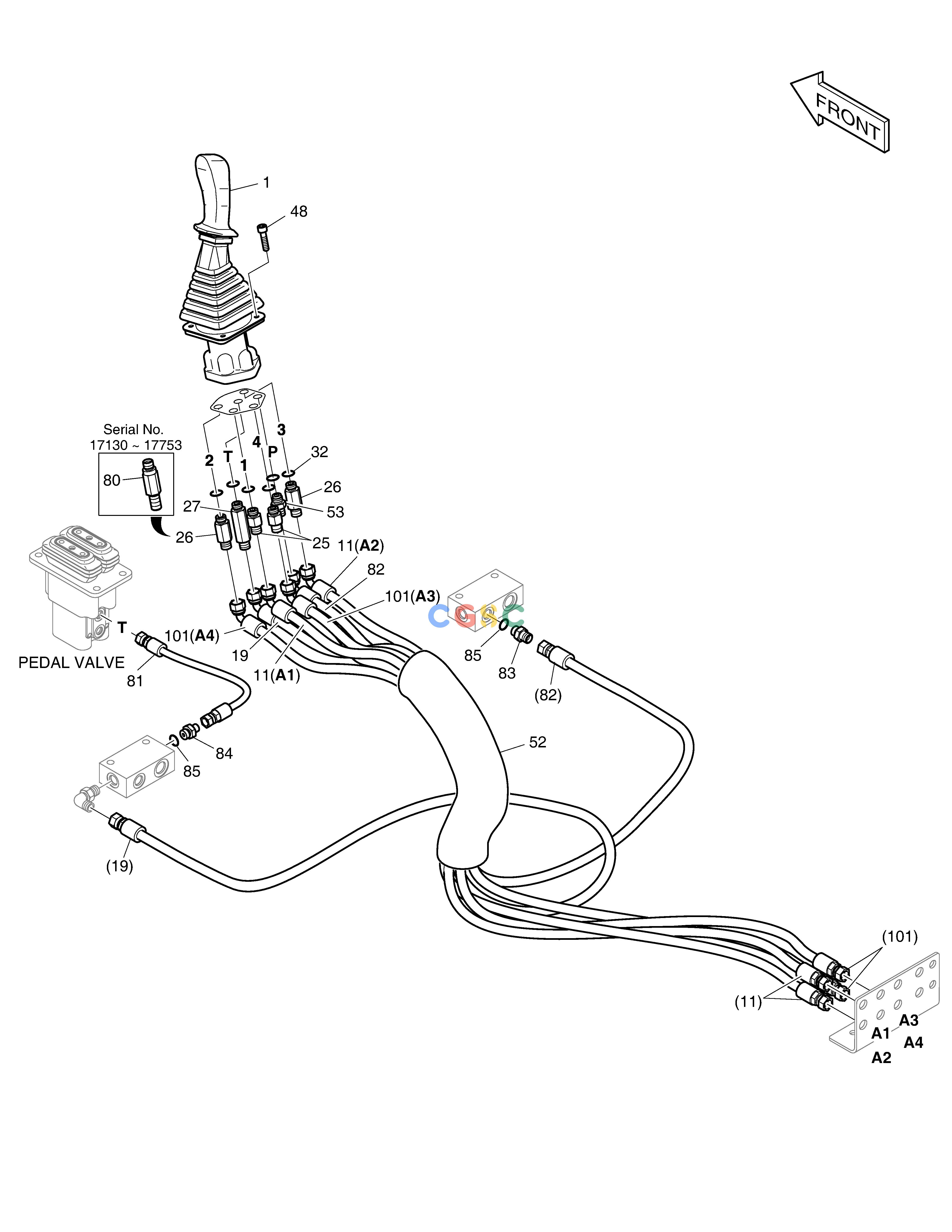

斗山零件查询PILOT PIPING(8) - JOYSTICK(L.H) DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02892K
|
[-] |
|
|
| -. |
420212-02892L
|
[-] |
|
|
| -. |
420212-02892M
|
[-] |
|
|
| 1. |
410113-00124B
|
[1] |
|
|
| 101. |
DS2095001
|
[2] |
HOSE
|
|
| 11. |
DS2095001
|
[2] |
HOSE
|
|
| 19. |
DS2095004
|
[1] |
HOSE
|
|
| 25. |
DS2213165
|
[2] |
ADAPTER
|
|
| 26. |
2181-1126D27
|
[1] |
ADAPTER
|
|
| 26. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 27. |
2181-1126D28
|
[1] |
ADAPTER
|
|
| 32. |
S8000141
|
[6] |
O-RING
|
|
| 48. |
S2205066
|
[4] |
BOLT
|
|
| 52. |
K1003945
|
[1] |
PROTECTOR
|
|
| 53. |
430201-00113
|
[1] |
ADAPTER
|
|
| 80. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 81. |
DS2094006
|
[1] |
HOSE
|
|
| 82. |
DS2095003
|
[1] |
HOSE
|
|
| 83. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 84. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 85. |
S8000141
|
[2] |
O-RING
|
|
