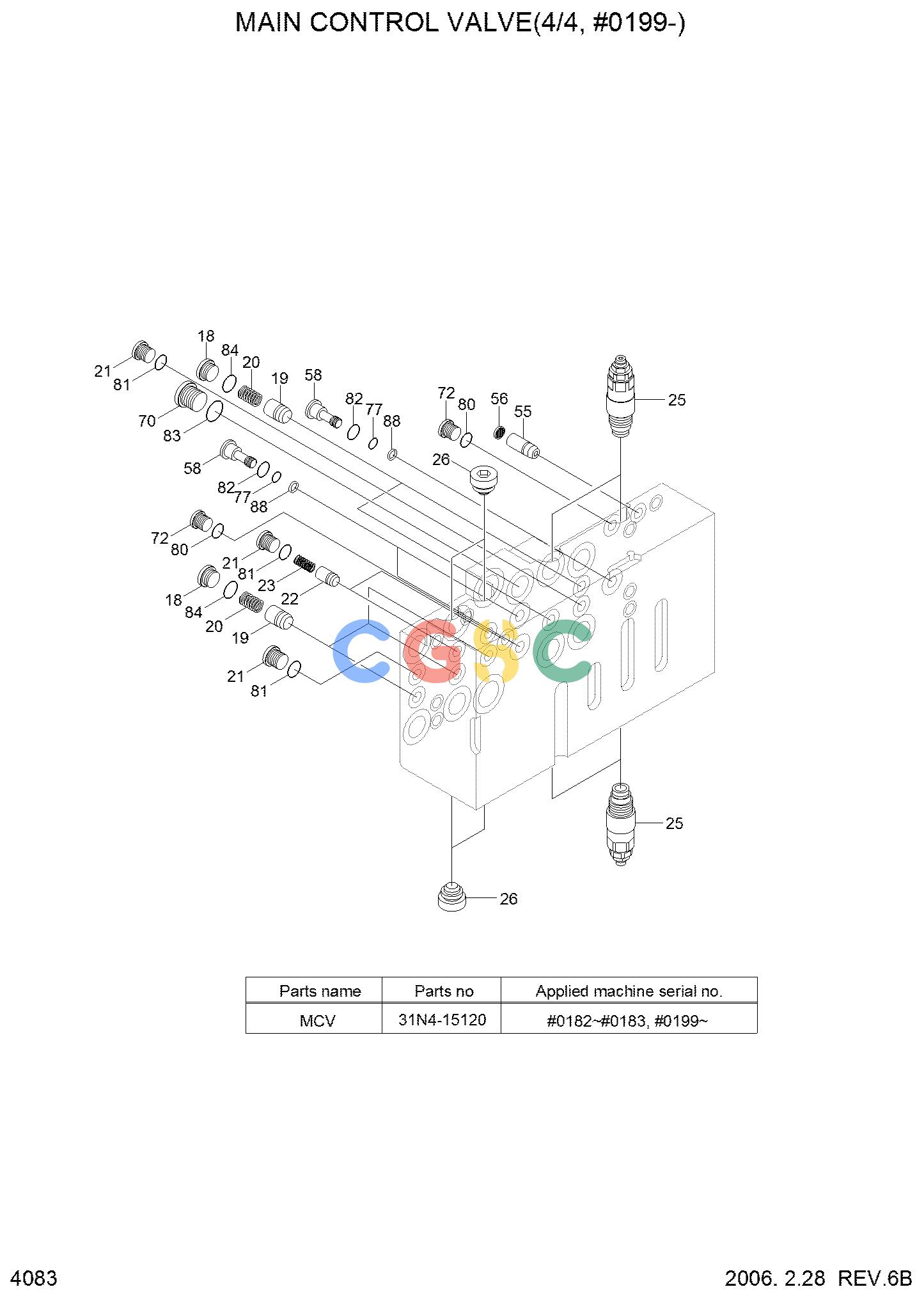

现代零件查询R140W-7 MAIN CONTROL VALVE(4/4, #0199-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
872 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
MAIN CONTROL VALVE
|
|
| 18. |
XKBF-00018
|
[5] |
PLUG
|
|
| 19. |
XKBF-00019
|
[5] |
POPPET 1
|
|
| 20. |
XKBF-00020
|
[5] |
SPRING
|
|
| 21. |
XKBF-00021
|
[4] |
PLUG
|
|
| 22. |
XKBF-00022
|
[2] |
POPPET 2
|
|
| 23. |
XKBF-00023
|
[2] |
SPRING
|
|
| 25. |
XKBF-00486
|
[4] |
RELIEF VALVE-OVERLOAD
|
|
| 26. |
XKBF-00487
|
[4] |
PLUG-RELIEF VALVE
|
|
| 55. |
XKBF-00055
|
[1] |
RESTRICTOR
|
|
| 56. |
XKBF-00056
|
[1] |
FILTER-COIN TYPE
|
|
| 58. |
XKBF-00058
|
[3] |
PLUG
|
|
| 70. |
XKBF-00061
|
[1] |
PLUG-ORIFICE
|
|
| 72. |
XKBF-00058
|
[2] |
PLUG
|
|
| 77. |
XKBF-00077
|
[3] |
O-RING
|
|
| 80. |
XKBF-00080
|
[2] |
O-RING
|
|
| 81. |
XKBF-00081
|
[4] |
O-RING
|
|
| 82. |
XKBF-00082
|
[3] |
O-RING
|
|
| 83. |
XKBF-00083
|
[1] |
O-RING
|
|
| 84. |
XKBF-00084
|
[5] |
O-RING
|
|
| 88. |
XKBF-00088
|
[3] |
BACK-UP RING
|
|
