现代零件查询R140W-7 MAIN CONTROL VALVE(3/4, #0199-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
986 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
|

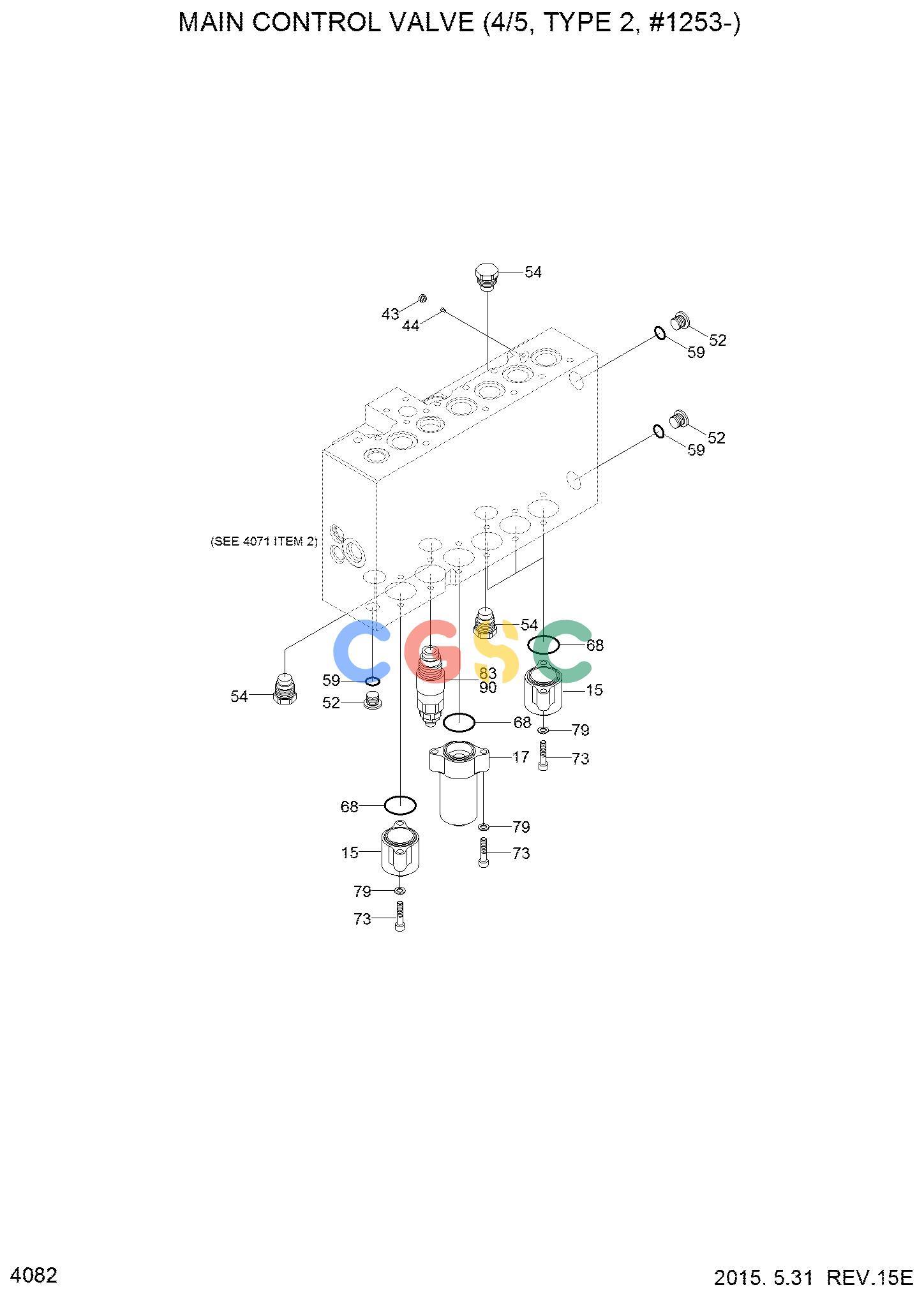

MAIN CONTROL VALVE
|
|
| N2. |
XKBF-00478
|
[1] |
HOUSING-P2
|
|
| 3. |
XKBF-00479
|
[1] |
SPOOL ASSY
|
|
| 4. |
XKBF-00480
|
[1] |
SPOOL ASSY
|
|
| 6. |
XKBF-00354
|
[1] |
SPOOL ASSY
|
|
| 8. |
XKBF-00355
|
[1] |
SPOOL ASSY
|
|
| 9. |
XKBF-00356
|
[1] |
SPOOL ASSY
|
|
| 11. |
XKBF-00483
|
[1] |
SPOOL ASSY
|
|
| 13. |
XKBF-00011
|
[1] |
SPOOL ASSY
|
|
| 13A. |
XKBF-00011
|
[1] |
SPOOL ASSY
|
|
| 13A. |
XKBF-00699
|
[1] |
SPOOL ASSY
|
|
| 15. |
XKBF-00013
|
[7] |
COVER-PILOT
|
|
| 16. |
XKBF-00014
|
[4] |
COVER-PILOT
|
|
| 17. |
XKBF-00015
|
[2] |
COVER-PILOT
|
|
| K28. |
XKBF-00100
|
[1] |
LOCK VALVE KIT-A
|
|
| 31. |
XKBF-00016
|
[1] |
BLOCK-HOLDING
|
|
| 40. |
XKBF-00040
|
[1] |
PISTON 1
|
|
| 41. |
XKBF-00041
|
[1] |
GUIDE-PISTON
|
|
| 42. |
XKBF-00042
|
[1] |
SPRING-LOCK VALVE
|
|
| 43. |
XKBF-00043
|
[1] |
PISTON 2
|
|
| 44. |
XKBF-00044
|
[1] |
SOCKET-LOCK VALVE
|
|
| 45. |
XKBF-00700
|
[1] |
SPOOL-LOCK VALVE
|
|
| N46. |
XKBF-00046
|
[1] |
SPRING-LOCK VALVE
|
|
| N47. |
XKBF-00047
|
[1] |
PLUG-LOCK VALVE
|
|
| 69. |
XKBF-00069
|
[1] |
PLUG-SOCKET HEAD
|
|
| 71. |
XKBF-00060
|
[1] |
PLUG
|
|
| 73. |
XKBF-00021
|
[1] |
PLUG
|
|
| 76. |
XKBF-00076
|
[1] |
O-RING
|
|
| 77. |
XKBF-00077
|
[1] |
O-RING
|
|
| 78. |
XKBF-00078
|
[1] |
O-RING
|
|
| 79. |
XKBF-00079
|
[1] |
O-RING
|
|
| 82. |
XKBF-00082
|
[1] |
O-RING
|
|
| 87. |
XKBF-00087
|
[1] |
RING-BACK UP
|
|
| 89. |
XKBF-00089
|
[1] |
RING-BACK UP
|
|
| K29. |
XKBF-00101
|
[1] |
LOCK VALVE KIT-B
|
|
| 34. |
XKBF-00034
|
[1] |
VALVE-LOCK
|
|
| 35. |
XKBF-00035
|
[1] |
RESTRICTOR-LOCK VLV
|
|
| N36. |
XKBF-00036
|
[1] |
SPRING-LOCK VALVE
|
|
| 37. |
XKBF-00037
|
[1] |
HOLDER-SPRING
|
|
| 38. |
XKBF-00908
|
[1] |
POPPET-PILOT
|
|
| 39. |
XKBF-00909
|
[1] |
SEAT-POPPET
|
|
| 77. |
XKBF-00077
|
[1] |
O-RING
|
|
| 84. |
XKBF-00084
|
[1] |
O-RING
|
|
| 87. |
XKBF-00087
|
[1] |
RING-BACK UP
|
|
| 60. |
XKBF-00071
|
[1] |
PLUG
|
|
| 72. |
XKBF-00058
|
[1] |
PLUG
|
|
| 73. |
XKBF-00021
|
[4] |
PLUG
|
|
| 76. |
XKBF-00076
|
[1] |
O-RING
|
|
| 78. |
XKBF-00078
|
[4] |
O-RING
|
|
| 80. |
XKBF-00080
|
[1] |
O-RING
|
|
| 81. |
XKBF-00081
|
[1] |
O-RING
|
|
| 86. |
XKBF-00086
|
[1] |
BACK-UP RING
|
|
| 90. |
XKBF-00090
|
[14] |
O-RING
|
|
| N91. |
XKBF-00091
|
[26] |
BOLT-SOCKET HEAD
|
|
| N. |
@
|
[AR] |
NOT INDIVIDUALLY SUPPLIED
|
|
