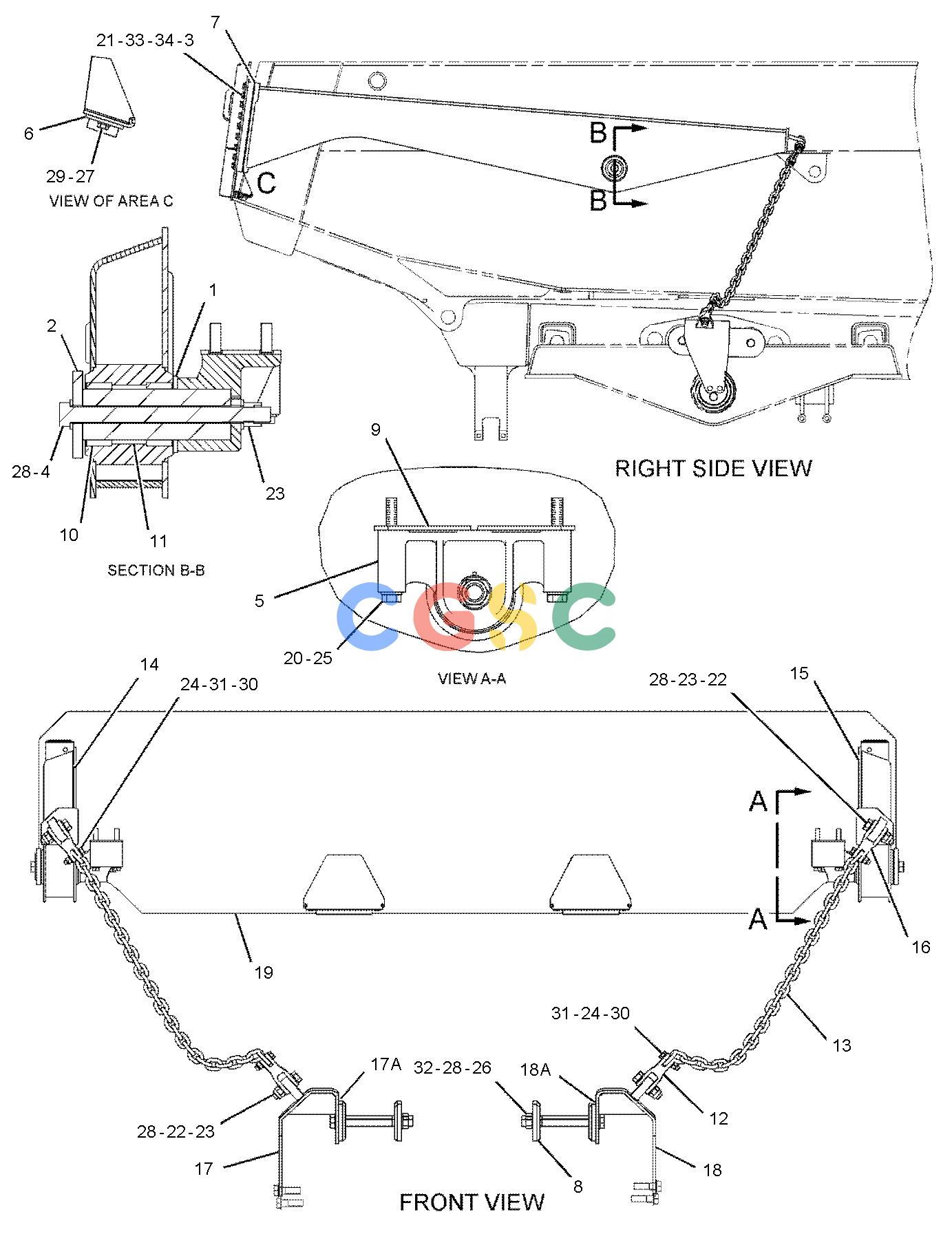

卡特零件查询（725） 233-0822: TAILGATE GP
广数供应链运营团队, 14 02月, 2025，浏览：
389 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3U-2837 | [2] | PAD-THRUST | |
| 2. | 4U-3165 | [2] | DISC | |
| 4. | 9X-8913M | [2] | BOLT(M24X3X300-MM) | |
| 5. | 233-1363 | [2] | PIVOT(TAILGATE) | |
| 6. | 154-4812 | [2] | ABSORBER-SHOCK | |
| 7. | 154-6369B | [4] | SHIM(3-MM THK) | |
| 8. | 160-0185 | [6] | BOSS | |
| 9. | 167-9033B | [4] | SHIM(6-MM THK) | |
| 10. | 192-9067 | [4] | BUSHING | |
| 11. | 192-9068 | [2] | PIN | |
| 12. | 225-8754 | [2] | LINK AS(LONG) | |
| 13. | 225-8755 | [2] | CHAIN AS | |
| 14. | 227-4058 | [1] | ARM AS(SCISSORS, RH) | |
| 15. | 227-4059 | [1] | ARM AS(SCISSORS, LH) | |
| 16. | 227-4062 | [2] | LINK AS(SHORT) | |
| 17. | 233-3046 | [1] | ANCHOR AS(RH) | |
| 18. | 233-3047 | [1] | ANCHOR AS(LH) | |
| 19. | 234-3232 | [1] | PLATE AS | |
| 21. | 3E-9411 | [18] | WASHER-HARD(17.5X38X6-MM THK) | |
| 22. | 7X-2489M | [4] | BOLT(M24X3X100-MM) | |
| 23. | 6V-7676M | [6] | NUT(M24X3-THD) | |
| 24. | 7X-2554M | [22] | BOLT(M16X2X70-MM) | |
| 25. | 7X-2557M | [8] | BOLT(M16X2X140-MM) | |
| 26. | 8T-4001M | [4] | NUT(M24X3-THD) | |
| 27. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 28. | 8T-4167 | [20] | WASHER-HARD(26X44X4-MM THK) | |
| 29. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 30. | 8T-4778M | [4] | LOCKNUT(M16X2-THD) | |
| 31. | 9X-8257 | [16] | WASHER(17.5X30X3.5-MM THK) | |
| 32. | 9X-8477M | [4] | BOLT(M24X3X280-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
