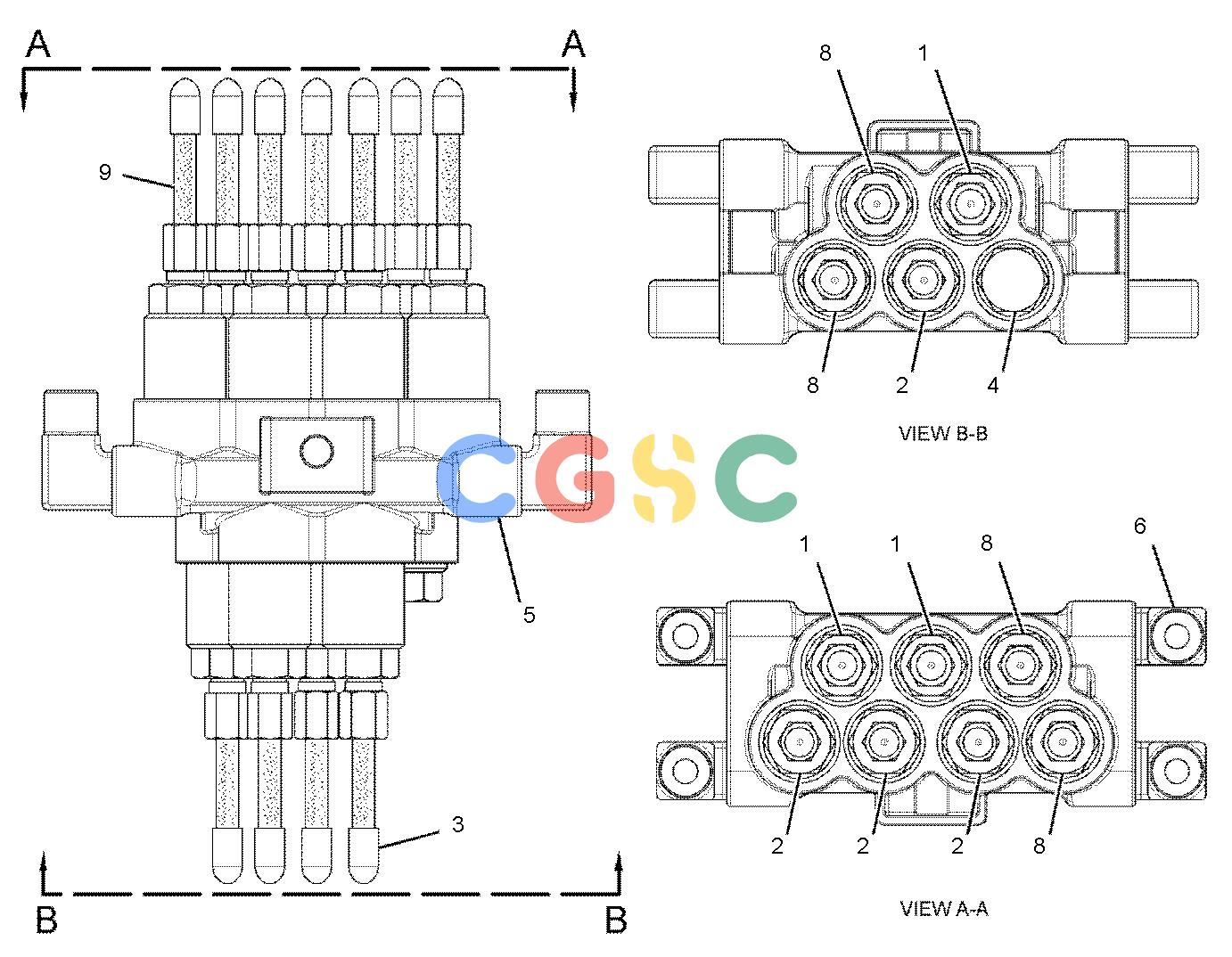

卡特零件查询（725） 220-7497: VALVE GP-LUBE DISTRIBUTION
广数供应链运营团队, 14 02月, 2025，浏览：
610 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 177-3517 | [3] | INJECTOR AS-GREASE(NO. 4) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 2. | 177-3518 | [4] | INJECTOR AS-GREASE(NO. 8) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 3. | 177-3524 | [11] | PLUG | |
| 4. | 178-2734 | [1] | PLUG | |
| 5. | 220-8581 | [1] | BLOCK(12-INJECTOR) | |
| 6. | 221-1583 | [4] | COUPLING | |
| 8. | 177-3516 | [4] | INJECTOR AS-GREASE(NO. 3) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 9. | 161-9030E | | HOSE(2090-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
