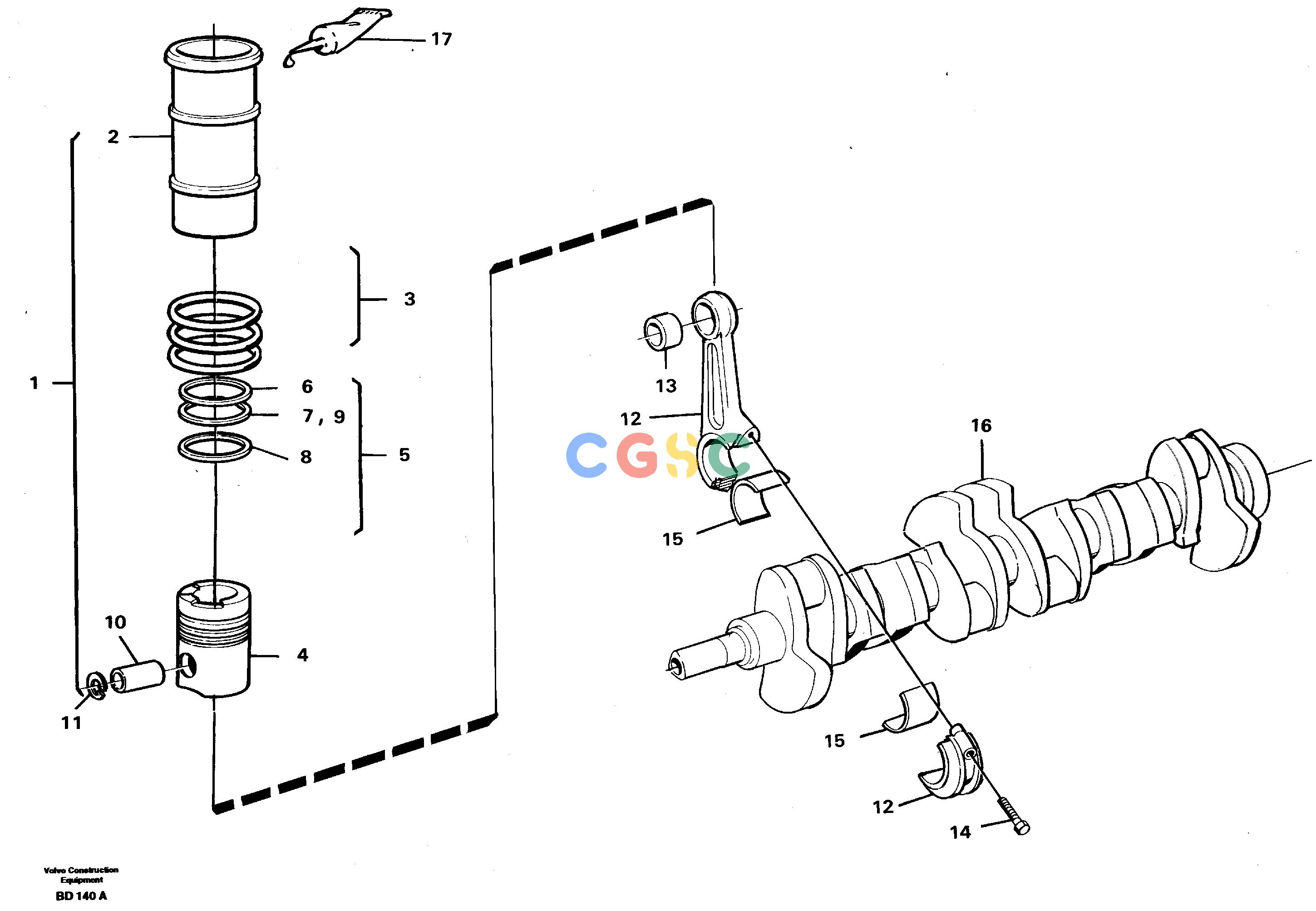

沃尔沃零件查询A30 VOLVO BM Cylinder liner, piston and connecting rodVOLVO BM A30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE275630
|
[6] |
Cylinder liner kit
|
TD102KF, TD102KH
|
| |
VOE275638
|
[6] |
Cylinder liner kit
|
TD102KFE
|
| 2. |
|
[0006] |
Cylinder liner
|
|
| 3. |
VOE271157
|
[0006] |
Sealing kit
|
|
| 4. |
|
[0006] |
Piston
|
|
| 5. |
VOE275084
|
[0006] |
Piston ring kit
|
|
| 6. |
|
[0006] |
Compress. ring, upper
|
|
| 7. |
|
[0006] |
Oil ring
|
|
| 8. |
|
[0006] |
Compression ring,lowe
|
|
| 9. |
|
[0006] |
Spring - oil ring
|
|
| 10. |
VOE8194539
|
[0006] |
Gudgeon pin
|
|
| 11. |
VOE417466
|
[0006] |
Lock ring
|
|
| 12. |
VOE1545299
|
[0006] |
Connecting rod
|
|
| 13. |
VOE1545302
|
[0006] |
Bushing
|
|
| 14. |
VOE1545479
|
[0012] |
Screw
|
|
| 15. |
VOE270124
|
[0006] |
Big End Brg Kit
|
STD
|
| |
VOE270125
|
[0006] |
Big End Brg Kit
|
0,25 U SZ
|
| |
VOE270126
|
[0006] |
Big End Brg Kit
|
0,50 U SZ
|
| |
VOE270127
|
[0006] |
Big End Brg Kit
|
0,75 U SZ
|
| |
VOE270128
|
[0006] |
Big End Brg Kit
|
1,00 U SZ
|
| 16. |
|
[0001] |
Crankshaft
|
|
| 17. |
VOE1161277
|
[REQ] |
Sealant
|
|
