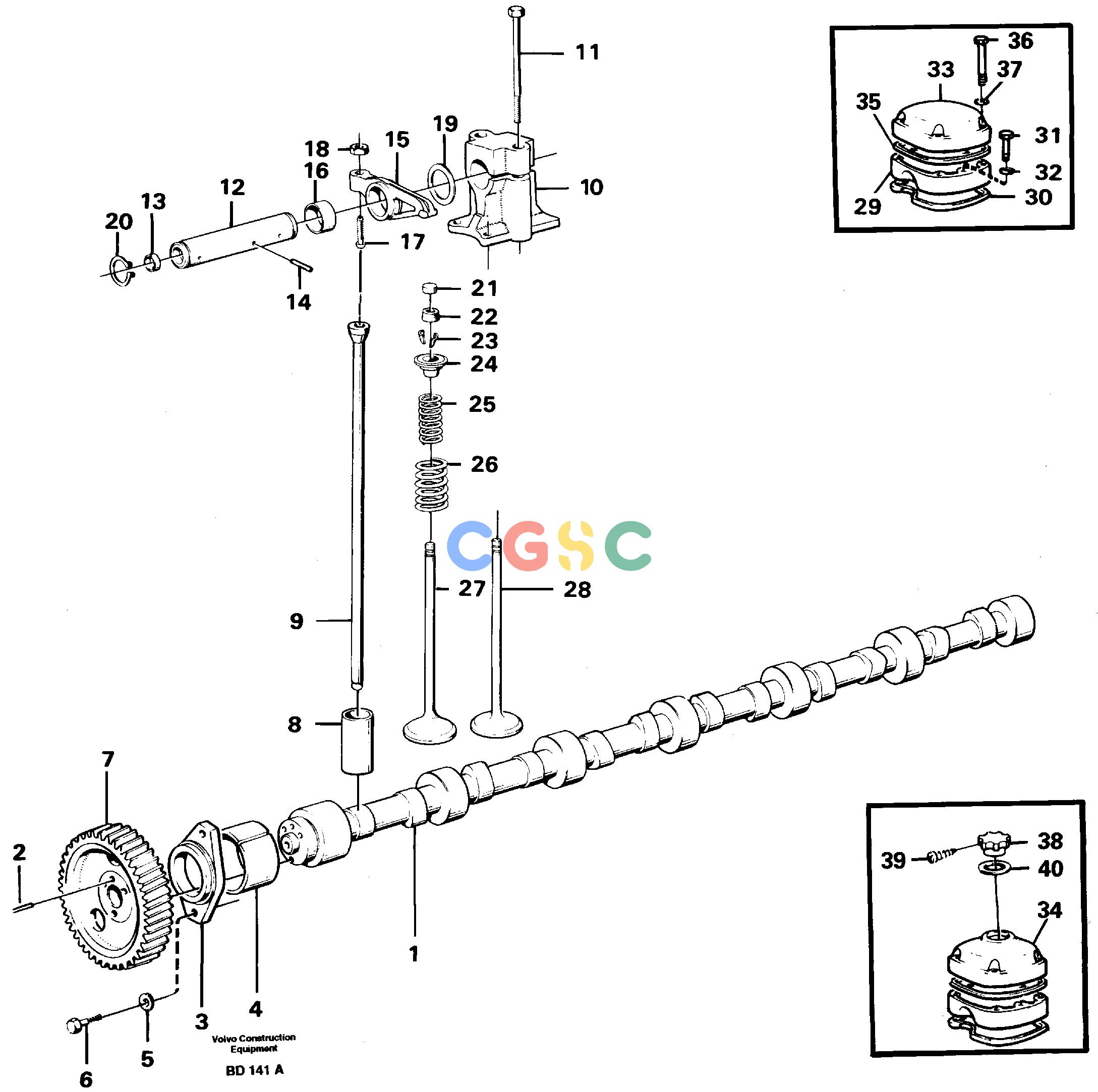

沃尔沃零件查询A30 VOLVO BM Valve mechanismVOLVO BM A30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1545071
|
[1] |
Camshaft
|
ENG - 250428
|
| |
VOE479450
|
[1] |
Camshaft
|
ENG 250429 -
|
| 2. |
VOE950588
|
[1] |
Pin
|
|
| 3. |
VOE465789
|
[1] |
Flange
|
|
| 4. |
|
[7] |
Bushing
|
|
| 5. |
VOE13942336
|
[2] |
Spring washer
|
|
| 6. |
VOE13940115
|
[2] |
Screw
|
|
| 7. |
|
[1] |
Camshaft gear
|
|
| 8. |
VOE479863
|
[12] |
Tappet
|
|
| 9. |
VOE467820
|
[12] |
Push rod
|
|
| 10. |
VOE422018
|
[6] |
Bearing Bracket
|
|
| 11. |
VOE7422428
|
[12] |
Screw
|
|
| 12. |
VOE422019
|
[6] |
Rocker arm shaft
|
|
| 13. |
VOE946778
|
[12] |
Cap plug
|
|
| 14. |
VOE950499
|
[6] |
Pin
|
|
| 15. |
VOE422063
|
[0012] |
Rocker arm
|
|
| 16. |
VOE422066
|
[0012] |
Bushing
|
|
| 17. |
VOE422993
|
[0012] |
Bolt
|
|
| 18. |
VOE940175
|
[0012] |
Nut
|
|
| 19. |
VOE941488
|
[0012] |
Washer
|
|
| 20. |
VOE914459
|
[0012] |
Snap ring
|
|
| 21. |
VOE478074
|
[0012] |
Valve cap
|
|
| 22. |
VOE417135
|
[0012] |
Protecting ring
|
|
| 23. |
VOE468305
|
[0024] |
Valve sleeve
|
|
| 24. |
VOE467506
|
[0012] |
Washer
|
|
| 25. |
VOE467335
|
[0012] |
Valve spring
|
|
| 26. |
VOE467334
|
[12] |
Valve spring
|
|
| 27. |
VOE467855
|
[6] |
Exhaust valve
|
|
| 28. |
VOE479204
|
[6] |
Inlet valve
|
|
| 29. |
VOE469431
|
[6] |
Cover
|
|
| 30. |
VOE424693
|
[6] |
Gasket
|
|
| 31. |
VOE13940159
|
[12] |
Screw
|
|
| 32. |
VOE13955894
|
[12] |
Washer
|
|
| 33. |
VOE469432
|
[4] |
Cover
|
|
| 34. |
VOE469457
|
[2] |
Cover
|
|
| 35. |
VOE424694
|
[6] |
Gasket
|
|
| 36. |
VOE955530
|
[24] |
Hexagon screw
|
|
| 37. |
VOE13941907
|
[24] |
Washer
|
|
| 38. |
VOE848261
|
[1] |
Breather cap
|
SER NO - 1585
|
| |
VOE421753
|
[1] |
Filler cap
|
SER NO 1586 -
|
| 39. |
VOE955126
|
[1] |
Cross recessed screw
|
|
| 40. |
VOE1275379
|
[1] |
Gasket
|
|
