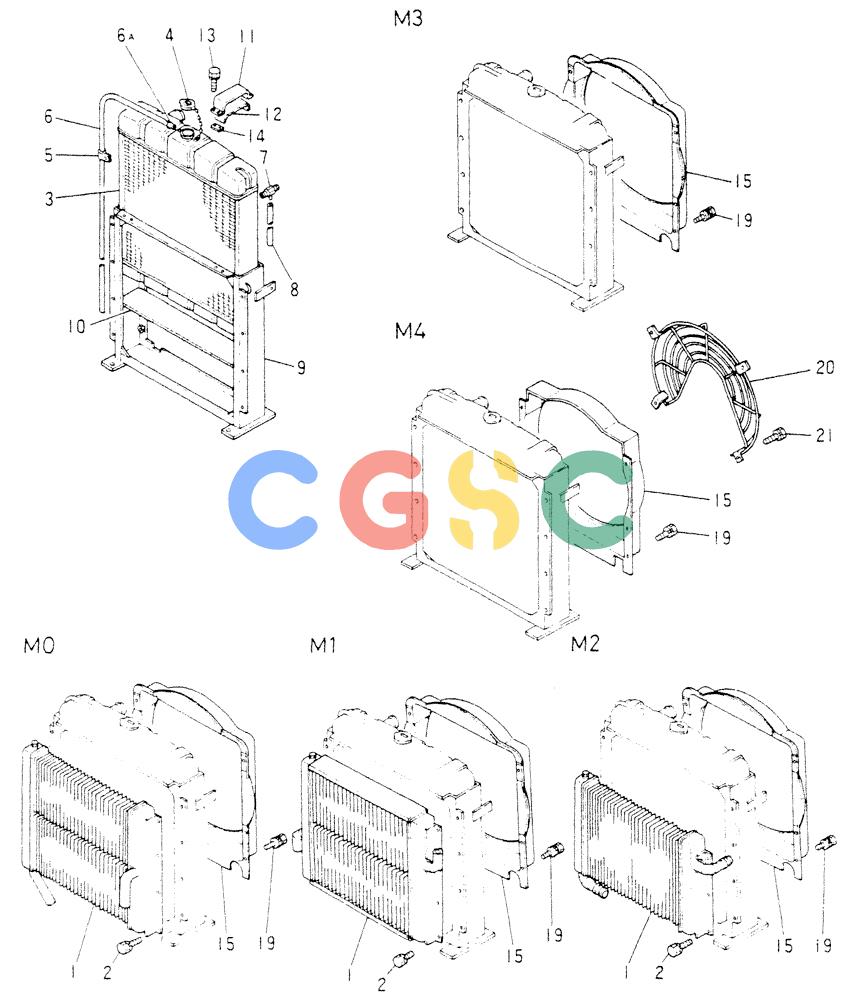

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE FOR K904C, K907B, K907C & YS750-2 (1/77-12/06) (06-001) - RADIATOR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
361 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-19. | VAME039158 | [1] | RADIATOR & OIL COOLER ASSY (FOR M0 ONLY) FF: PARTS | |
| 1-19. | VAME039160 | [1] | RADIATOR & OIL COOLER ASSY (FOR M1 ONLY) FF: PARTS | |
| 1-19. | VAME039181 | [1] | RADIATOR & OIL COOLER ASSY (FOR M2 ONLY) FF: PARTS | |
| 1. | VA3084783070 | [1] | OIL COOLER ASSY (FOR M0 ONLY) FF: PARTS | |
| 1. | VAME039529 | [1] | OIL COOLER ASSY (FOR M1 ONLY) | |
| 1. | VAME039188 | [1] | OIL COOLER ASSY (FOR M2 ONLY) | |
| 2. | VAMF243651 | [6] | BOLT | KOBBOLT,W/WSR 8X20 (FOR M2 ONLY) |
| 2. | VAMF243649 | [8] | BOLT | KOBB0LT,W/WSR 8X16 (FOR M1 ONLY) |
| 3-19. | VAME039162 | [1] | RADIATOR ASSY (FOR M0,M1,M2 ONLY | |
| 3-19. | VAME039722 | [1] | RADIATOR ASSY (FOR M3 ONLY) | |
| 3-19. | VAME038867 | [1] | RADIATOR ASSY (FOR M4 ONLY) | |
| 3-14. | VAME039820 | [1] | RADTATOR SUB ASSY 17.4L | |
| 3. | VAME039818 | [1] | RADIATOR CORE ASSY | |
| . . | VAMC000039 | [1] | RADIATOR CAP | KOBCAP,PRESS |
| . . | VA3164705800 | [1] | CHAIN | |
| 5. | VAME008204 | [2] | CLIP | |
| 6. | VA3084706040 | [1] | PIPE,OVER FLOW .L = 1500 | |
| 6A. | VAME059255 | [1] | CLIP | |
| 7. | VA3164705200 | [1] | COCK,DRAIN | |
| 8. | VA3174780500 | [1] | PIPE,DRAIN L=150 | |
| 9. | VAME039823 | [1] | FRAME | |
| 10. | VA3084732200 | [1] | FOAM PAD SEAT,RUBBER | FOAM PAD SEAT,RUBBER |
| 11. | VA3084732300 | [2] | CLAMP | |
| 12. | VA3084732400 | [2] | SEAT,RUBBER | |
| 13. | VAMF240053 | [8] | BOLT | KOBBOLT,W/WSR 8X20 |
| 14. | VAME008205 | [1] | SHIM | |
| 15. | VAME039164 | [1] | SHROUD,FAN (FOR M0,M1,M2 ONLY) | |
| 15. | VAME019247 | [1] | SHROUD,FAN (FOR M3 ONLY) | |
| 15. | VAME038871 | [1] | SHROUD,FAN (FOR M4 ONLY) | |
| 19. | VAMF243649 | [6] | BOLT | KOBBOLT,W/WSR 8X16 |
| 20. | VA3184796200 | [1] | NET,WIRE (FOR M4 ONLY) FF: PARTS | |
| 21. | VAMF240078 | [4] | BOLT,W/WSR 10X16 (FOR M4 ONLY) | |
