神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE FOR K904C, K907B, K907C & YS750-2 (1/77-12/06) (06-002) - RADIATOR (P/N-ME039157) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
825 次

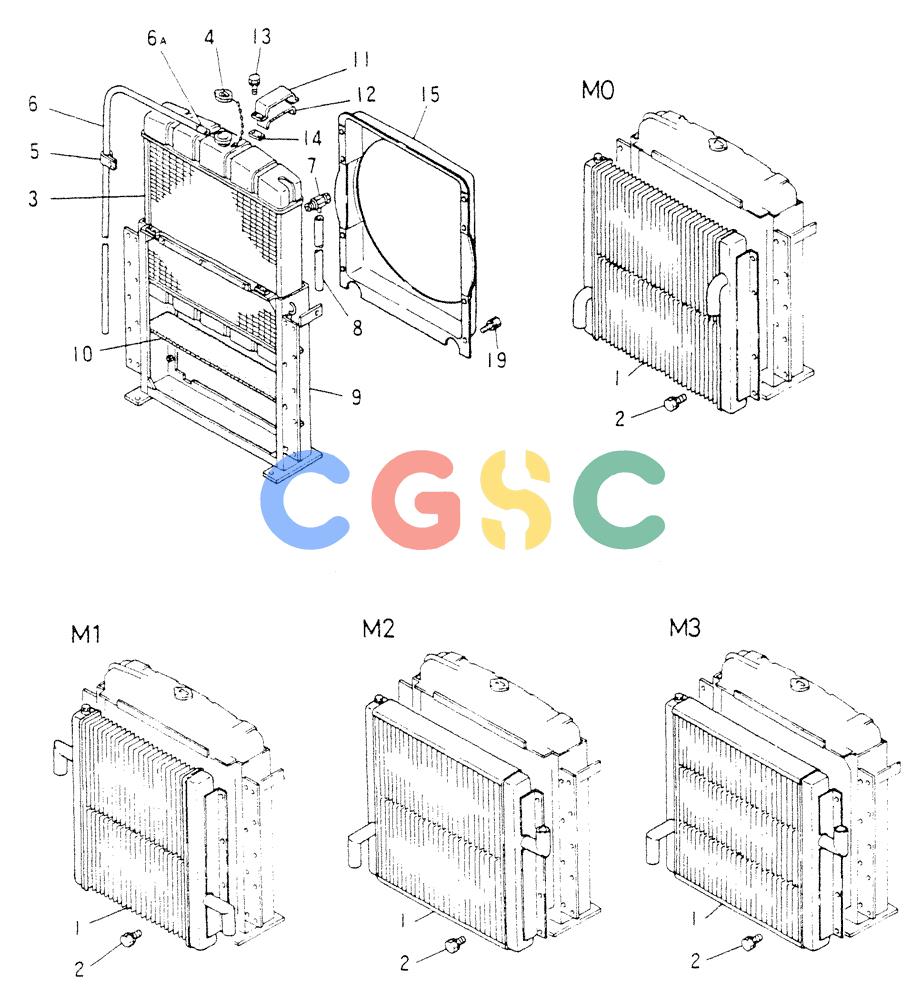

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-19. | VAME039157 | [1] | RADIATOR & OIL COOLER ASSY (FOR M0 ONLY) FF: PARTS | |
| 1-19. | VAME039159 | [1] | RADIATOR & OIL COOLER ASSY (FOR M1 ONLY) FF: PARTS | |
| 1-19. | VAME039161 | [1] | RADIATOR & OIL COOLER ASSY (FOR M2 ONLY) FF: PARTS | |
| 1-19. | VAME038866 | [1] | RADIATOR & OIL COOLER ASSY (FOR M3 ONLY) FF: PARTS | |
| 1. | VAME059189 | [1] | OIL COOLER ASSY (FOR M0 ONLY) FF: PARTS | |
| 1. | VAME039519 | [1] | OIL COOLER ASSY (FOR M1 ONLY) | |
| 1. | VAME039516 | [1] | OIL COOLER ASSY (FOR M2 ONLY) | |
| 1. | VAME039521 | [1] | OIL COOLER ASSY (FOR M3 ONLY) | |
| 2. | VAMF243680 | [8] | BOLT,W/USR 10X25 (FOR M0,M2,M3 ONLY) | |
| 2. | VAMF243651 | [8] | BOLT | KOBBOLT,W/WSR 8X20 (FOR M1 ONLY) |
| 3-14. | VAME039165 | [1] | RADIATOR SUB ASSY 18L | |
| 3. | VAME039517 | [1] | RADIATOR CORE ASSY | |
| 4. | VAMC000039 | [1] | RADIATOR CAP | KOBCAP,PRESS |
| . . | VA3164705800 | [1] | CHAIN | |
| 5. | VAME008204 | [2] | CLIP | |
| 6. | VA3084706040 | [1] | PIPE,OVER FLOW L=1500 | |
| 6A. | VAME059255 | [1] | CLIP | |
| 7. | VA3164705200 | [1] | COCK,DRAIN | |
| 8. | VA3174780500 | [1] | PIPE,DRAIN L=150 | |
| 9. | VAME039166 | [1] | FRAME | |
| 10. | VA3084732200 | [1] | FOAM PAD SEAT,RUBBER | FOAM PAD SEAT,RUBBER |
| 11. | VA3084732300 | [2] | CLAMP | |
| 12. | VA3084732400 | [2] | SEAT,RUBBER | |
| 13. | VAMF240053 | [8] | BOLT | KOBBOLT,W/WSR 8X20 |
| 14. | VAME008205 | [1] | SHIM | |
| 15. | VAME039163 | [1] | SHROUD,FAN | |
| 19. | VAMF240051 | [8] | BOLT | KOBBOLT,W/WSR 8X16 (FOR M0,M1,M2 ONLY) |
| 19. | VAMF243649 | [8] | BOLT | KOBBOLT,W/WSR 8X16 (FOR M3 ONLY) |
