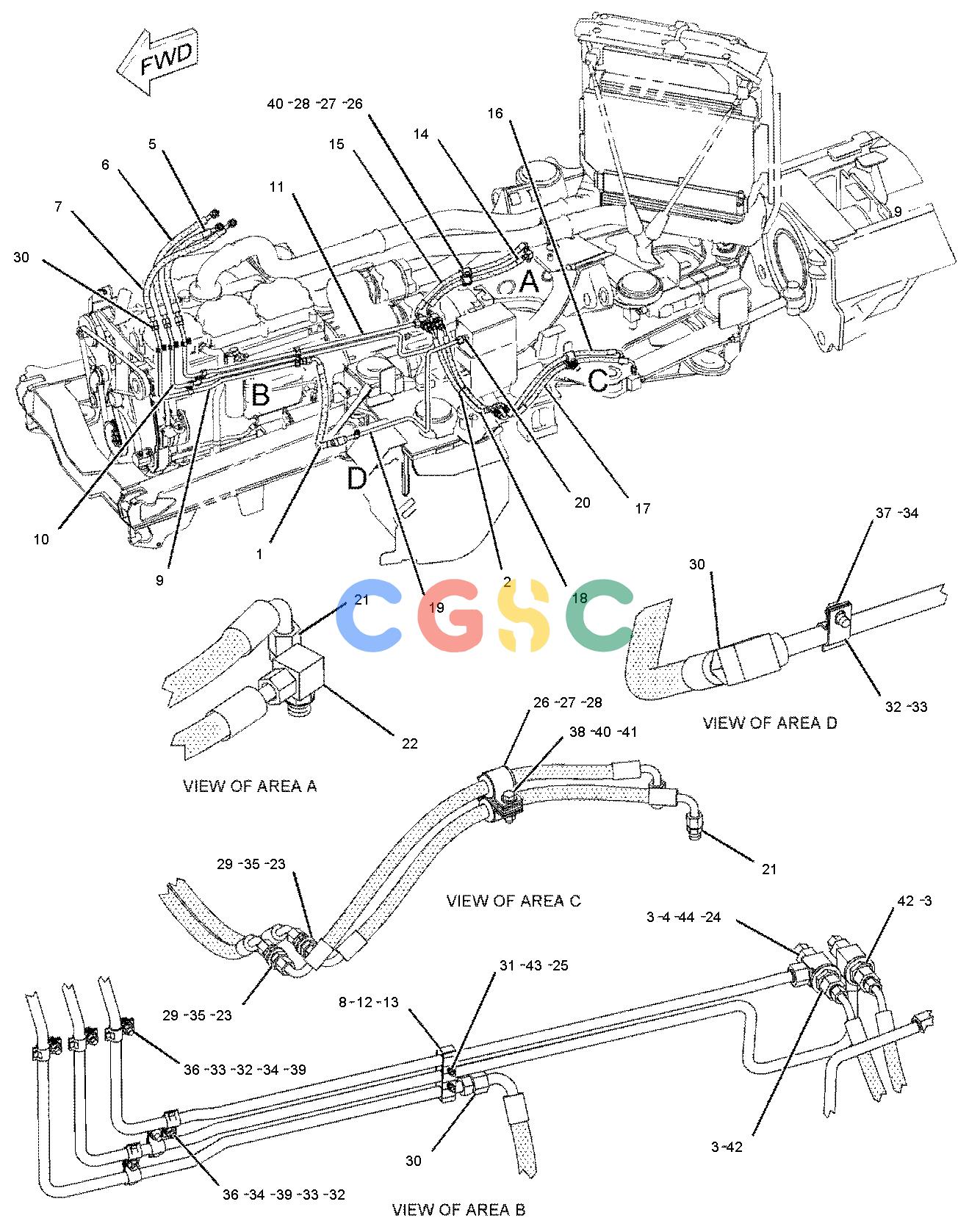

卡特零件查询（725） 234-5605: LINES GP-STEERING
广数供应链运营团队, 14 02月, 2025，浏览：
896 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4E-5526I | [1] | HOSE AS | |
| 2. | 6U-0455 | [1] | STRAP | |
| 3. | 148-8418 | [4] | REDUCER AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8942 | [1] | REDUCER-O-RING | |
| 4. | 164-6862 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 5. | 176-5667I | [1] | HOSE AS | |
| 6. | 176-5668I | [1] | HOSE AS | |
| 7. | 176-5669I | [1] | HOSE AS | |
| 8. | 179-6383 | [1] | CLAMP | |
| 9. | 179-6388 | [1] | TUBE AS | |
| 10. | 179-6389 | [1] | TUBE AS | |
| 11. | 179-6390 | [1] | TUBE AS | |
| 12. | 179-7952 | [1] | PLATE | |
| 13. | 179-7953 | [1] | PAD | |
| 14. | 193-7807I | [1] | HOSE AS | |
| 15. | 193-7808I | [1] | HOSE AS | |
| 16. | 193-7809I | [1] | HOSE AS | |
| 17. | 193-7810I | [1] | HOSE AS | |
| 18. | 193-7811I | [2] | HOSE AS | |
| 19. | 243-1008 | [1] | TUBE AS | |
| 20. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 21. | 148-8340 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 22. | 148-8364 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 23. | 148-8457 | [2] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 24. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 25. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 26. | 5P-7464 | [4] | CLIP(SLOT) | |
| 27. | 5P-7465 | [4] | CLIP(TAB) | |
| 28. | 6V-7359 | [4] | GROMMET(25-MM ID, 37-MM OD) | |
| 29. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 30. | 6V-9746 | [5] | SEAL-O-RING | |
| 31. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 32. | 8T-1887 | [8] | CLIP(SLOT) | |
| 33. | 8T-1888 | [8] | CLIP(TAB) | |
| 34. | 8T-4121 | [13] | WASHER-HARD(11X21X2.5-MM THK) | |
| 35. | 8T-4123 | [2] | WASHER(3.62X5.75X0.375-MM THK) | |
| 36. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 37. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 38. | 8T-4194M | [2] | BOLT(M12X1.75X50-MM) | |
| 39. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 40. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 41. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 42. | 9X-6580 | [4] | NUT(1-3/16-12-THD) | |
| 43. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 44. | 9X-8258 | [2] | WASHER(33X56X6-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
