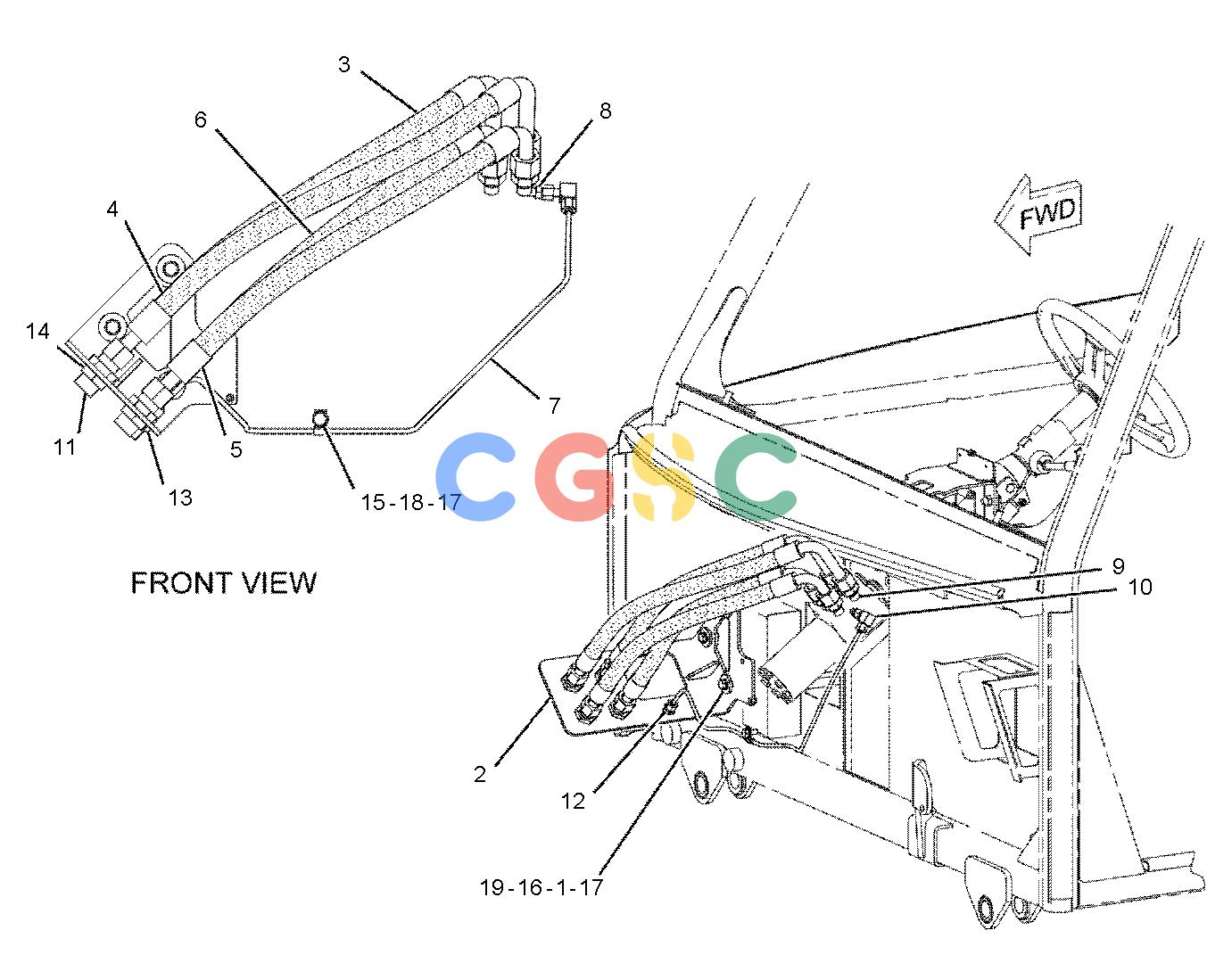

卡特零件查询（725） 245-0983: LINES GP-STEERING
广数供应链运营团队, 14 02月, 2025，浏览：
349 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6N-6984 | [3] | MOUNT-RUBBER | |
| 2. | 169-0800 | [1] | PLATE AS | |
| 3. | 177-7952I | [1] | HOSE AS | |
| 4. | 177-7953I | [1] | HOSE AS | |
| 5. | 100-2782I | [1] | HOSE AS | |
| 6. | 2T-2141I | [1] | HOSE AS | |
| 7. | 226-1809 | [1] | TUBE AS | |
| 8. | 148-8316 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 9. | 148-8324 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| 10. | 148-8351 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9849 | [1] | ELBOW | |
| 11. | 148-8455 | [4] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8997 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 12. | 150-4052 | [1] | UNION AS | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8993 | [1] | UNION | |
| 13. | 2P-1279 | [1] | LOCKNUT(9/16-18-THD) | |
| 14. | 2P-1293 | [4] | LOCKNUT(1-3/16-12-THD) | |
| 15. | 8M-2772 | [1] | CLIP(LOOP) | |
| 16. | 8M-4069 | [3] | WASHER(10.3X38.1X5-MM THK) | |
| 17. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 19. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
