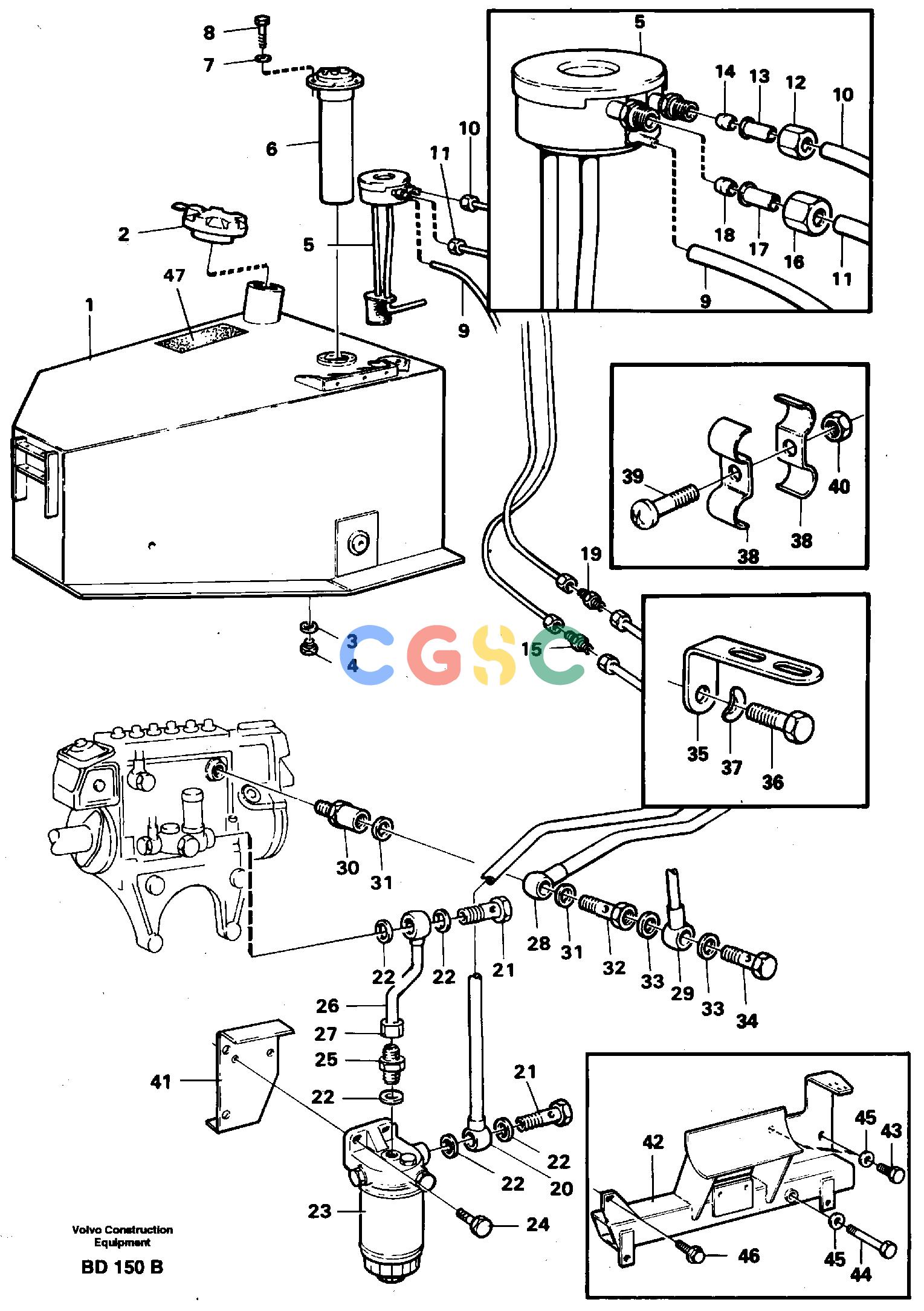

沃尔沃零件查询A30 VOLVO BM Fuel tank, fuel pipesVOLVO BM A30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
392 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11054771
|
[1] |
Fuel tank
|
SER NO - 1585
|
| |
VOE11051341
|
[1] |
Fuel tank
|
SER NO 1586 -
|
| |
VOE11060604
|
[1] |
Filler pipe
|
|
| 1. |
|
[1] |
Overrider
|
|
| 2. |
VOE1189577
|
[1] |
Filler cap
|
|
| |
VOE1698164
|
[1] |
Gasket
|
|
| |
VOE11991396
|
[2] |
Key
|
|
| 3. |
VOE957184
|
[1] |
Gasket
|
|
| 4. |
VOE4948183
|
[1] |
Plug
|
|
| 5. |
VOE4803800
|
[1] |
Combined tank unit
|
|
| |
VOE944219
|
[1] |
O-ring
|
|
| 6. |
VOE4803665
|
[1] |
Combined tank unit
|
|
| 7. |
VOE7011991
|
[6] |
Gasket
|
|
| 8. |
VOE13955271
|
[6] |
Screw
|
|
| 9. |
VOE192034
|
[REQ] |
Rubber hose
|
L = 450, SER NO - 1673
|
| |
VOE192034
|
[REQ] |
Rubber hose
|
L = 300, SER NO 1674 -
|
| 10. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L = 440
|
| 11. |
VOE945462
|
[REQ] |
Tube
|
L = 480
|
| 12. |
VOE326596
|
[2] |
Fitting nut
|
|
| 13. |
VOE967559
|
[2] |
Sleeve
|
|
| 14. |
VOE326599
|
[2] |
Ferrule
|
|
| 15. |
VOE13966414
|
[1] |
Nipple
|
|
| 16. |
VOE326597
|
[2] |
Fitting nut
|
|
| 17. |
VOE967548
|
[2] |
Support sleeve
|
|
| 18. |
VOE326600
|
[2] |
Sleeve
|
|
| 19. |
VOE13966418
|
[1] |
Nipple
|
|
| 20. |
VOE11031010
|
[1] |
Fuel pipe
|
Eng - 244197
|
| |
VOE11031144
|
[1] |
Fuel pipe
|
Eng 244198 -
|
| 21. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 22. |
VOE13969011
|
[0005] |
Gasket
|
|
| 23. |
VOE4881717
|
[1] |
Water separator
|
|
| 24. |
VOE13945444
|
[2] |
Screw
|
|
| 25. |
VOE941754
|
[1] |
Nipple
|
|
| 26. |
VOE11031011
|
[1] |
Fuel pipe
|
ENG - 244197
|
| |
VOE11031145
|
[1] |
Fuel pipe
|
ENG 244198 -
|
| 27. |
VOE956983
|
[1] |
Fitting nut
|
|
| |
VOE980781
|
[0001] |
Ferrule
|
|
| 28. |
VOE11031012
|
[0001] |
Fuel pipe
|
|
| 29. |
VOE846637
|
[0001] |
Leak-off line
|
|
| 30. |
|
[0001] |
Overflow valve
|
|
| 31. |
VOE13969011
|
[0002] |
Gasket
|
|
| 32. |
VOE7016496
|
[0001] |
Hollow screw
|
|
| 33. |
VOE947620
|
[0002] |
Gasket
|
|
| 34. |
VOE7074033
|
[1] |
Hollow screw
|
|
| 35. |
VOE13965556
|
[1] |
Bracket
|
|
| 36. |
VOE13940098
|
[1] |
Screw
|
|
| 37. |
VOE13942336
|
[1] |
Spring washer
|
|
| 38. |
VOE404279
|
[6] |
Clamp
|
|
| 39. |
VOE950047
|
[3] |
Cross recessed screw
|
|
| 40. |
VOE955825
|
[3] |
Hexagon nut
|
|
| 41. |
|
[1] |
Attachment
|
ENG - 244197
|
| 42. |
VOE11051902
|
[1] |
Anchorage
|
ENG 244198 -
|
| 43. |
VOE13940115
|
[2] |
Screw
|
ENG 244198 -
|
| 44. |
VOE955542
|
[1] |
Hexagon screw
|
ENG 244198 -
|
| 45. |
VOE13940097
|
[3] |
Washer
|
ENG 244198 -
|
| 46. |
VOE946329
|
[1] |
Flange screw
|
ENG 244198 -
|
| 47. |
VOE11091424
|
[0REQ] |
Slip protection
|
|
