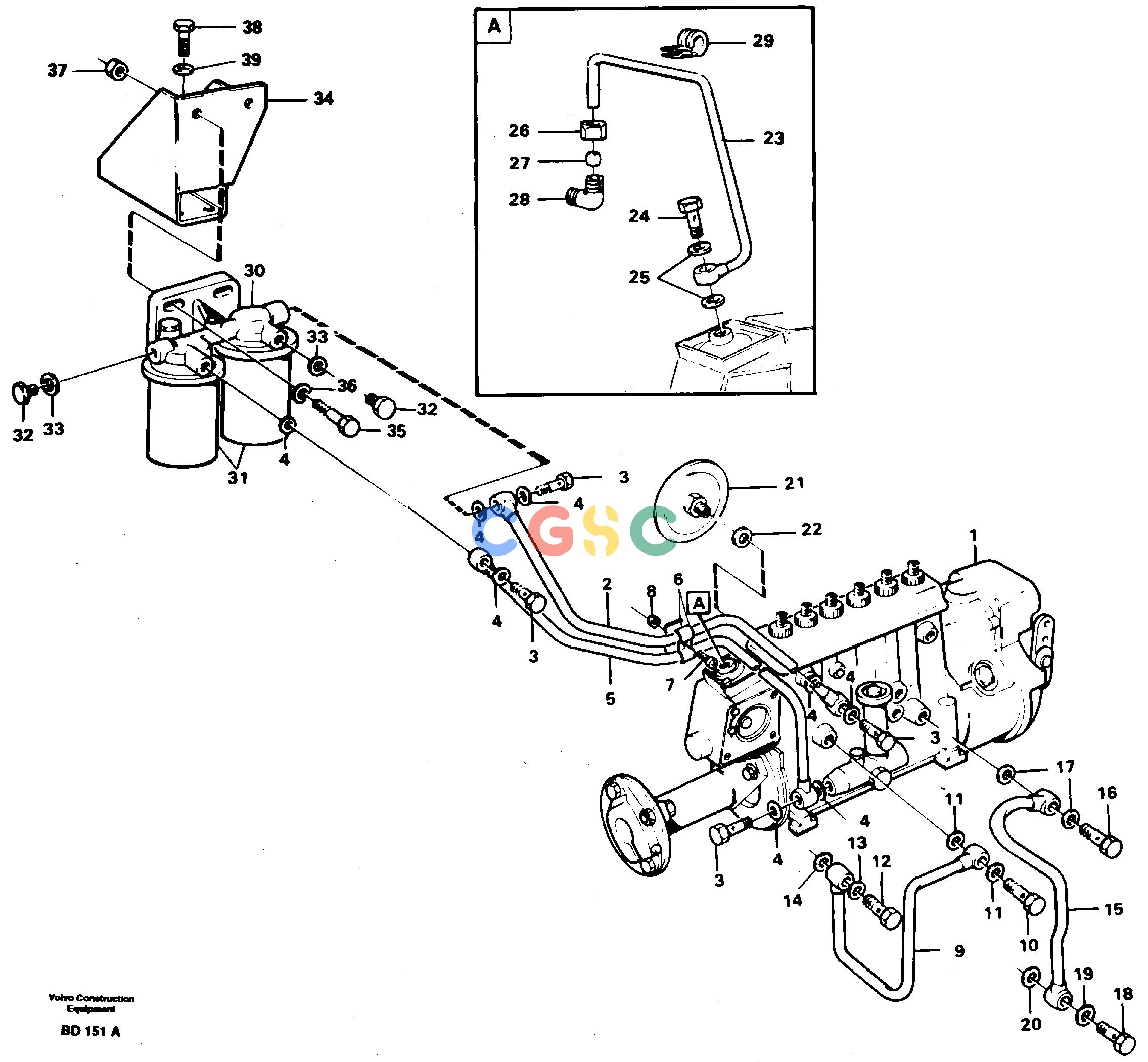

沃尔沃零件查询A30 VOLVO BM Fuel pipes, fuelinjec. pump-fuel filterVOLVO BM A30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Injcection pump
|
|
| 2. |
VOE4777188
|
[1] |
Fuel pipe
|
|
| 3. |
VOE60113509
|
[4] |
Hollow screw
|
|
| 4. |
VOE13969011
|
[8] |
Gasket
|
|
| 5. |
VOE4777187
|
[1] |
Fuel pipe
|
|
| 6. |
VOE404279
|
[2] |
Clamp
|
|
| 7. |
VOE950047
|
[1] |
Cross recessed screw
|
|
| 8. |
VOE955825
|
[1] |
Hexagon nut
|
|
| 9. |
VOE479129
|
[1] |
Delivery pipe
|
|
| 10. |
VOE7048634
|
[1] |
Hollow screw
|
|
| 11. |
VOE13947281
|
[2] |
Gasket
|
|
| 12. |
VOE942081
|
[1] |
Hollow screw
|
|
| 13. |
VOE7018666
|
[1] |
Gasket
|
|
| 14. |
VOE13947282
|
[1] |
Gasket
|
|
| 15. |
VOE422246
|
[1] |
Delivery pipe
|
|
| 16. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 17. |
VOE13969011
|
[2] |
Gasket
|
|
| 18. |
VOE942007
|
[1] |
Hollow screw
|
|
| 19. |
VOE942703
|
[1] |
Gasket
|
|
| 20. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 21. |
VOE477173
|
[1] |
Pressure equalizer
|
|
| 22. |
VOE13969011
|
[1] |
Gasket
|
|
| 23. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=850
|
| 24. |
VOE968178
|
[1] |
Hollow screw
|
|
| 25. |
VOE13947282
|
[2] |
Gasket
|
|
| 26. |
VOE954356
|
[1] |
Fitting nut
|
|
| 27. |
VOE954364
|
[1] |
Ferrule
|
|
| 28. |
VOE954385
|
[1] |
Elbow nipple
|
|
| 29. |
VOE7018368
|
[1] |
Clamp
|
|
| 30. |
VOE1676832
|
[1] |
Housing
|
|
| 31. |
VOE466987
|
[2] |
Fuel filter
|
|
| 32. |
VOE13968062
|
[3] |
Plug
|
|
| 33. |
VOE13969011
|
[3] |
Gasket
|
|
| 34. |
VOE4777186
|
[1] |
Bracket
|
|
| 35. |
VOE13940162
|
[2] |
Screw
|
|
| 36. |
VOE13960142
|
[2] |
Washer
|
|
| 37. |
VOE13955827
|
[2] |
Nut
|
|
| 38. |
VOE955524
|
[4] |
Hexagon screw
|
|
| 39. |
VOE13955894
|
[4] |
Washer
|
|
