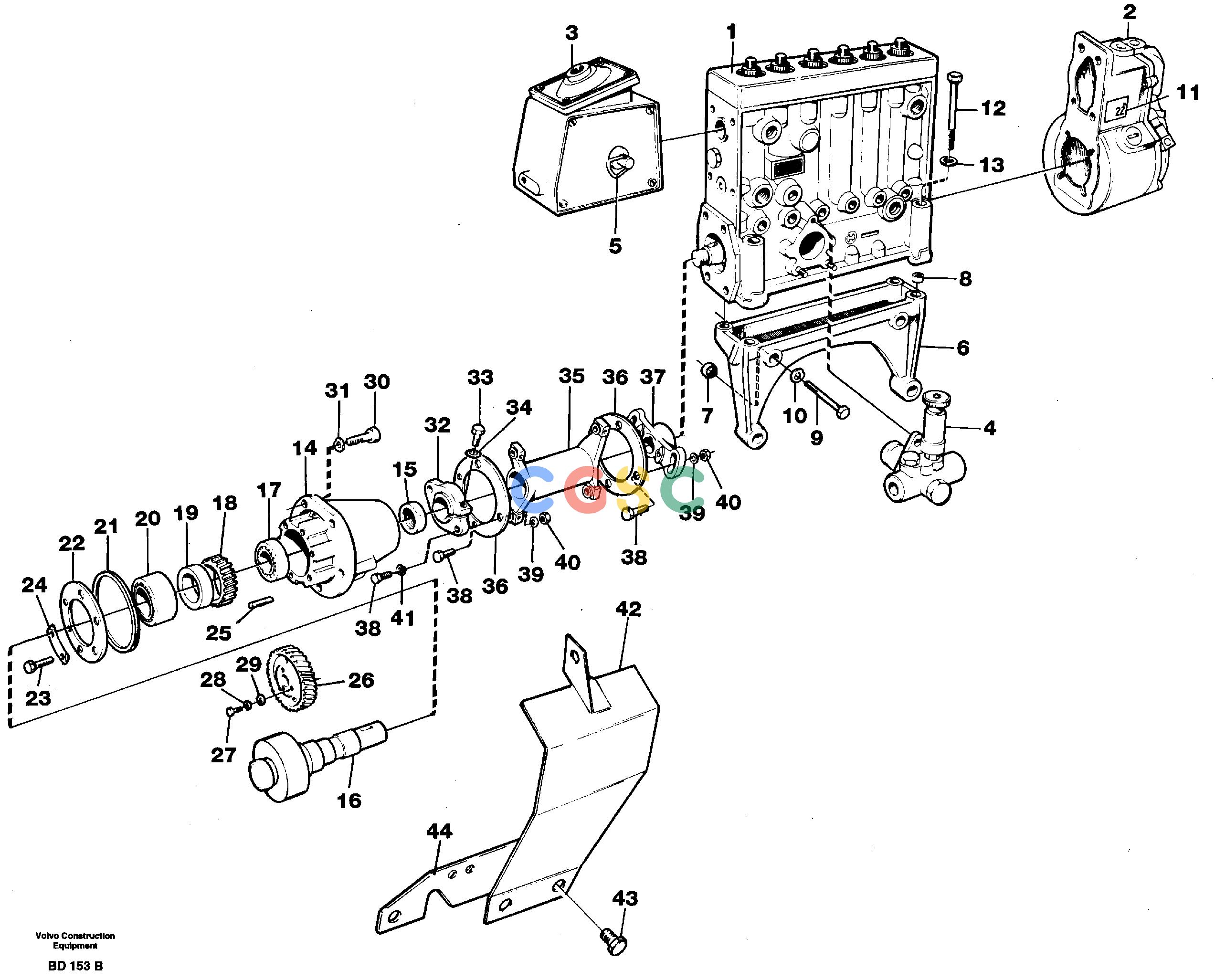

沃尔沃零件查询A30 VOLVO BM Injection pump with driveVOLVO BM A30 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
301 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11031113
|
[1] |
Injection pump
|
TD102KF
|
| |
VOE11031149
|
[1] |
Injection pump
|
TD102KH
|
| |
VOE11031136
|
[1] |
Injection pump
|
TD102KFE
|
| 1. |
|
[1] |
Injcection pump
|
|
| 2. |
|
[1] |
Centrifugal regulator
|
|
| 3. |
|
[1] |
Smoke limiter
|
|
| 4. |
|
[1] |
Feed pump
|
|
| 5. |
VOE422525
|
[1] |
Towing eye
|
|
| 6. |
VOE478647
|
[1] |
Bracket
|
|
| 7. |
VOE423161
|
[2] |
Guide sleeve
|
|
| 8. |
VOE417588
|
[1] |
Guide sleeve
|
|
| 9. |
VOE955566
|
[4] |
Hexagon screw
|
|
| 10. |
VOE940280
|
[4] |
Spring washer
|
|
| 11. |
VOE412963
|
[1] |
Decal
|
TD102KF,TD102KH
|
| |
VOE465734
|
[1] |
Sign
|
TD102KFE
|
| 12. |
VOE940156
|
[4] |
Hexagon screw
|
|
| 13. |
VOE190509
|
[4] |
Washer
|
|
| 14. |
VOE420903
|
[1] |
Bearing housing
|
|
| 15. |
VOE424580
|
[1] |
Seal
|
|
| 16. |
VOE471557
|
[1] |
Shaft
|
|
| 17. |
VOE7011013
|
[1] |
Bearing
|
|
| 18. |
VOE469364
|
[1] |
Drive Gear
|
|
| 19. |
VOE469363
|
[1] |
Stop ring
|
|
| 20. |
VOE11000284
|
[1] |
Ball bearing
|
|
| 21. |
VOE423123
|
[1] |
Sealing ring
|
|
| 22. |
VOE423074
|
[1] |
Washer
|
|
| 23. |
VOE60111867
|
[6] |
Hexagon screw
|
|
| 24. |
VOE955892
|
[6] |
Plain washer
|
|
| 25. |
VOE950586
|
[1] |
Pin
|
|
| 26. |
VOE478297
|
[1] |
Gear
|
|
| 27. |
VOE102056
|
[3] |
Screw
|
|
| 28. |
VOE467052
|
[2] |
Lock washer
|
|
| 29. |
VOE467055
|
[3] |
Washer
|
|
| 30. |
VOE13940159
|
[5] |
Screw
|
|
| 31. |
VOE13941907
|
[5] |
Washer
|
|
| 32. |
VOE471383
|
[1] |
Companion flange
|
|
| 33. |
VOE970978
|
[1] |
Hexagon screw
|
|
| 34. |
VOE976945
|
[1] |
Washer
|
|
| 35. |
VOE471367
|
[1] |
Intmd Section
|
|
| 36. |
VOE479459
|
[6] |
Companion disc
|
|
| 37. |
VOE471312
|
[1] |
Companion flange
|
|
| 38. |
VOE946470
|
[8] |
Flange screw
|
|
| 39. |
VOE478896
|
[8] |
Sleeve
|
|
| 40. |
VOE13945408
|
[8] |
Nut
|
|
| 41. |
VOE13960141
|
[8] |
Washer
|
|
| |
VOE955896
|
[8] |
Plain washer
|
|
| 42. |
VOE11031084
|
[1] |
Protecting plate
|
|
| |
VOE11050505
|
[1] |
Protecting plate
|
|
| 43. |
VOE946440
|
[2] |
Flange screw
|
|
| |
VOE60113082
|
[2] |
Flange screw
|
|
| 44. |
VOE11031088
|
[1] |
Plate
|
|
