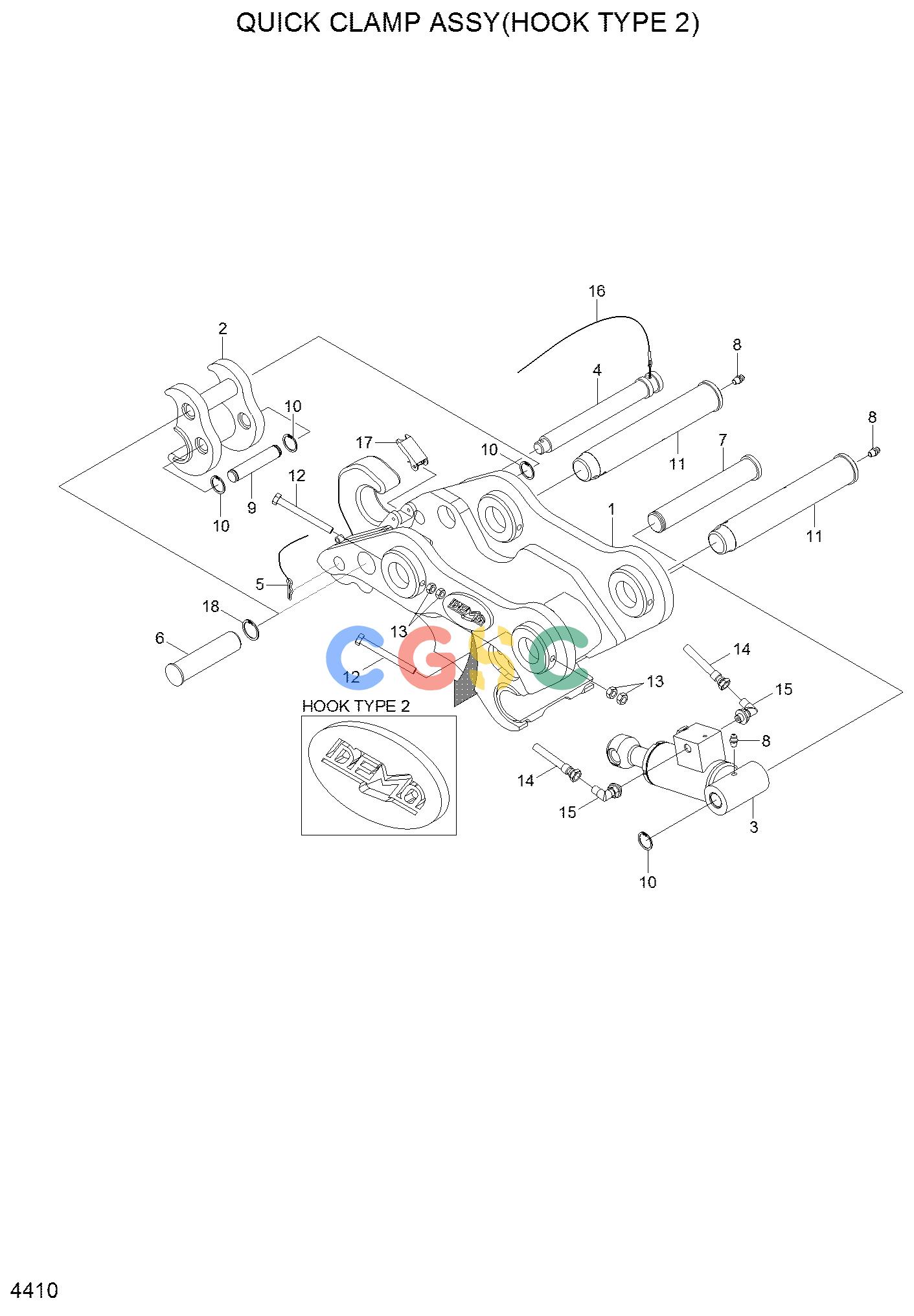

现代零件查询R140W-7 QUICK CLAMP ASSY(#0345-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N4-95720
|
[1] |
QUICK CLAMP ASSY
|
|
| 1. |
XKBP-00103
|
[1] |
BODY ASSY
|
|
| 2. |
XKBP-00094
|
[1] |
CYLINDER ASSY
|
|
| 3. |
XKBP-00003
|
[1] |
HOOK
|
|
| 4. |
XKBP-00095
|
[1] |
LOCK ASY
|
|
| 5. |
XKBP-00005
|
[2] |
PIN-BRACKET
|
|
| 6. |
XKBP-00096
|
[1] |
PIN-HOOK
|
|
| 7. |
XKBP-00007
|
[1] |
PIN-JOINT
|
|
| 8. |
XKBP-00008
|
[1] |
PIN-JOINT
|
|
| 9. |
XKBP-00009
|
[1] |
PIN-LOCK
|
|
| 10. |
XKBP-00010
|
[1] |
RING-SNAP
|
|
| 11. |
XKBP-00011
|
[1] |
RING-SNAP
|
|
| 12. |
XKBP-00012
|
[2] |
RING-SNAP
|
|
| 13. |
XKBP-00097
|
[2] |
BOLT-HEX
|
|
| 14. |
XKBP-00014
|
[4] |
NUT-HEX
|
|
| 15. |
XKBP-00015
|
[6] |
NIPPLE-GREASE
|
|
| 16. |
XKBP-00098
|
[1] |
PLATE-COVER
|
|
| 17. |
XKBP-00018
|
[2] |
ELBOW-90
|
|
| 18. |
XKBP-00019
|
[2] |
O-RING
|
|
| 19. |
XKBP-00020
|
[2] |
HOSE ASSY
|
|
| 20. |
XKBP-00024
|
[1] |
NIPPLE-GREASE
|
|
| 21. |
XKBP-00104
|
[1] |
PIN-STOPPER
|
|
| 22. |
XKBP-00105
|
[1] |
PIN-SNAP
|
|
| 23. |
XKBP-00106
|
[1] |
WIRE ASSY
|
|
| 24. |
XKBP-00100
|
[2] |
BOLT-HEX
|
|
| 25. |
XKBP-00101
|
[2] |
WASHER-SPRING
|
|
| 26. |
XKBP-00107
|
[1] |
NAME PLATE
|
|
