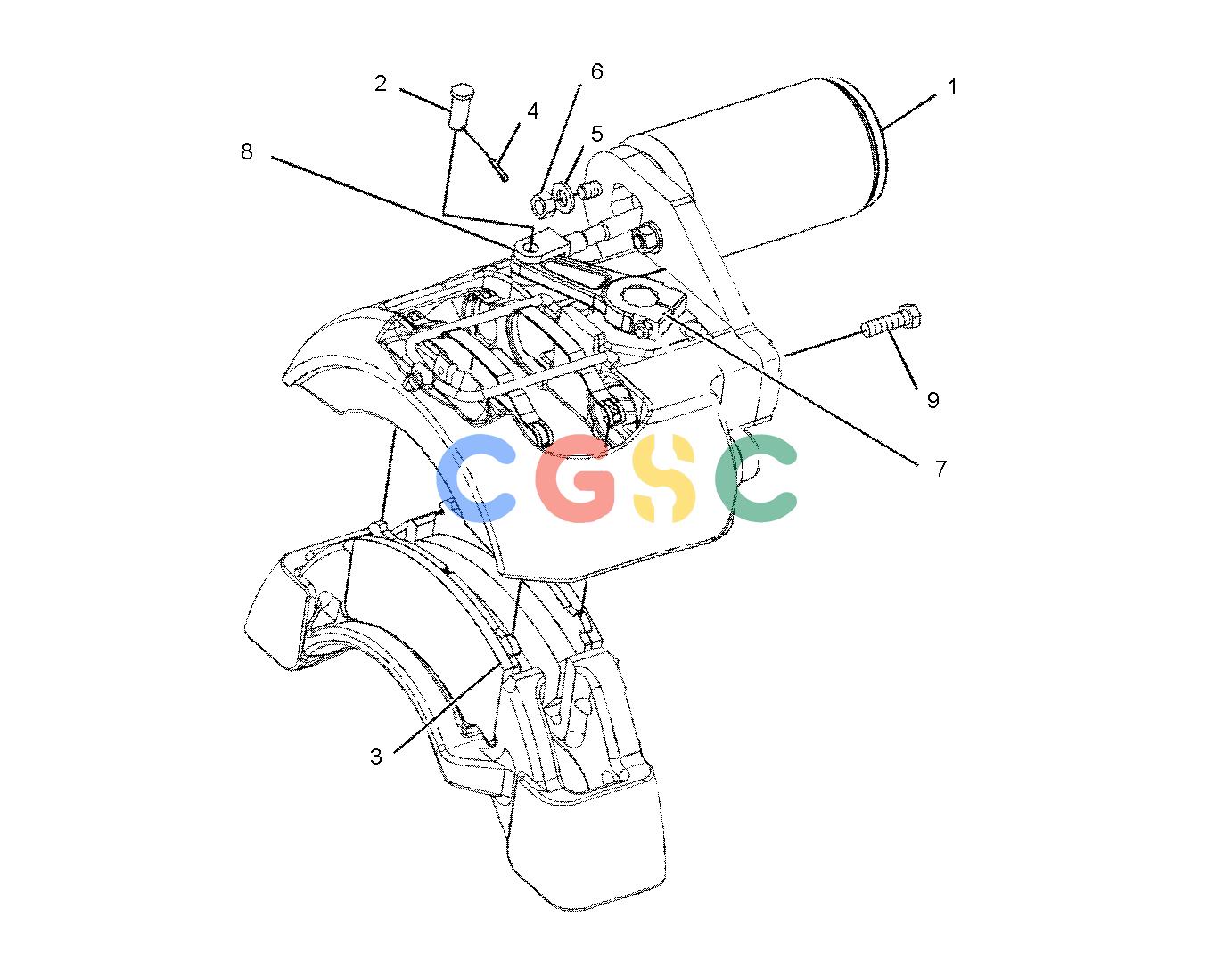

| 1. | 154-8042 | [1] | ACTUATOR(PARKING BRAKE) | |
| 2. | 172-3931J | [1] | PIN | |
| 3. | 172-3932 | [2] | SPACER | |
| 4. | 3B-4610J | [1] | PIN-COTTER | |
| 5. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 7. | 267-3540J | [1] | KIT-LEVER | |
| | | | (INCLUDES LEVER, BEARING, BOLT & NUT) |
| 8. | 346-0331 | [1] | END-YOKE ROD | |
| 9. | 8T-4139M | [5] | BOLT(M12X1.75X30-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 279-9438 | [1] | KIT-ADJUSTER | |
| | | | (INCLUDES BEVEL GEAR, BOX, DAMPING RINGS, SPRING, ADJUSTER SCREW, ADJUSTER GEAR, GASKET, PLUG, BOLTS, SEALANT & GREASE) |
| | 279-9439 | [1] | KIT-SLEEVE | |
| | | | (INCLUDES BOLTS, THRUST PLATE, PINS, PISTON ACTUATING SEALS, SLEEVE ADJUSTERS, ACTUATION BLOCK, OUTER RACE BEARING, |
| | | | DAMPING RINGS, SNAP RINGS, ACTUATION PISTON, GEAR ADJUSTERS, CAP, SEALANT & GREASE) |
| | 279-9440 | [1] | KIT-PIN | |
| | | | (INCLUDES BOLTS, PINS, PISTON SLIDE SEALS, PIN ACTUATING SEAL, COTTER, CAPS, BUSHINGS, SHORT SLIDE PIN, LONG SLIDE PIN, |
| | | | SHORT BOLT, LONG BOLT, GASKET, PLUG, SEALANT & GREASE) |
| | 279-9441 | | KIT-SHAFT | |
| | | | (INCLUDES BOLTS, PIN, COTTER, GASKETS, PLUG, NUT, DIRT SHIELD, PLATE COVER, SHAFT BEARING, SEALS, FITTING, WASHER, |
| | | | SHAFT, BEARING CAGE WITH ROLLERS, SEALANT & GREASE) |
| | 279-9442 | [1] | KIT-BAR | |
| | | | (INCLUDES BOLTS, NUT, COTTER, STABILIZER BAR, PIN, GASKET & SEALANT) |
| | 279-9444 | [1] | KIT-BRAKE LINING | |
| | | | (INCLUDES SPRINGS, PLUG, COTTER, GASKET, PIN & BRAKE SHOE AS) |
| | 279-9674 | [1] | KIT-SEAL | |
| | | | (INCLUDES SLIDE PIN SEALS, PISTON ACTUATING SEALS, SHORT BOLT, LONG BOLT, CAP, SEALANT & GREASE) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
