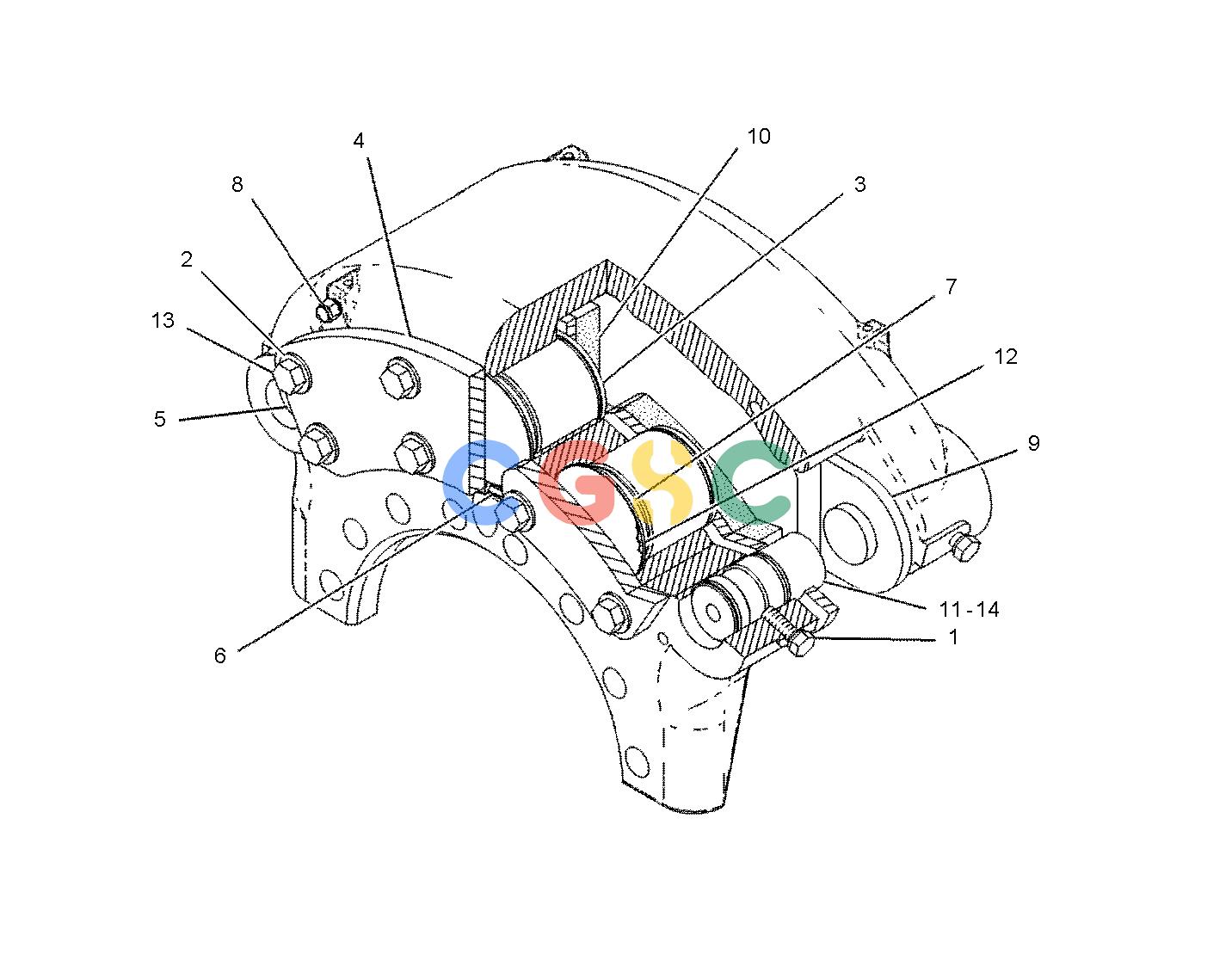

卡特零件查询（725） 159-7596: BRAKE GP-SERVICE
广数供应链运营团队, 14 02月, 2025，浏览：
398 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3V-0197 | [4] | BOLT(3/8-16X1-IN) | |
| 2. | 4D-6433 | [8] | WASHER-HARD(12X25.5X2-MM THK) | |
| 3. | 4V-4852 | [6] | PISTON | |
| 4. | 4V-4854 | [1] | COVER | |
| 5. | 4V-7277 | [2] | PIN | |
| 6. | 5P-8867 | [1] | INSERT-FLARED | |
| 7. | 6W-7379 | [3] | PLUG | |
| 8. | 7K-4942 | [2] | SCREW-PURGE | |
| 9. | 9C-0566 | [1] | LINING AS-BRAKE(OUTBOARD) | |
| 10. | 9C-0567 | [1] | LINING AS-BRAKE(INBOARD) | |
| 11. | 9V-6167 | [2] | PIN | |
| 12. | 146-6858 | [3] | SEAL | |
| 13. | 4F-8965 | [8] | BOLT(7/16-14X1.125-IN) | |
| 14. | 8F-0212 | [4] | SEAL-O-RING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 344-5588 | [1] | KIT-SEAL | |
| | | | (INCLUDES BOOTS, PLUG SEALS, SEAL-O-RINGS, PISTON SEALS & BACKUP RINGS) |
