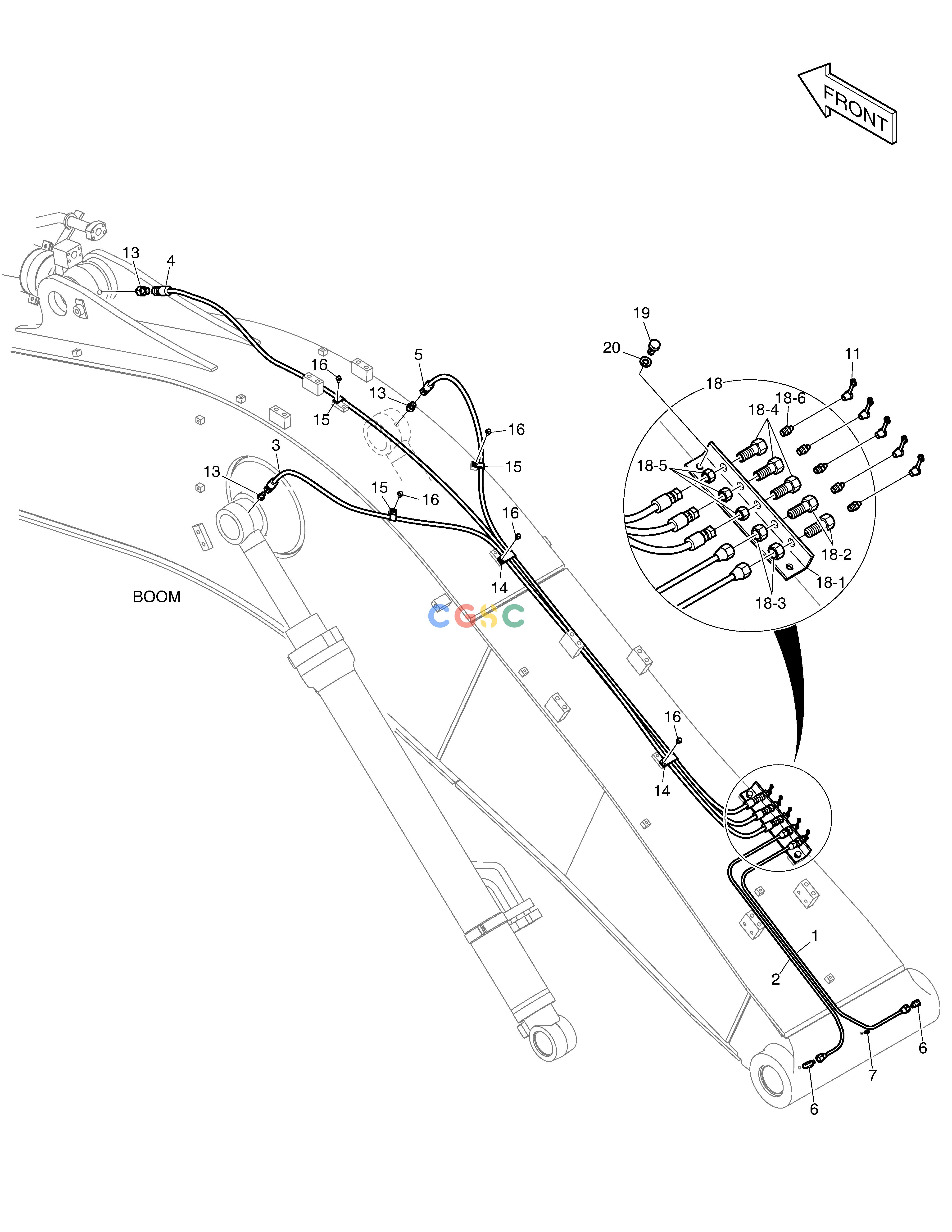

斗山零件查询LUBRICATION PIPING - BOOM DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
623 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02750
|
[-] |
|
|
| 1. |
K1038814
|
[1] |
PIPE
|
|
| 11. |
160-00020
|
[5] |
CAP
|
|
| 13. |
2181-4112
|
[3] |
ADAPTER
|
|
| 14. |
124-00199D4
|
[2] |
CLIP
|
|
| 15. |
2124-1353D2
|
[3] |
CLIP
|
|
| 16. |
K1001029
|
[5] |
BOLT
|
|
| 18. |
K1038003
|
[1] |
GREASE PLATE ASS'Y
|
|
| 18-1. |
K1037887
|
[1] |
PLATE
|
|
| 18-2. |
181-00525
|
[2] |
REDUCER
|
|
| 18-3. |
S4032833
|
[2] |
NUT
|
|
| 18-4. |
181-00103
|
[3] |
REDUCER
|
|
| 18-5. |
121-00006
|
[3] |
NUT
|
|
| 18-6. |
S6710041
|
[5] |
NIPPLE,GREASE
|
|
| 19. |
S0511866
|
[2] |
BOLT
|
|
| 2. |
K1038815
|
[1] |
PIPE
|
|
| 20. |
S5102603
|
[2] |
. WASHER
|
|
| 3. |
DS2053864
|
[1] |
HOSE
|
|
| 4. |
2184-1045D126
|
[1] |
HOSE
|
|
| 5. |
2184-1045D254
|
[1] |
HOSE
|
|
| 6. |
2181-1925
|
[2] |
ELBOW
|
|
| 7. |
S3524403
|
[1] |
PLUG
|
|
