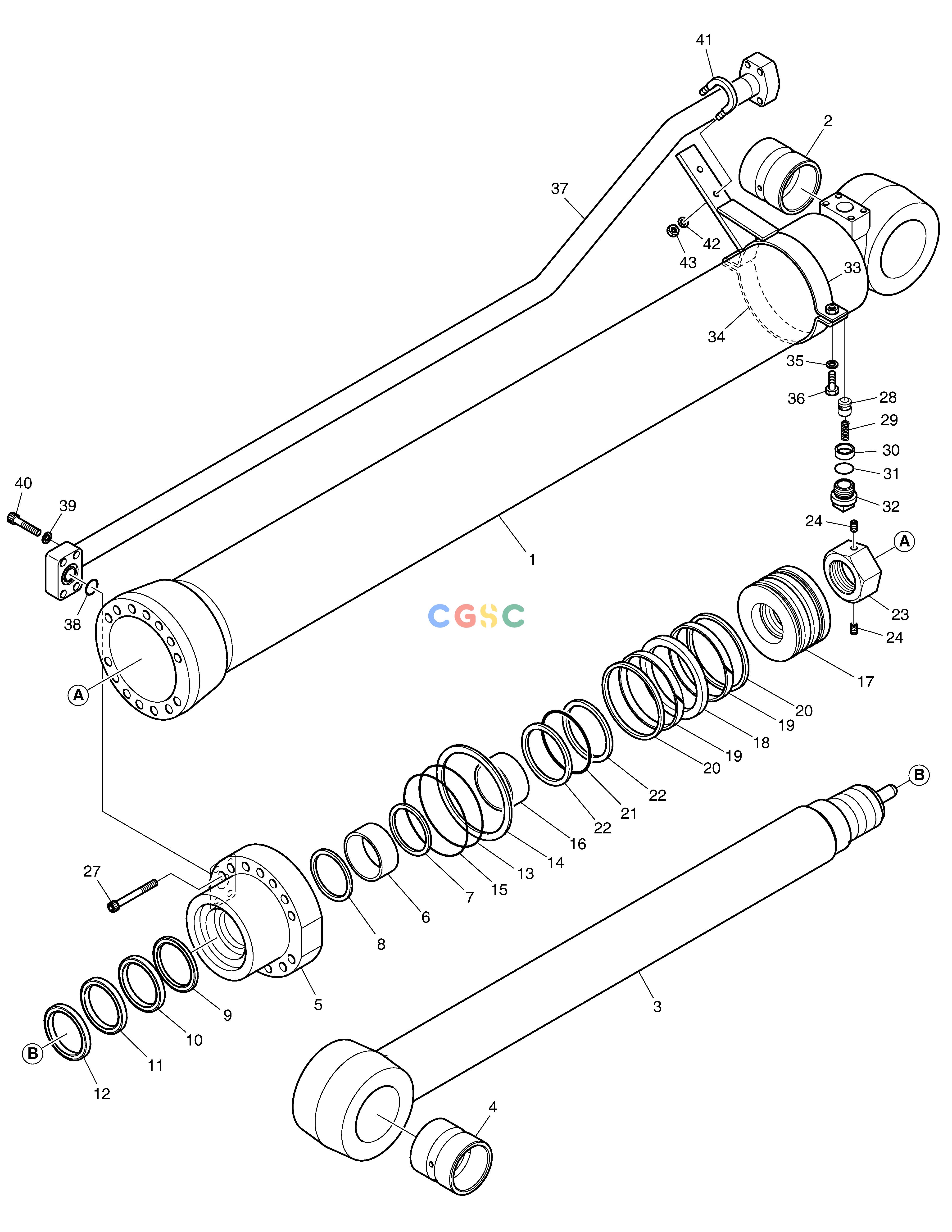

斗山零件查询ARM CYLINDER DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1016 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00208
|
[1] |
|
|
| -. |
400305-00685A
|
[1] |
|
|
| -. |
400305-00685
|
[1] |
|
400305-00685A
|
| 1. |
420406-01774
|
[1] |
|
|
| 10. |
111102-00145
|
[1] |
|
|
| 11. |
115-00099
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00092
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011301
|
[1] |
O-RING
|
|
| 14. |
K9003891
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011351
|
[1] |
O-RING
|
|
| 16. |
K9004919
|
[1] |
|
|
| 17. |
K9003895
|
[1] |
PISTON
|
|
| 18. |
K9004900
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
1.180-00426
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00130
|
[1] |
|
|
| 20. |
K9003890
|
[2] |
RING;DUST
|
|
| 21. |
S8010751
|
[1] |
O-RING
|
|
| 22. |
1.180-00663
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00501
|
[1] |
|
|
| 24. |
120706-00007
|
[2] |
SCREW,SET
|
|
| 27. |
S2222272
|
[14] |
BOLT;SOCKET
|
|
| 28. |
410104-00468
|
[1] |
|
|
| 29. |
129-00071
|
[1] |
SPRING
|
|
| 3. |
400337-00855
|
[1] |
|
|
| 30. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 31. |
S8000141
|
[1] |
O-RING
|
|
| 32. |
430221-00136
|
[1] |
PLUG
|
|
| 33. |
120208-00362
|
[1] |
|
|
| 34. |
1.124-00040
|
[1] |
BAND;PIPE
|
|
| 35. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 36. |
S0560563
|
[2] |
BOLT
|
|
| 37. |
420210-02348
|
[1] |
|
|
| 38. |
S8000341
|
[1] |
O-RING
|
|
| 39. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 4. |
131008-00130
|
[1] |
|
|
| 40. |
S2215561
|
[4] |
BOLT;SOCKET
|
|
| 41. |
K9001158
|
[1] |
U-BOLT
|
|
| 42. |
S5100603
|
[2] |
WASHER
|
|
| 43. |
S4012633
|
[2] |
NUT
|
|
| 5. |
110508-22120A
|
[1] |
|
110508-25201A
|
| 5. |
110508-25201A
|
[1] |
|
|
| 6. |
K9009860
|
[1] |
DD-BUSH
|
|
| 7. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00659
|
[1] |
SEAL;BUFFER
|
|
| 9. |
1.180-00660
|
[1] |
U-PACKING
|
|
