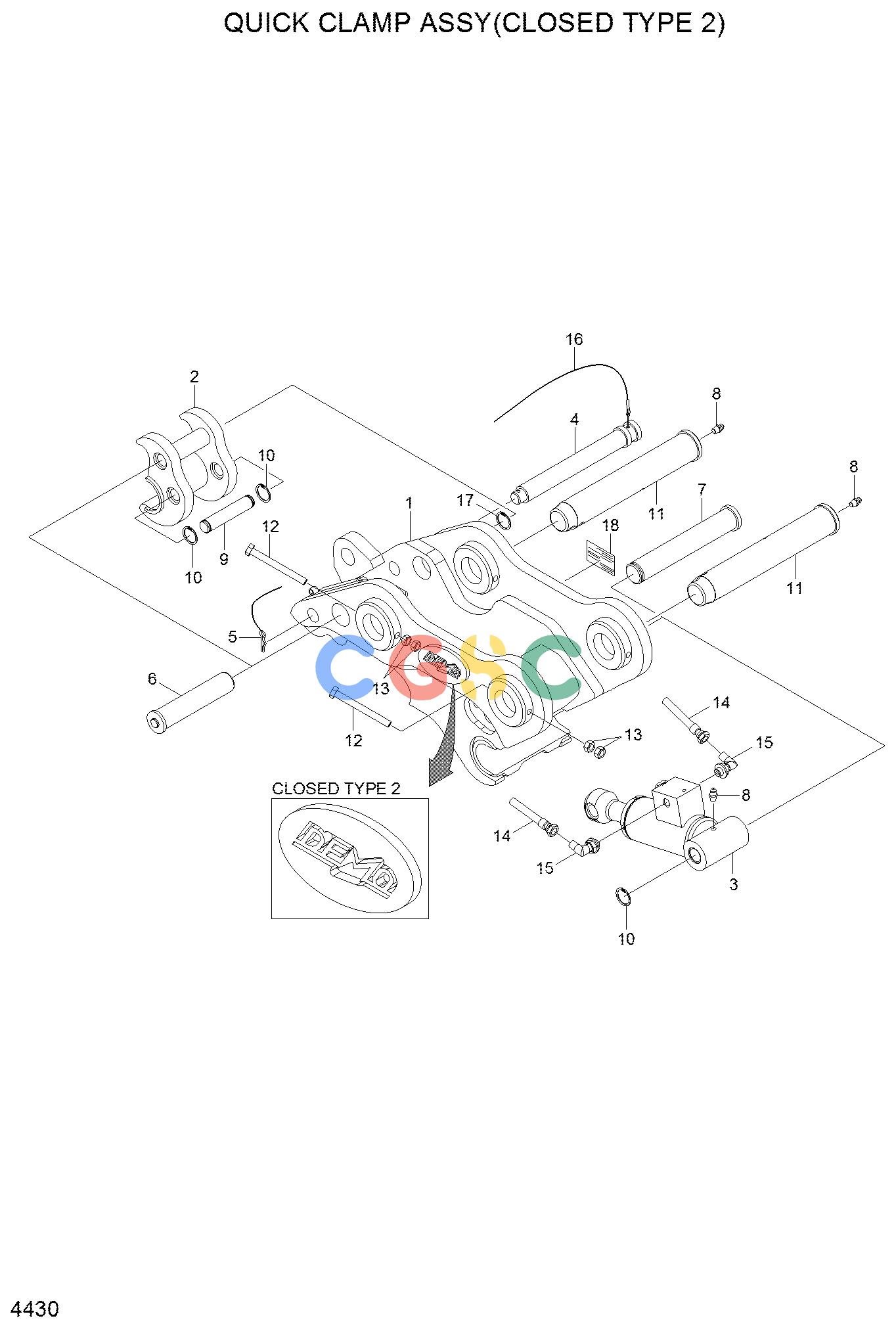

现代零件查询R140W-7 QUICK CLAMP ASSY 4(#0429-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
543 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N4-95820
|
|
QUICK CLAMP ASSY-CLOSE
|
|
| 1. |
XKBN-00187
|
[1] |
BODY-CLOSE TYPE
|
|
| 2. |
XKBN-00070
|
[1] |
HITCH
|
|
| 3. |
XKBN-00071
|
[1] |
CYLINDER ASSY
|
|
| 4. |
XKBN-00072
|
[1] |
PIN-SAFETY
|
|
| 5. |
XKBN-00105
|
[1] |
PIN-SNAP
|
|
| 6. |
XKBN-00074
|
[1] |
PIN-HITCH
|
|
| 7. |
XKBN-00075
|
[2] |
PIN-FRAME
|
|
| 8. |
XKBN-00009
|
[3] |
NIPPLE-GREASE
|
|
| 9. |
XKBN-00076
|
[1] |
PIN-CYLINDER
|
|
| 10. |
XKBN-00077
|
[4] |
RING-SNAP
|
|
| 11. |
XKBN-00078
|
[2] |
PIN-BRACKET
|
|
| 12. |
XKBN-00199
|
[2] |
BOLT-HEX
|
|
| 13. |
XKBN-00196
|
[4] |
NUT-HEX
|
|
| 14. |
XKBN-00081
|
[2] |
HOSE-PROTECTOR
|
|
| 15. |
P020-110001
|
[2] |
ELBOW-90
|
|
| 17. |
XKBN-00083
|
[1] |
WIRE ASSY
|
|
| 18. |
XKBN-00084
|
[2] |
BOLT-HEX
|
|
| 19. |
XKBN-00085
|
[2] |
WASHER-SPRING
|
|
