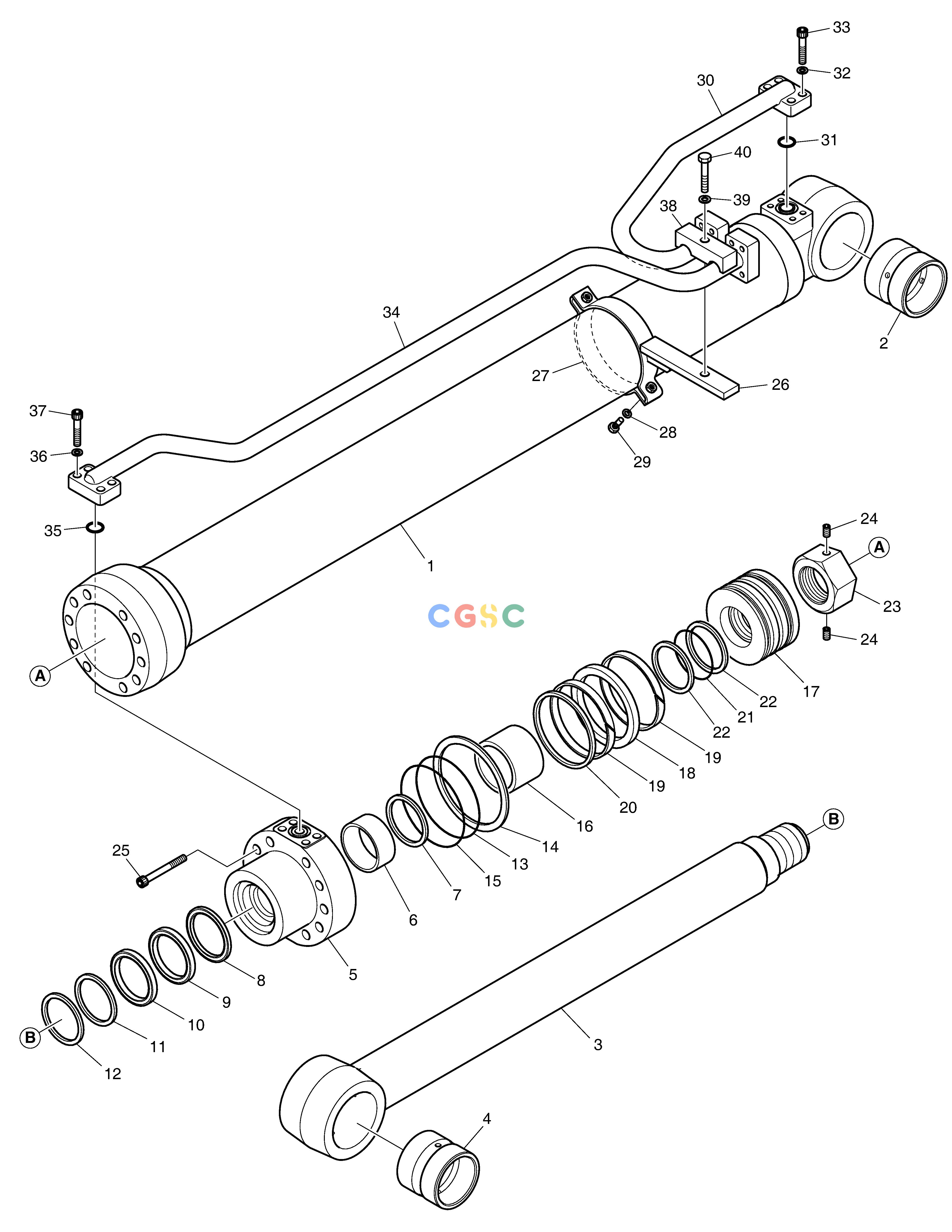

斗山零件查询BOOM CYLINDER - L.H. DX200A Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
287 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00259A
|
[1] |
|
|
| -. |
400309-01084
|
[1] |
|
|
| 1. |
420406-01775
|
[1] |
|
|
| 10. |
K9001877
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00059
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011151
|
[1] |
O-RING
|
|
| 14. |
1.180-00278
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011200
|
[1] |
O-RING
|
|
| 16. |
1.115-00204
|
[1] |
RING;CUSHION
|
|
| 17. |
K9003900
|
[1] |
PISTON
|
|
| 18. |
K9001891
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00055
|
[2] |
RING;WEAR
|
|
| 2. |
131008-00067A
|
[1] |
|
|
| 20. |
K9001872
|
[1] |
RING;DUST
|
|
| 21. |
S8010651
|
[1] |
O-RING
|
|
| 22. |
1.180-00277
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00047A
|
[1] |
NUT,PISTON
|
|
| 24. |
S3523738
|
[2] |
SCREW;SET
|
|
| 25. |
S2222171
|
[10] |
BOLT
|
|
| 26. |
120208-00363
|
[1] |
|
|
| 27. |
K9001874
|
[1] |
BAND;PIPE
|
|
| 28. |
S5100703
|
[2] |
WASHER;SPRING
|
|
| 29. |
S0560563
|
[2] |
BOLT
|
|
| 3. |
400337-00856
|
[1] |
|
|
| 30. |
420210-02344
|
[1] |
|
|
| 31. |
S8000281
|
[1] |
O-RING
|
|
| 32. |
S5100603
|
[4] |
WASHER
|
|
| 33. |
S2212371
|
[4] |
BOLT
|
|
| 34. |
420210-02346
|
[1] |
|
|
| 35. |
S8000281
|
[1] |
O-RING
|
|
| 36. |
S5100603
|
[4] |
WASHER
|
|
| 37. |
S2212371
|
[4] |
BOLT
|
|
| 38. |
124-00058
|
[1] |
CLAMP;PIPE
|
|
| 39. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 4. |
131008-00067A
|
[1] |
|
|
| 40. |
S0561053
|
[1] |
BOLT
|
|
| 5. |
110508-25332
|
[1] |
|
|
| 6. |
110-00079
|
[1] |
DD-BUSH
|
|
| 7. |
115-00050
|
[1] |
RING;RETAINING
|
|
| 8. |
NA04345
|
[1] |
|
|
| 9. |
K9001858
|
[1] |
U-PACKING
|
|
