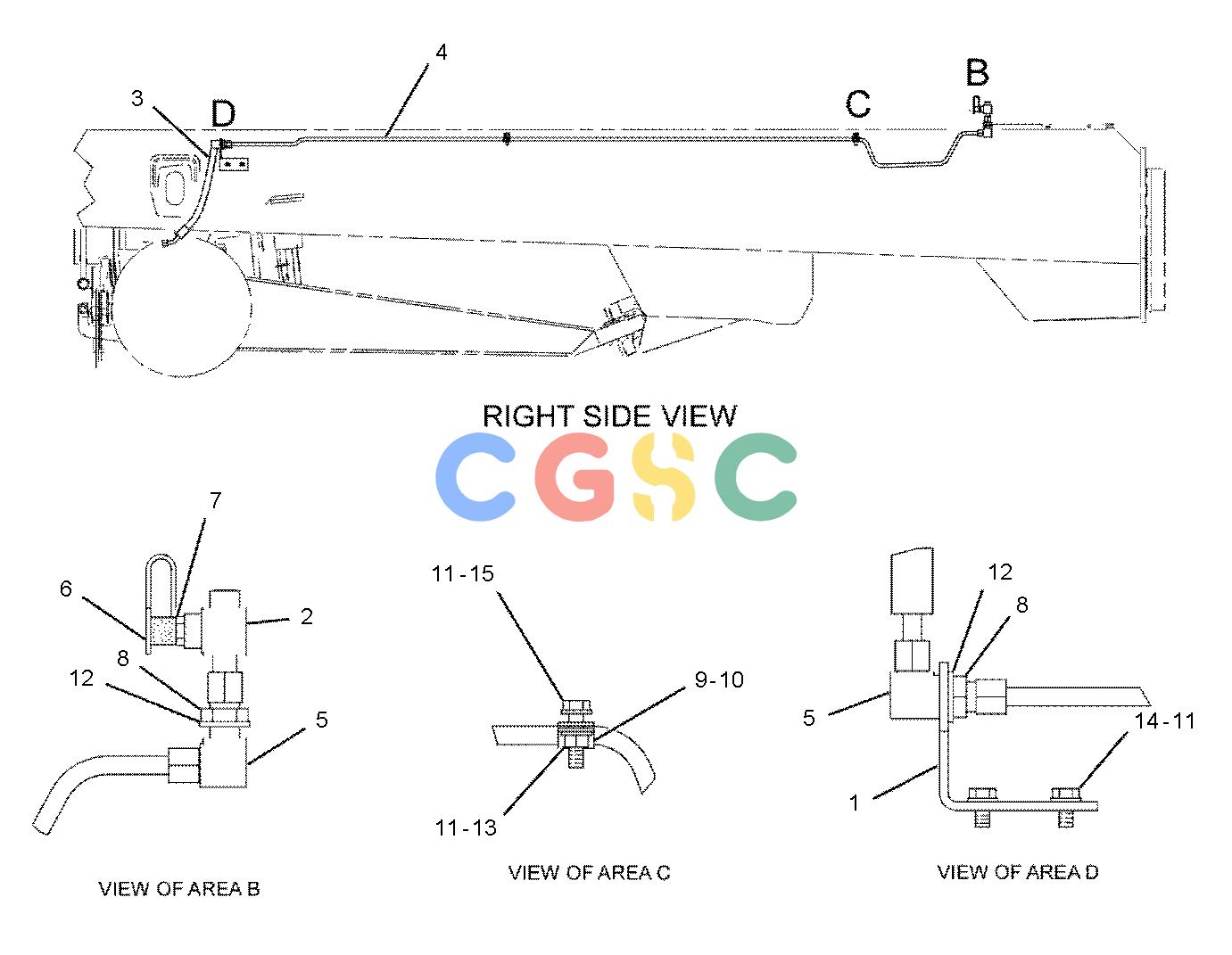

卡特零件查询（725） 196-9236: CONTROL GP-PARKING BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
328 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 150-3908 | [1] | BRACKET | |
| 2. | 164-5586 | [1] | TEE AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 7X-0871 | [1] | TEE | |
| 3. | 198-0968I | [1] | HOSE AS | |
| 4. | 206-2809 | [1] | TUBE AS | |
| 5. | 148-8375 | [2] | ELBOW AS | |
| | 6V-8981 | [1] | ELBOW | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| 6. | 6V-0852 | [1] | CAP-DUST | |
| 7. | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 8. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 9. | 8T-1885 | [2] | CLIP(SLOT) | |
| 10. | 8T-1886 | [2] | CLIP(TAB) | |
| 11. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4123 | [2] | WASHER(3.62X5.75X0.375-MM THK) | |
| 13. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 14. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 15. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
