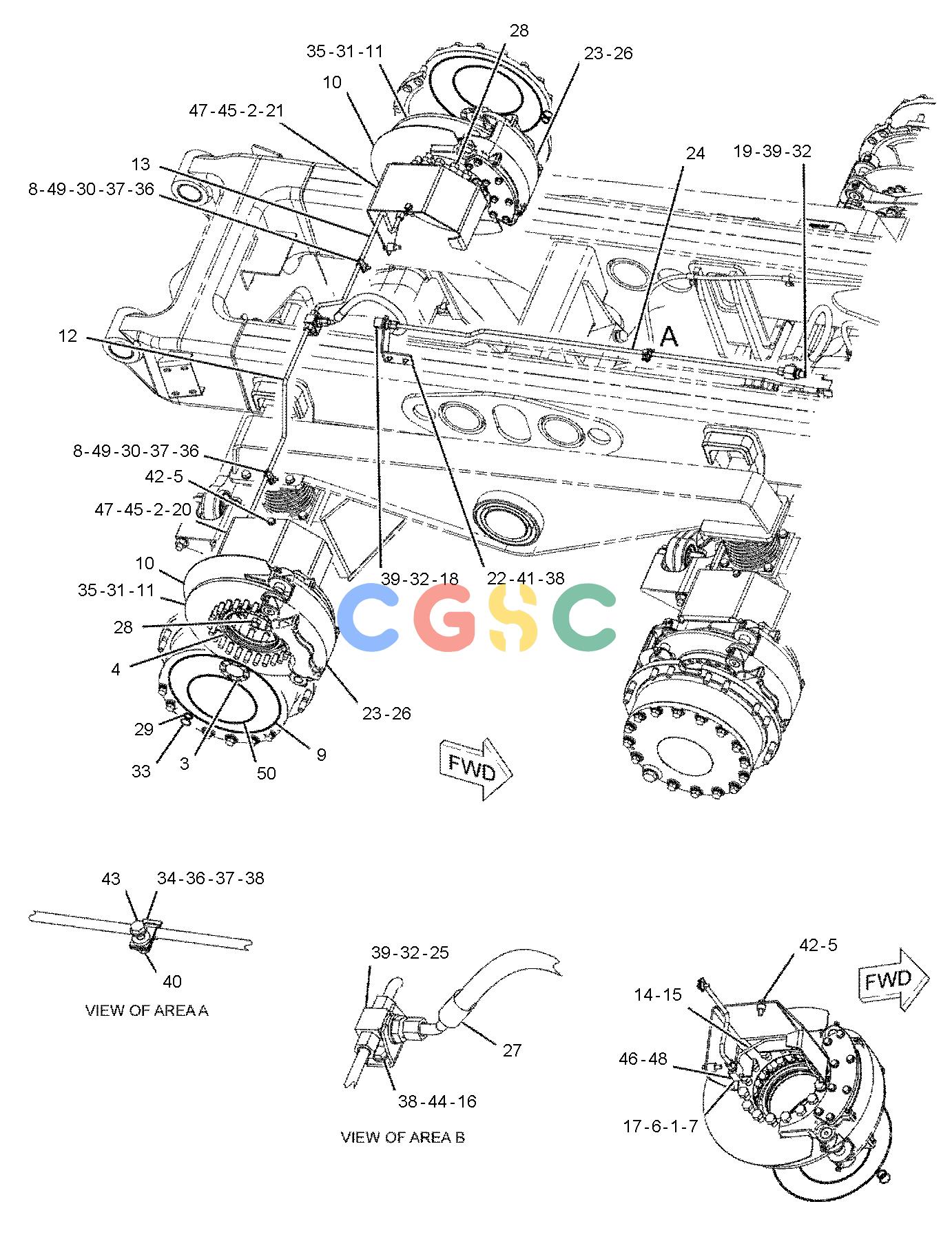

卡特零件查询（725） 253-6086: BRAKE GP-SERVICE
广数供应链运营团队, 14 02月, 2025，浏览：
660 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4991 | [2] | PLUG | |
| 2. | 2U-9526 | [2] | BOSS | |
| 3. | 2V-7390B | [2] | SHIM PACK(INCLUDES 15-SHIMS) | |
| 4. | 3T-6541 | [2] | SEAL GP-DUO-CONE | |
| 5. | 4U-3719 | [2] | BOSS | |
| 6. | 5P-8867 | [4] | INSERT-FLARED | |
| 7. | 7U-9277 | [2] | MANIFOLD | |
| 8. | 7X-0732 | [2] | WASHER-HARD(10X22.5X8-MM THK) | |
| 9. | 9X-3975 | [2] | SEAL-RING | |
| 10. | 128-5242 | [2] | COVER-DUST | |
| 11. | 138-2318 | [2] | DISC | |
| 12. | 148-2751 | [1] | TUBE AS | |
| 13. | 148-2752 | [1] | TUBE AS | |
| 14. | 176-5690 | [1] | TUBE AS | |
| 15. | 176-8111 | [1] | TUBE AS | |
| 16. | 148-5170 | [1] | BRACKET | |
| 17. | 148-8340 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 18. | 148-8375 | [1] | ELBOW AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 19. | 148-8427 | [1] | TEE AS | |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 20. | 148-9559 | [1] | GUARD(RH) | |
| 21. | 148-9560 | [1] | GUARD(LH) | |
| 22. | 150-3908 | [1] | BRACKET | |
| 23. | 159-7596Y | [2] | BRAKE GP-SERVICE | |
| 24. | | [1] | TUBE AS |
| 25. | 169-4273 | [1] | TEE AS | |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 7X-7715 | [1] | TEE | |
| 26. | 195-9464 | [2] | SPACER-SPECIAL(3.5-MM THK) | |
| 27. | 198-0968I | [1] | HOSE AS | |
| 28. | 1D-4609 | [32] | BOLT(3/4-10X3-IN) | |
| 29. | 5H-2767 | [2] | SEAL-O-RING | |
| 30. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 31. | 5P-8247 | [52] | WASHER-HARD(17X32X3.5-MM THK) | |
| 32. | 6V-9169 | [3] | NUT(13/16-16-THD) | |
| 33. | 7M-8485 | [2] | SEAL-O-RING | |
| 34. | 7X-0575 | [1] | WASHER-HARD(10.2X22.5X5-MM THK) | |
| 35. | 8S-9092 | [52] | BOLT(5/8-11X2.25-IN) | |
| 36. | 8T-1885 | [3] | CLIP(SLOT) | |
| 37. | 8T-1886 | [3] | CLIP(TAB) | |
| 38. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 39. | 8T-4123 | [4] | WASHER(3.62X5.75X0.375-MM THK) | |
| 40. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 41. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 42. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 43. | 8T-4186M | [1] | BOLT(M10X1.5X40-MM) | |
| 44. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 45. | 8T-4194M | [2] | BOLT(M12X1.75X50-MM) | |
| 46. | 8T-4197M | [2] | BOLT(M8X1.25X40-MM) | |
| 47. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 48. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 49. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 50. | 9X-3969 | [2] | SEAL-RING | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
