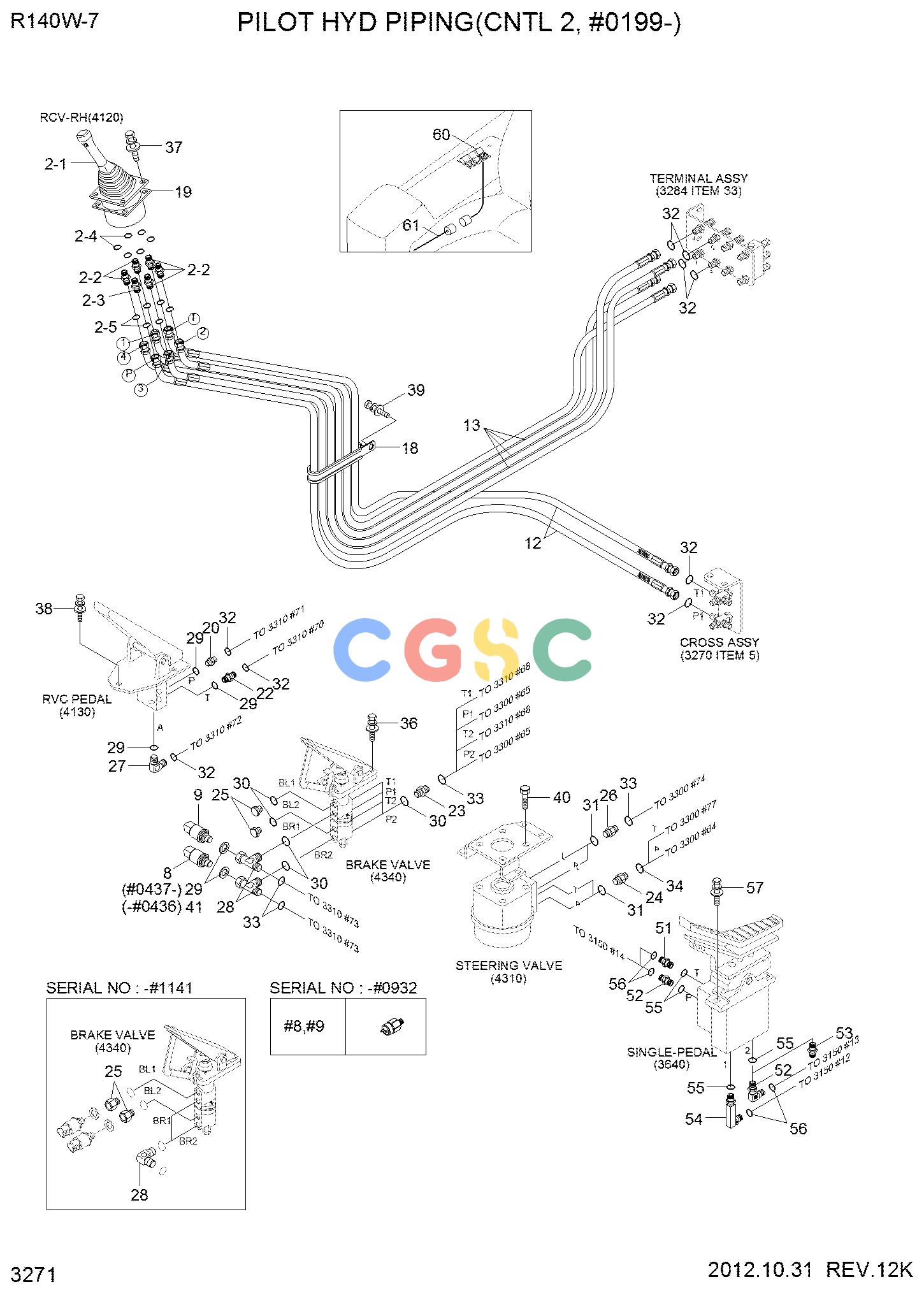

现代零件查询R140W-7 PILOT HYD PIPING(CNTL 2, #0199-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
277 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
PILOT HYD PIPING
|
|
| 2. |
31N6-25210
|
[1] |
RCV SUB ASSY-RH
|
|
| 2-1. |
31N6-20071
|
[1] |
RCV LEVER-RH
|
|
| 2-2. |
X500-110001
|
[5] |
CONNECTOR-ORFS
|
|
| 2-3. |
S631-011004
|
[6] |
O-RING
|
|
| 2-4. |
31N6-25060
|
[1] |
FILTER-LAST GUARD
|
|
| 2-5. |
S621-011001
|
[6] |
O-RING
|
|
| 8. |
31N4-30250
|
[1] |
SWITCH-PRESSURE
|
|
| 8. |
31N4-31250
|
[1] |
SWITCH-PRESSURE
|
|
| 8. |
31N4-30160
|
[1] |
SWITCH-PRESSURE
|
|
| 8. |
31NA-30160
|
[1] |
SWITCH-PRESSURE
|
|
| 9. |
31L7-40030
|
[1] |
SWITCH-PRESSURE
|
|
| 9. |
31L7-41030
|
[1] |
SWITCH-PRESSURE
|
|
| 9. |
31Q4-40560
|
[1] |
SWITCH-PRESSURE
|
|
| 9. |
31Q4-40840
|
[1] |
SWITCH-PRESSURE
|
|
| 12. |
X410-042028
|
[2] |
HOSE ASSY-ORFS 0X45
|
|
| 13. |
X410-042036
|
[4] |
HOSE ASSY-ORFS 0X45
|
|
| 18. |
31E7-0312
|
[1] |
CLAMP-HOSE
|
|
| 19. |
31M6-51061
|
[1] |
SHIM(3.2T)
|
|
| 20. |
31N6-25060
|
[1] |
FILTER-LAST GUARD
|
|
| 21. |
X511-104513
|
[2] |
CONNECTOR-LONG,ORFS
|
|
| 22. |
X500-110001
|
[1] |
CONNECTOR-ORFS
|
|
| 25. |
31EE-30061
|
[2] |
CONNECTOR
|
|
| 25. |
31N6-39130
|
[2] |
CONNECTOR-TEST
|
|
| 25. |
P220-110103
|
[2] |
PLUG-HEX
|
|
| 28. |
X520-110002
|
[4] |
ELBOW-90,ORFS
|
|
| 28. |
31Q6-30040
|
[4] |
TEE-B/TYPE,ORFS
|
|
| 29. |
S631-011004
|
[4] |
O-RING
|
|
| 29. |
S631-011004
|
[6] |
O-RING
|
|
| 32. |
S621-011001
|
[10] |
O-RING
|
|
| 35. |
S035-083526
|
[2] |
BOLT-W/WASHER
|
|
| 37. |
S035-063046
|
[4] |
BOLT-W/WASHER
|
|
| 39. |
S037-102042
|
[3] |
BOLT-W/WASHER
|
|
| 41. |
P392-120000
|
[2] |
WASHER-COPPER
|
|
| 50. |
34E7-04720
|
[1] |
PEDAL-SINGLE
|
|
| 51. |
X500-110001
|
[1] |
CONNECTOR-ORFS
|
|
| 52. |
31N6-25060
|
[1] |
FILTER-LAST GUARD
|
|
| 53. |
X520-110001
|
[1] |
ELBOW-90,ORFS
|
|
| 54. |
31N6-25110
|
[1] |
ELBOW-90,LONG
|
|
| 55. |
S631-011004
|
[4] |
O-RING
|
|
| 56. |
S621-011001
|
[4] |
O-RING
|
|
| 57. |
S037-102522
|
[2] |
BOLT-W/WASHER
|
|
